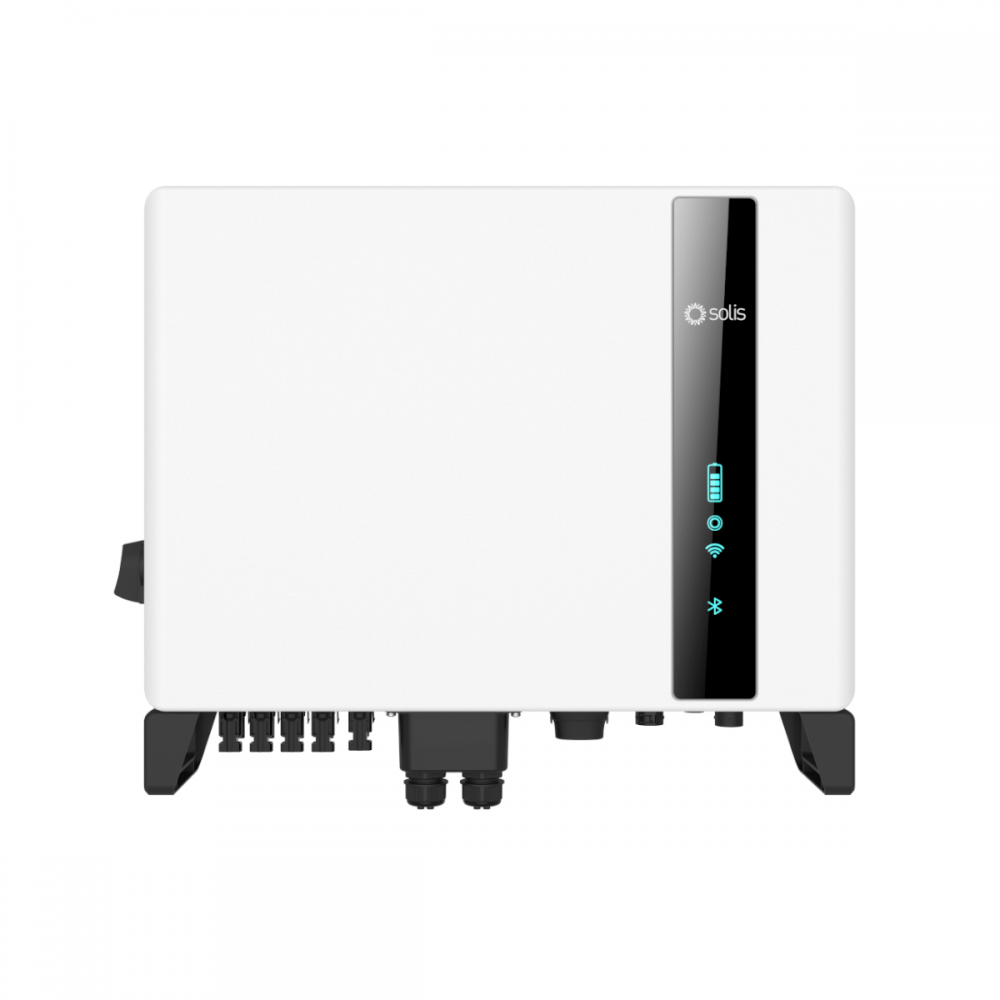

Solis S6 5-10kW 3phase Hybrid Inverter compatible with HV home batteries.

• Integrated 2 to 4 MPPTs suitable for residential rooftop installations with multiple array orientations.
• Supports unbalanced and half-wave load on the mains port and backup port.
• Supports up to 10 units in parallel on Grid and Backup. Suitable for small to medium commercial energy storage systems
• Supports pure off grid applications with generator communication support
• Multiple working modes for different usage scenarios
• Controllable and Upgadeable via the SolisCloud App to avoid site visits.
• Up to 16A MPPT current input to support 182mm/210mm solar panels
• Supports 1.6 DC:AC ratio to connect more PV capacity to the energy storage system.
• Up to 50A/10kW maximum charge/discharge with the industry's highest level of 10kW of supporting loads.
• Switching time at UPS level (<10ms) to continuously support critical loads
• High PV charging efficiency to prevent excessive PV loss
• Safety protection with integrated AFCI function, which actively detects arc faults in the PV array.
• Natural convection design with no external fans
