View larger

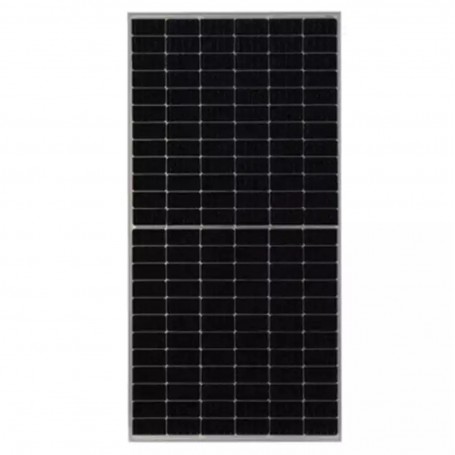

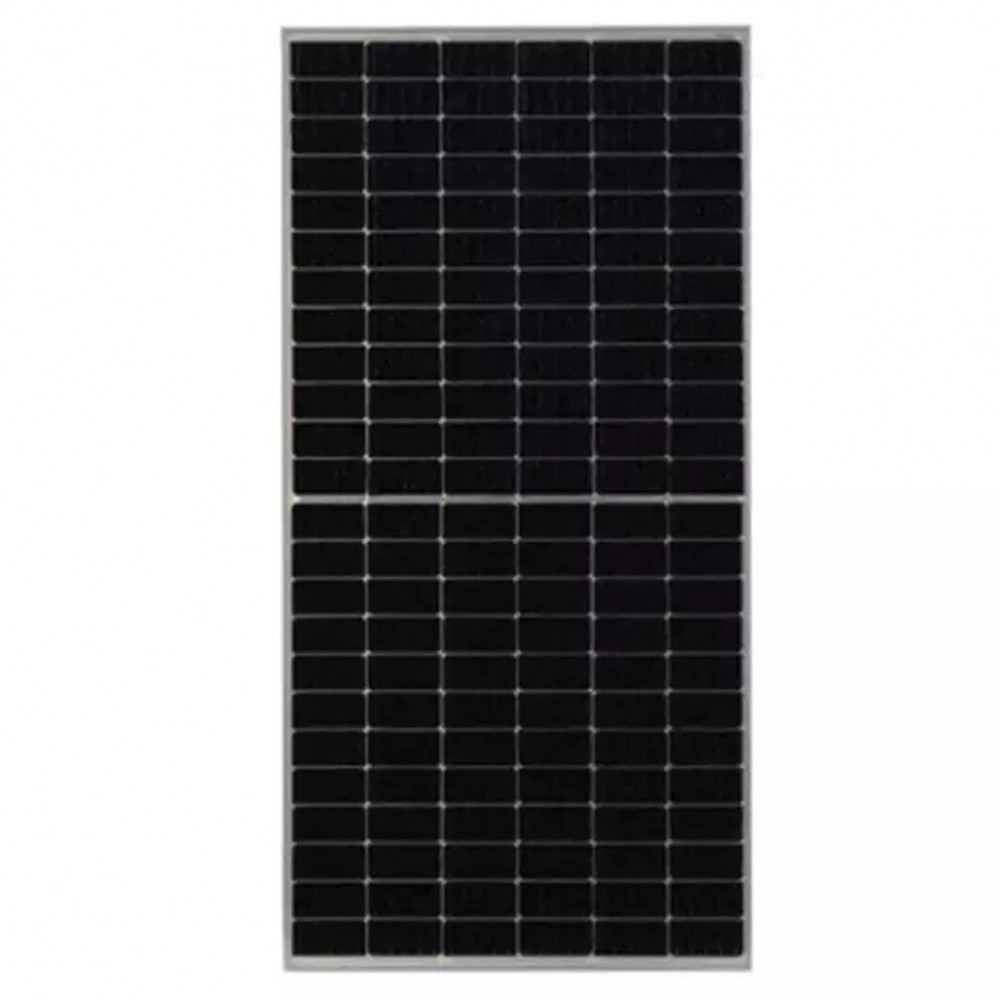

SE498
New
Note: Shipping costs must be calculated separately for this product.
Warning: Last items in stock!
Estimated availability and shipping date:
| Frame | Silver |
| Manufacturing number | JAM72D-40-600-LB-TS-MC4 |
| Solar Cells | Monocrystalline |
| No. of cells | 144 |
| PMPP-Nominal Power (W) | 600W |
| VMPP-Max-Power Voltage (V) | 43.76 |
| IMPP-Max-Power Current (A) | 13.71 |
| Voc-Open-Circuit Voltage (V) | 52.40 |
| Isc-Short-Circuit Current (A) | 14.48 |
| Efficiency | 22.70% |
| Connectivity | MC4-EVo2A |
| Junction Box Type | IP68 , 3 diodes |
| Length (mm) | 2333 |
| Height (mm) | 30 |
| Width (mm) | 1134 |
| Product warranty | 12 years |
| Product Workmanship Warranty | 12 years |
| Power output warranty | 25 years |
| Weight (g) | 32500 |
Higher energy generation - better LCOE.
N-type with very low LID.
Better response in low light conditions.
Better temperature coefficient.
Comes with a 12-year product warranty and a 30-year linear power warranty.
Segen Solar is an authorized reseller for JA Solar, see the letter in the documents section.
Due to the size of the panels and the size of the space between the pallet slats (both length and width entry), a forklift is required on site to unload these modules. In Germany, this module may only be installed on building-independent solar systems in publicly inaccessible areas with a height of up to 3m.
This product must be installed by a qualified electrician/technician. All installations must comply with local wiring regulations and standards. SegenSolar is not liable for product failures due to incorrectly installed systems.
