Solis is one of the most experienced and largest manufacturers of solar inverters. The range consists of 1 and 3 phase PV inverters and hybrid and retrofit systems, so that a suitable solution can always be found for both residential and commercial roofs.

For more information and product details please download the available information on our website. (see above)

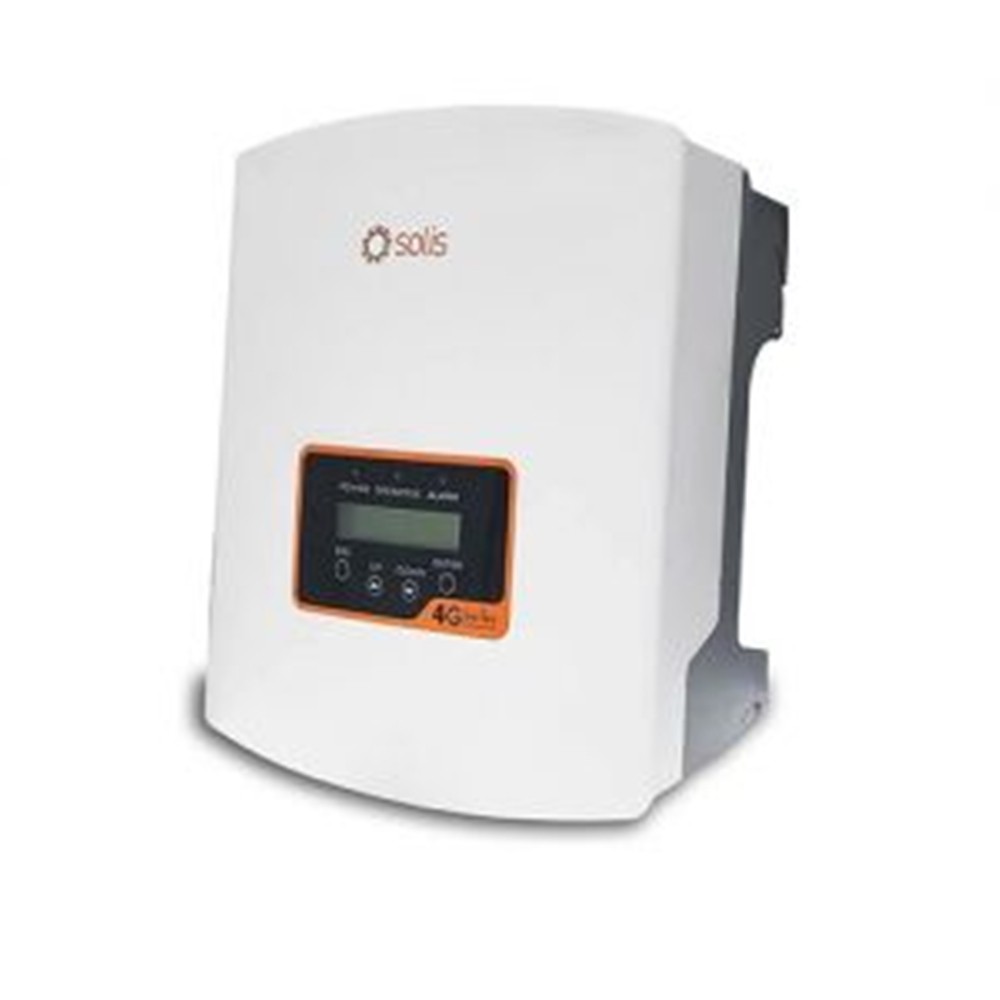

The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.

Product Features
Super high frequency switching technology with maximum efficiency of 96.6%
Max PV Power of 1.5kW
DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
Intergrated Export Power Manager (EPM)
Integrated AFCI (DC arc-fault circuit protection)
Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
5-year standard warranty

Manufacturer product number: S6-GR1P1K-M-DC
Weight: 7.4 kg
Rated power: 1W
Min PPT voltage: 60 V
Max PPT voltage: 500V
DC Startup voltage: 60 V
DC Shutdown voltage: 50 V
Max input voltage: 600 V
Max DC Power: 1,500W
Max AC Power (5 Minutes): 1,100 W
Surge AC Power (1 Second): 1,100 W
Max DC Current: 14 A
Max DC Inputs: 1
Has DC Fuses: 0
Connector: MC4
Included Connectors: 1
Euro Efficiency: 95.3%
Transformer: None
MPPT Quantity : 1
Integrated DC switch?: Yes
Warranty: 5 years
