Sale! SolarEdge, Solar Edge SE8K 3-phase NET, 3 phase inverters, SE119 View larger

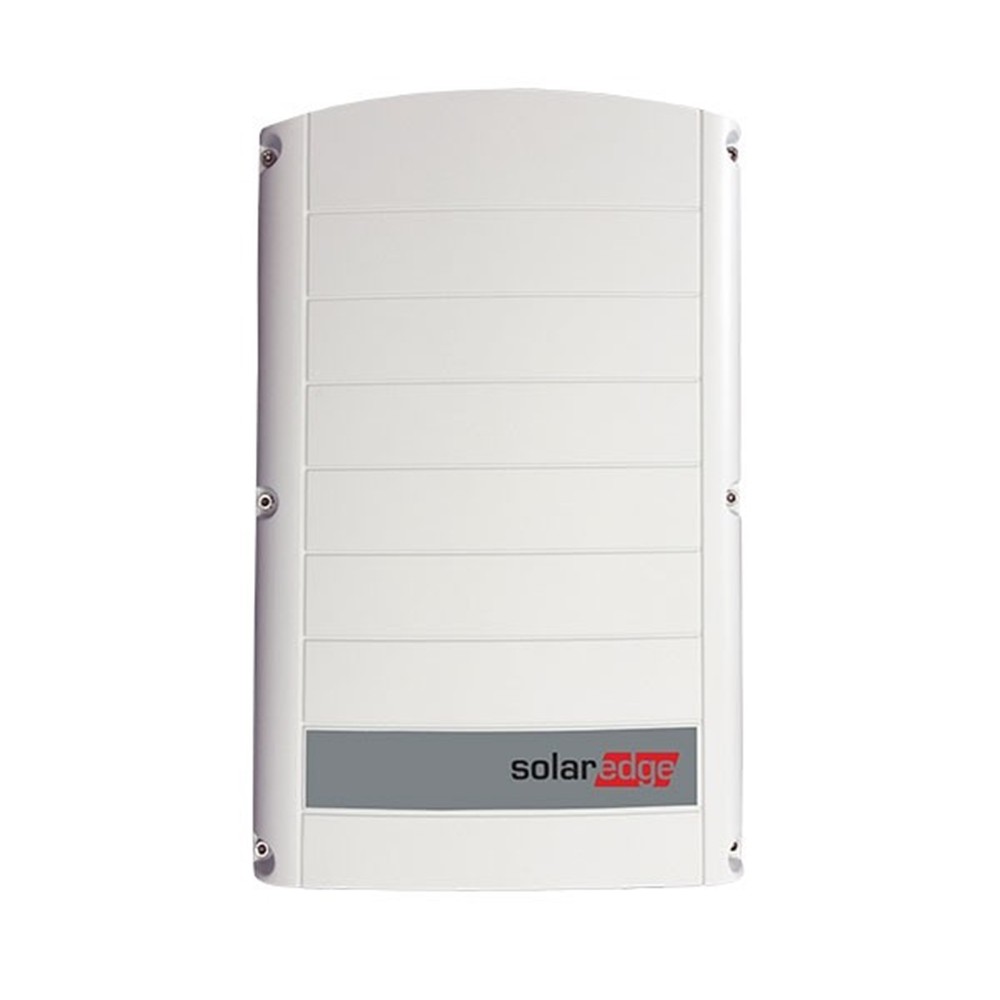

Solar Edge SE8K 3-phase NET

SE119

New

Download

Data sheet

Style 3-phase inverter
Manufacturing number SE8K-RW0TEBEN4

More info

Specially designed to work with power optimizers
Superior efficiency (98%)
Small, the lightest of its kind and easy to install
Built-in panel-level monitoring system
Internet connection via Ethernet or wireless
IP65 – Installation both outdoors and indoors
Fixed working voltage, DC/AC conversion only
Optional integrated DC safety unit - eliminates the need for external DC switches (SE25k and 27.6k only)
Optional DC surge protection and DC fuses (SE25k and 27.6k only)

Manufacturer product number: SE8K-RW0TEBEN4
Weight: 16.4 kg
Rated power: 8,000 W
Min PPT voltage: 750 V
Max PPT voltage: 900V
DC Startup voltage: 0 V
DC Shutdown voltage: 0 V
Max input voltage: 900 V
Max DC Power: 10,800W
Max AC Power (5 Minutes): 7,000 W
Surge AC Power (1 Second): 7,000 W
Max DC Current: 13.5A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 4
Euro Efficiency: 97.4%
Transformer: None
MPPT Quantity : 0
Integrated DC switch?: Yes
Warranty: 12 years
