Solis is one of the most experienced and largest manufacturers of solar inverters. The range consists of 1 and 3 phase PV inverters and hybrid and retrofit systems, so that a suitable solution can always be found for both residential and commercial roofs.

For more information and product details please download the available information on our website. (see above)

Solis Series 6 is the latest generation of residential grid-connected inverters from Solis. This series of inverters are leading in affordable small residential rooftop installations.

Maximum string input current 14A
Easy installation: Integration with export power control function and DRM function.
Max. Return more than 97.7% European return more than 97.1%
Wide input voltage range for better generation and short start-up time
Double MPPT design with precise MPPT algorithm
Built-in export restriction - CT clamp required (sold separately)
Integrated AFCI (DC arc fault circuit protection)
Rated IP66
With built-in DC switch

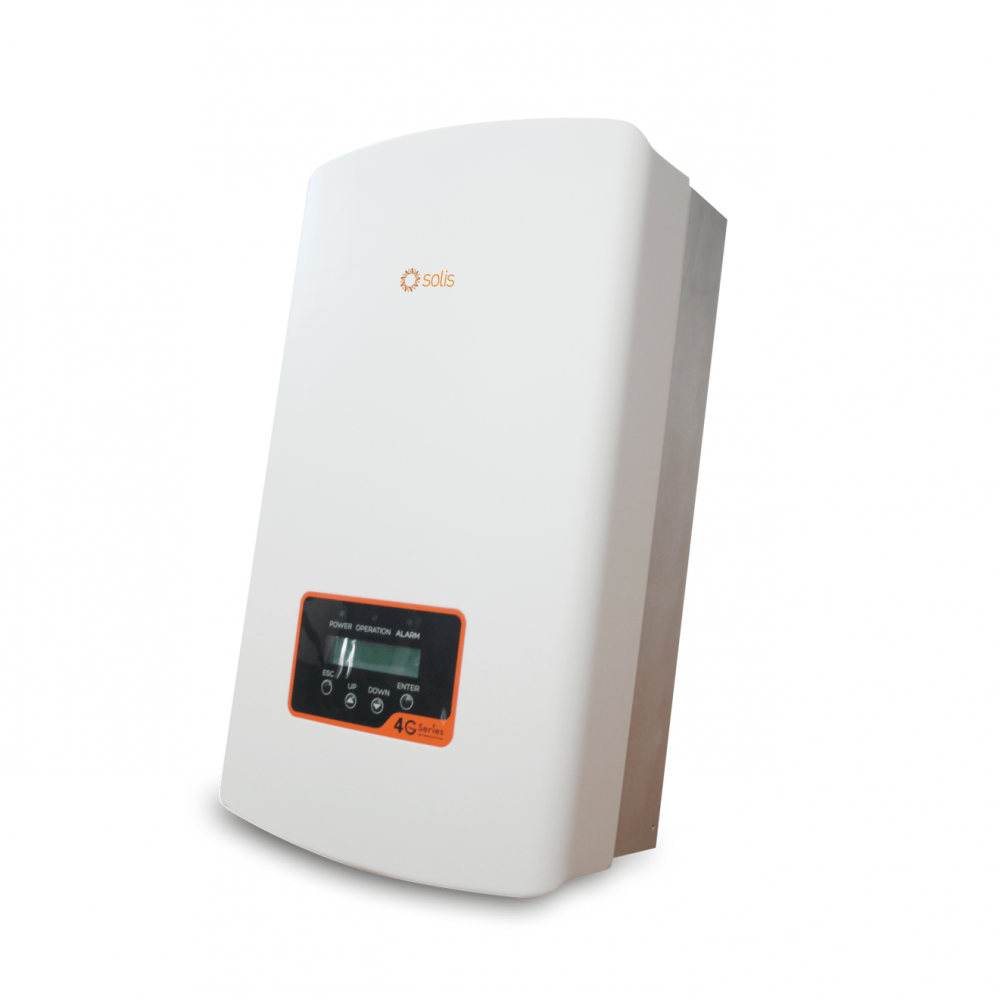

Manufacturer product number: S6-GR1P4K-DC
Weight: 12 kg
Rated power: 4,000 W
Min PPT voltage: 90 V
Max PPT voltage: 520V
DC Startup voltage: 120 V
DC Shutdown voltage: 90 V
Max input voltage: 600 V
Max DC Power: 6,000W
Max AC Power (5 Minutes): 4,400 W
Surge AC Power (1 Second): 4,400 W
Max DC Current: 28 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 4
Euro Efficiency: 97.1%
Transformer: None
MPPT Quantity: 2
Integrated DC switch?: Yes
Warranty: 5 years
