View larger
SL489
New
Pre-order! Be the first in line to receive this product. When item is on stock we will serve the already placed orders first.
Warning: Last items in stock!
Estimated availability and shipping date:
| Made in | China |
| Manufacturing number | Dyness-DL5.0C |
| Special freight | Yes |

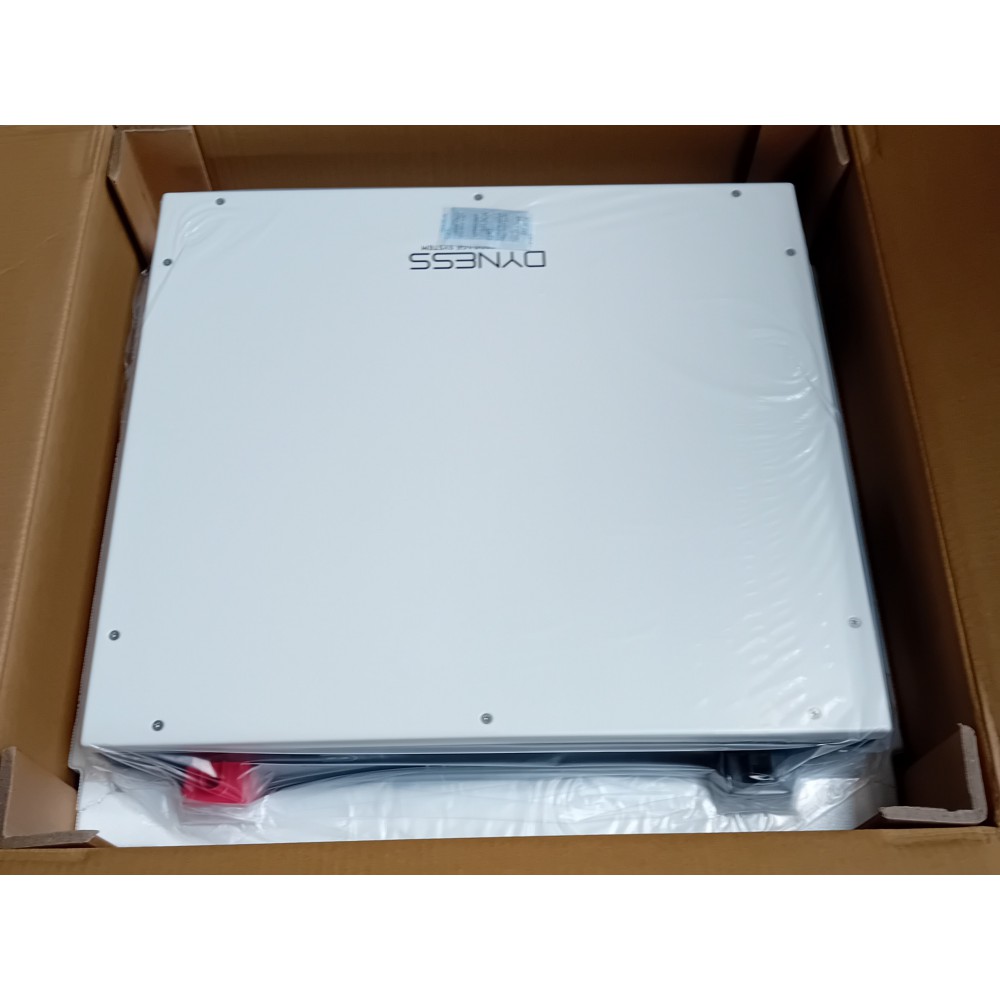

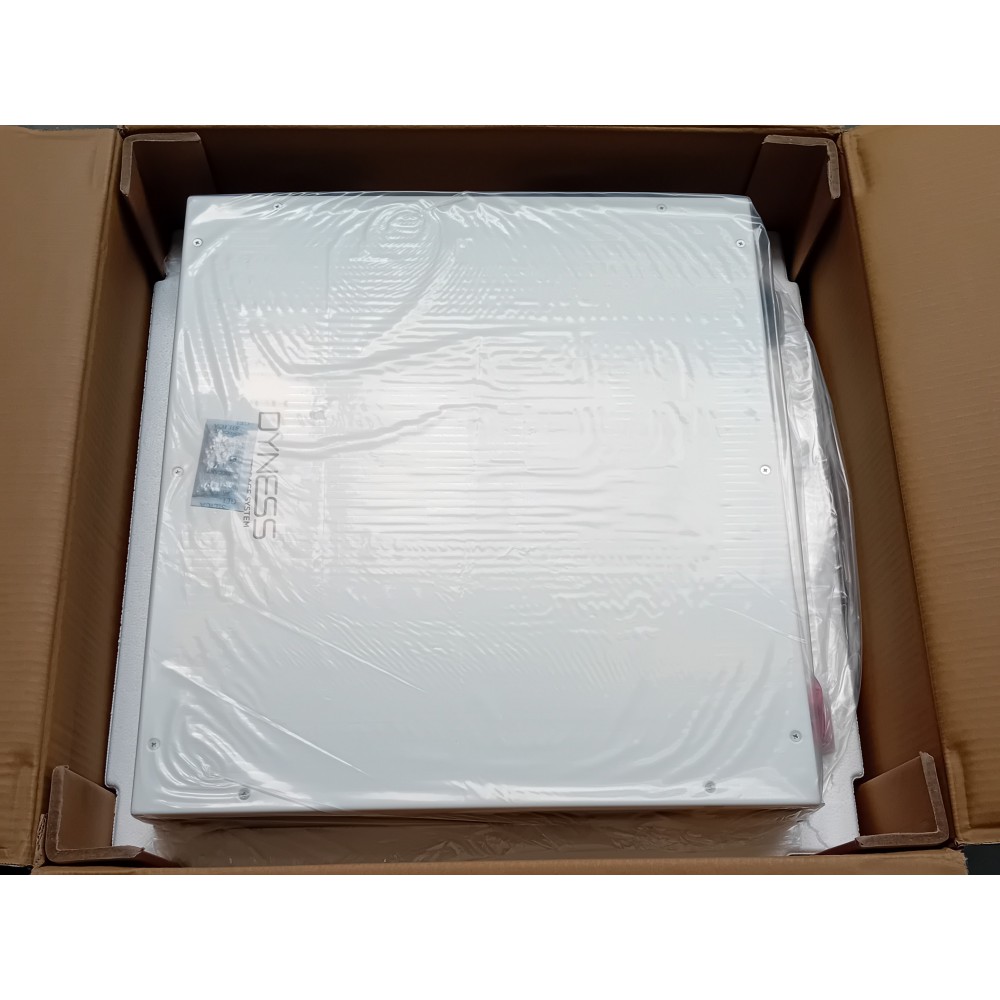

DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
Model DL5.0C
Battery Type:LiFePO4
Nominal Battery Energy:5.12 kWh
Nominal Capacity:100Ah
Nominal Voltage:51.2V
Operating Voltage:44.8 ~ 57.6V
Recomended Charge & Discharge C Rate:0.5C
Maximum Discharge C rate:1C
Recommended Charge/Discharge Current:50A
Max. Power Charge/Discharge Current:Charge 75A/Discharge 100A
Peak Power Charge/Discharge Current:110A (15s)
Depth of Discharge (DOD):90%
Net Weight:54 kg
Dimension[W*D*H]:558*545*150 mm
Charging Temp. Range:0~55°C/-20~55°C (with heating function)
Discharging Temp. Range:-20~55℃
Communication:CAN/RS485/RS232
Cycle Life[1]:≥6000 Cycles
Protection Level:lP20
Expansion:up to 50 units in parallel
Pros:Can be used in both off-grid and hybrid setups, compact design
