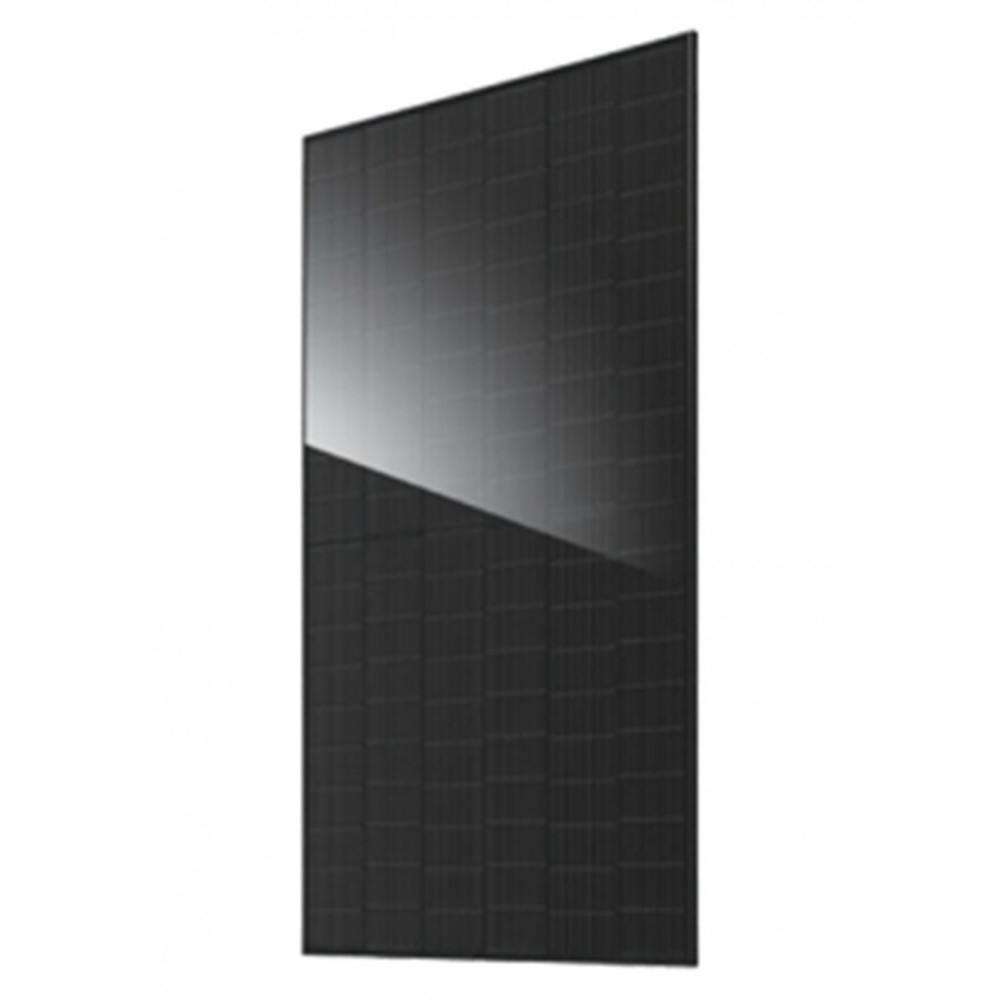

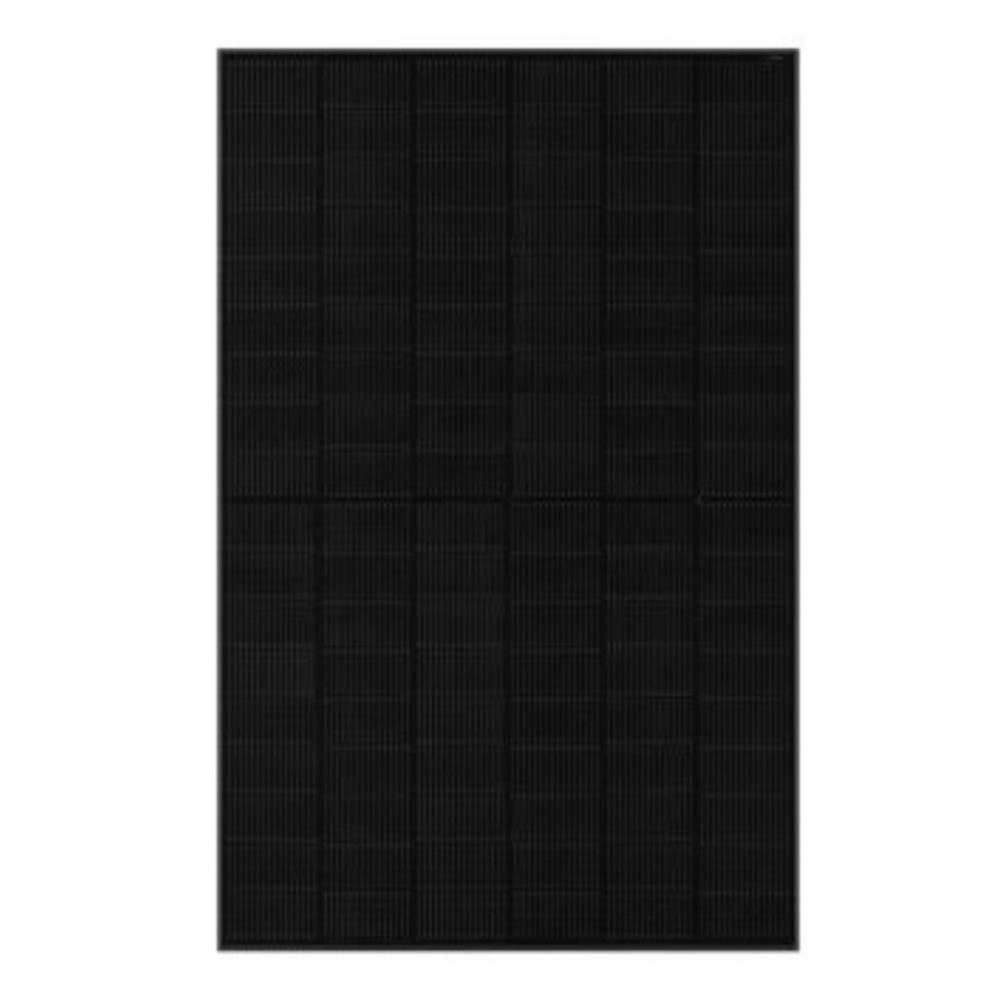

JA Solar 500W N-type Bifacial Double Glazing Mono LB All Black MC4

SE499

New

Notes: This item is NOT sold individually; pallets only. Pallet contents: 36 units.

More details

Download

(If the downloaded document needs to be translate in another language: https://translate.google.com/?sl=auto&op=docs )

Data sheet

Frame Black
Manufacturing number JAM60D-41-500-LB-TS-AB-MC4
Solar Cells Monocrystalline
No. of cells 120
PMPP-Nominal Power (W) 500W
VMPP-Max-Power Voltage (V) 36.91
IMPP-Max-Power Current (A) 13.55
Voc-Open-Circuit Voltage (V) 43.85
Isc-Short-Circuit Current (A) 14.22
Efficiency 22.60%
Connectivity MC4-EVo2A
Length (mm) 1953
Height (mm) 30
Width (mm) 1134
Product warranty 12 years
Product Workmanship Warranty 12 years
Power output warranty 25 years
Weight (kg) 27.30

More info

Premium Cells
n-Bycium+ 16BB MBB half-cell technology
Up to 26% cell conversion efficiency

Premium modules
Higher power, better LCOE
Better temperature coefficient
n-type with very low LID
Better response at low irradiance

Warranty
Product: 12 years
Performance: 30 years
