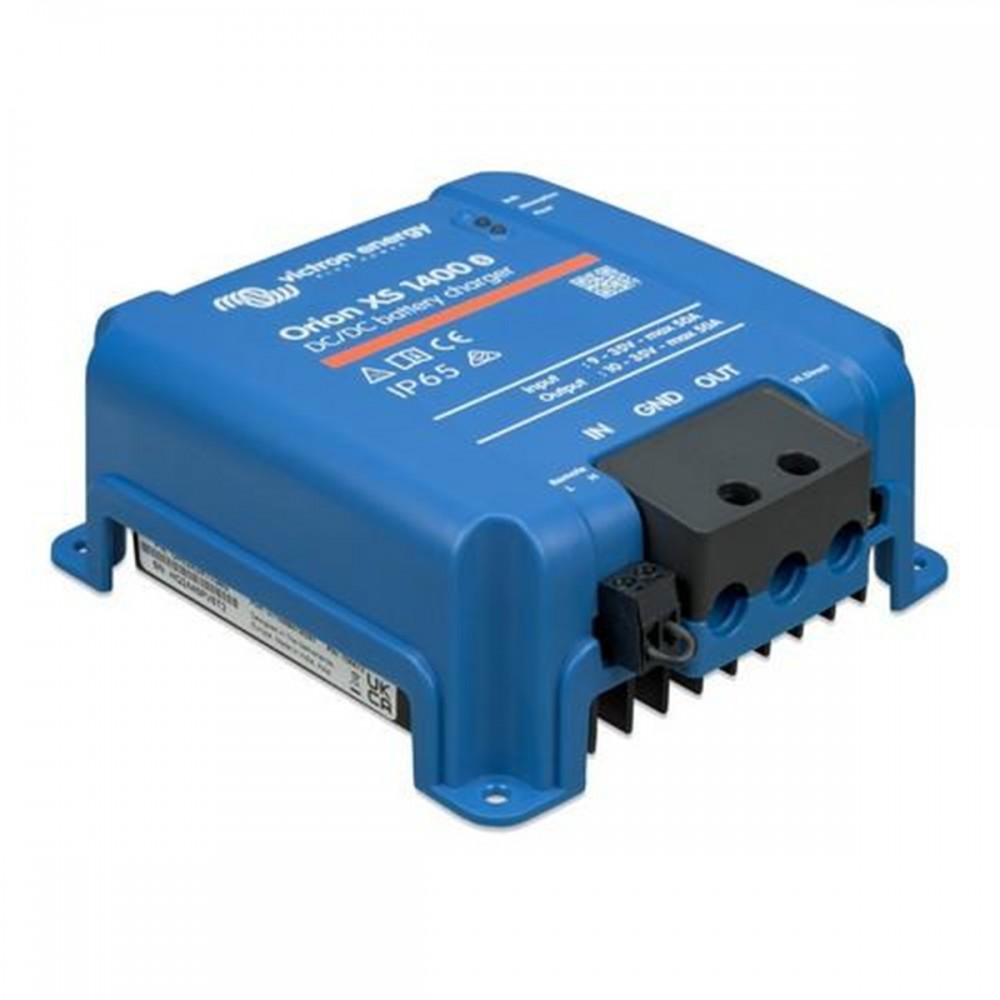

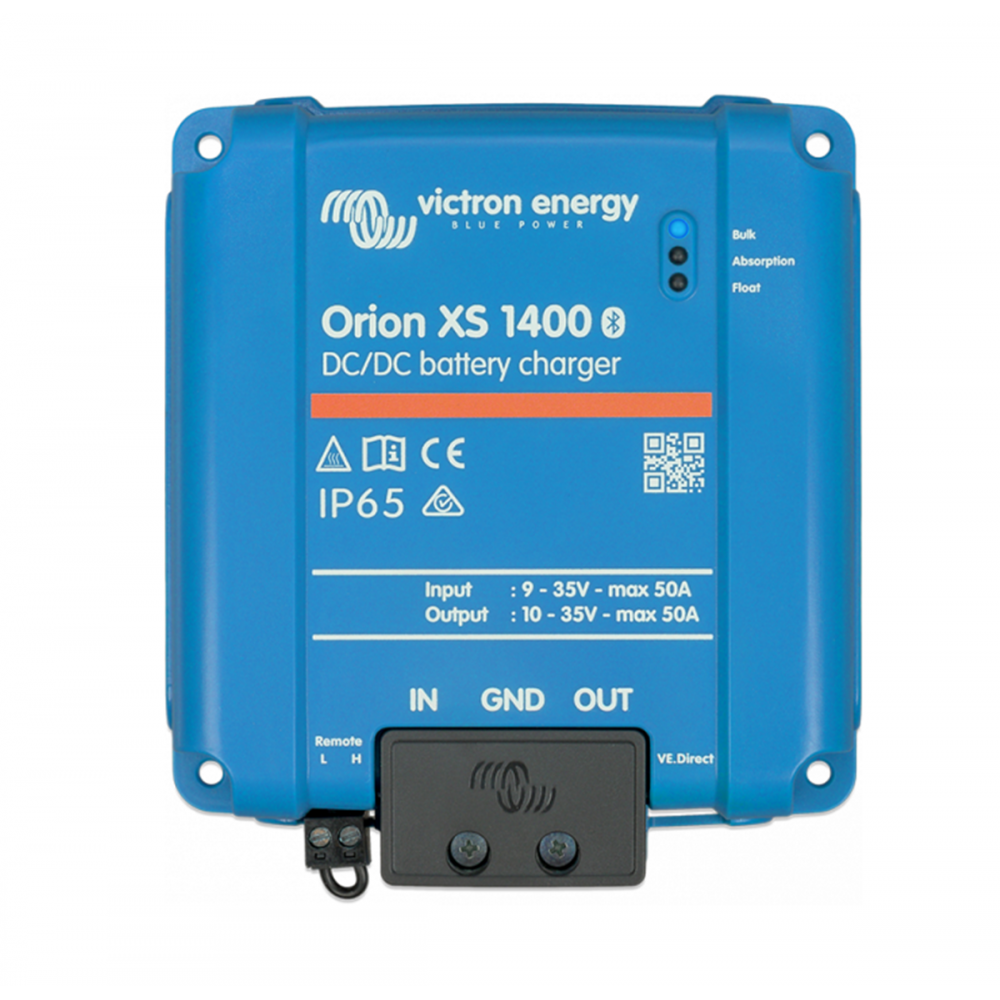

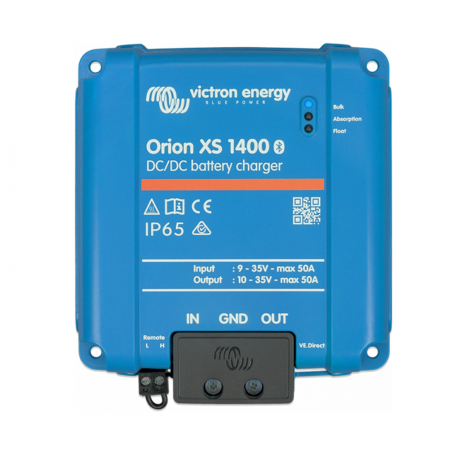

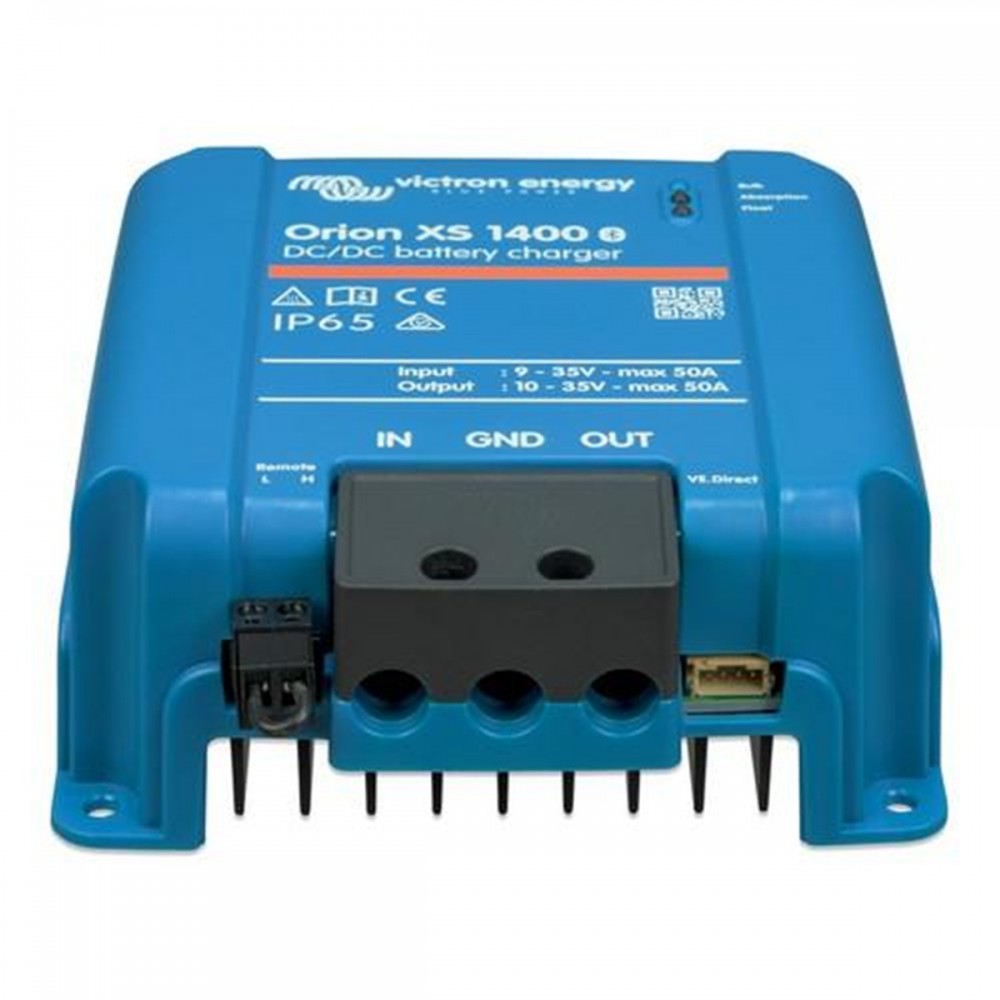

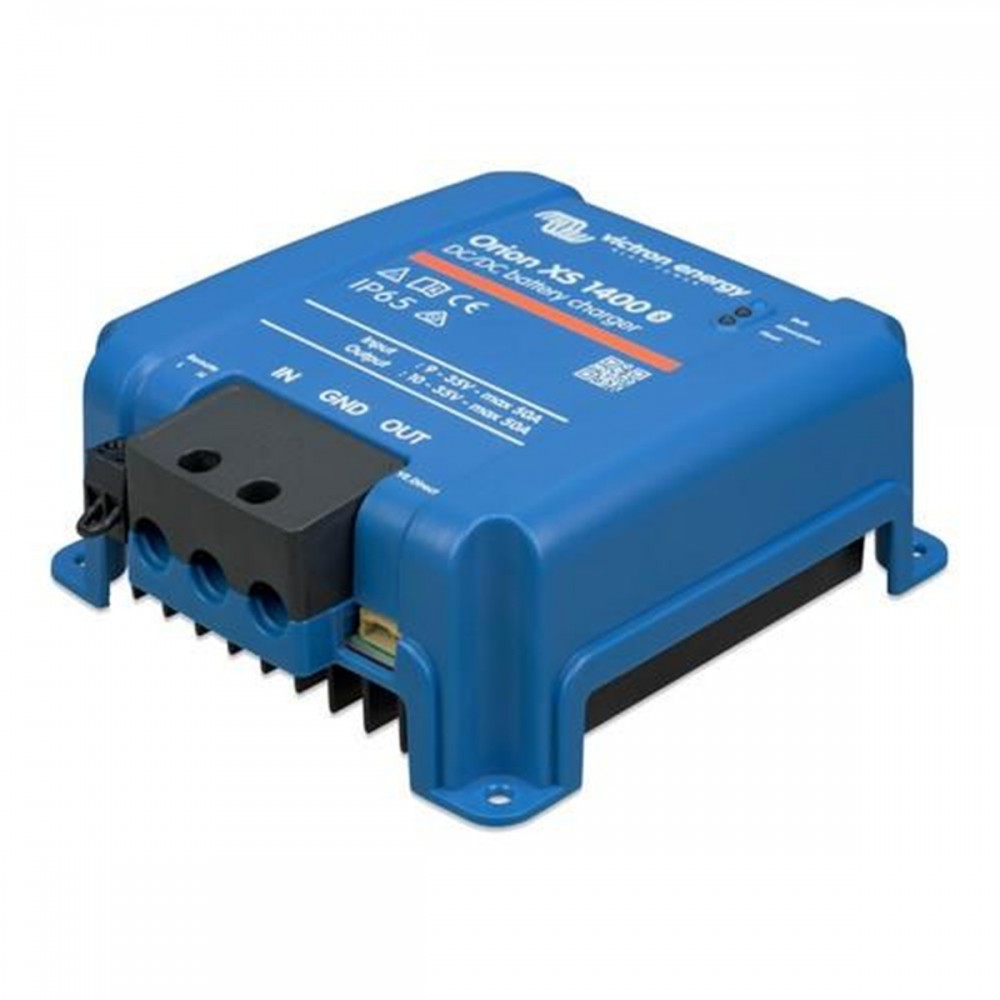

Engineered from the ground up, the Orion XS redefines adaptive DC-DC battery charging. For use in dual battery systems charged with an (intelligent) alternator. This device not only ensures top-tier performance but also guarantees the safety of your system.
The Orion XS serves as a DC-DC battery charger or as a power supply, offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge.

Adjustable charging current
The charge current is adjustable with a minimum step size of 0.1 A. via VictronConnect.

Smart alternator compatibility
An integrated mechanism detects whether the engine is running (engine shutdown detection), which only activates the charger when the alternator supplies power. This ensures that the charger only draws power when the alternator is supplying power, i.e. when the engine is running.

Adaptive 4-stage charge algorithm
For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged. The Orion XS includes fully programmable charging algorithms and eight pre-programmed battery settings.

Low temperature shutdown and input undervoltage protection
To prevent damage of lithium batteries the charger will turn off automatically at low temperatures. It will also shut down when the input voltage drops below a configurable lockout value and restart when the input voltage rises above the restart value, this to protect the input source ie. starter battery from deep discharge.

Remote on/off
The Orion XS can be switched on and off remotely via the remote on/off connector. Typical applications include wiring a switch or Battery Management System (BMS).

Comprehensive electronic protection
The protections includes overload, short circuit and excessive temperatures. The charger is protected against overtemperature by reducing the output power when the maximum product temperature is reached.

Can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

Bluetooth Smart enabled
Built-in Bluetooth Smart: The wireless solution to change settings, monitor activities and update the Orion XS software using Apple and Android smartphones, tablets or other devices.

IP65 protection
The Orion XS complies with ingress protection rating IP65. This means the product is dust-tight and protected against heavy rain.
