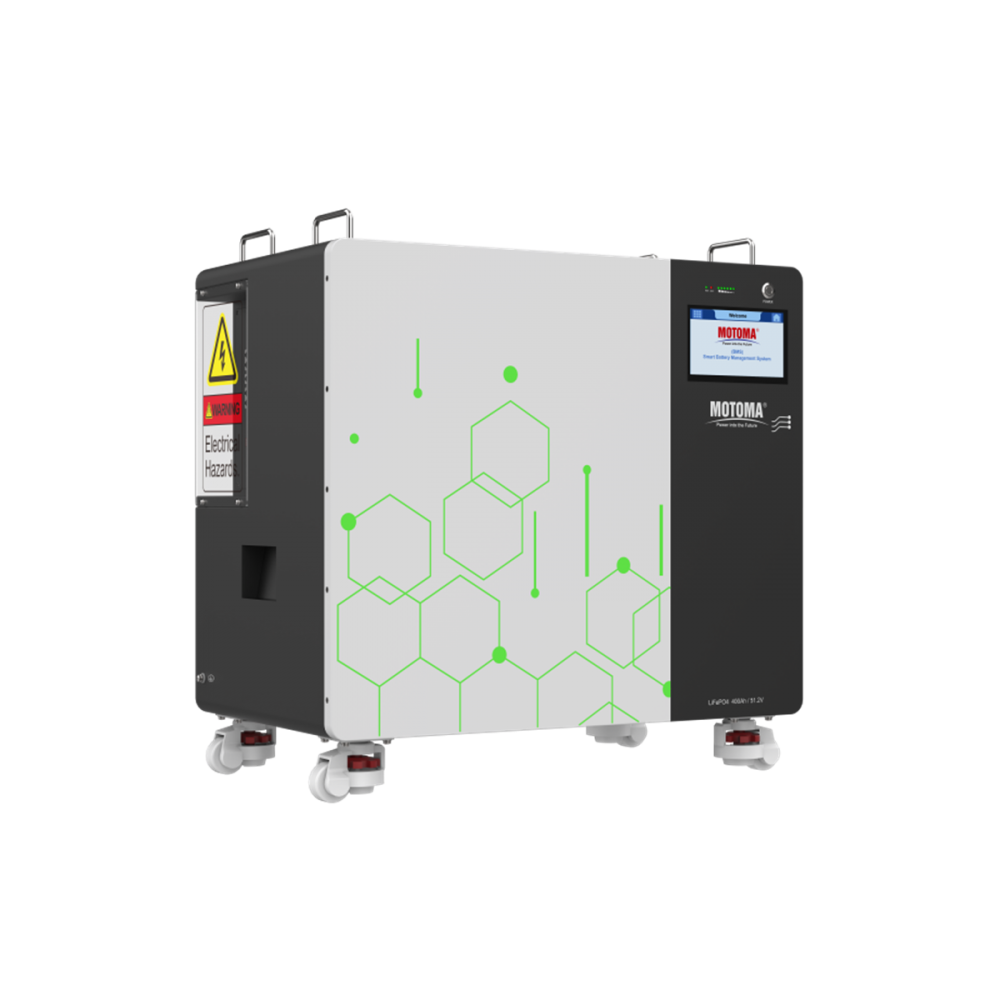

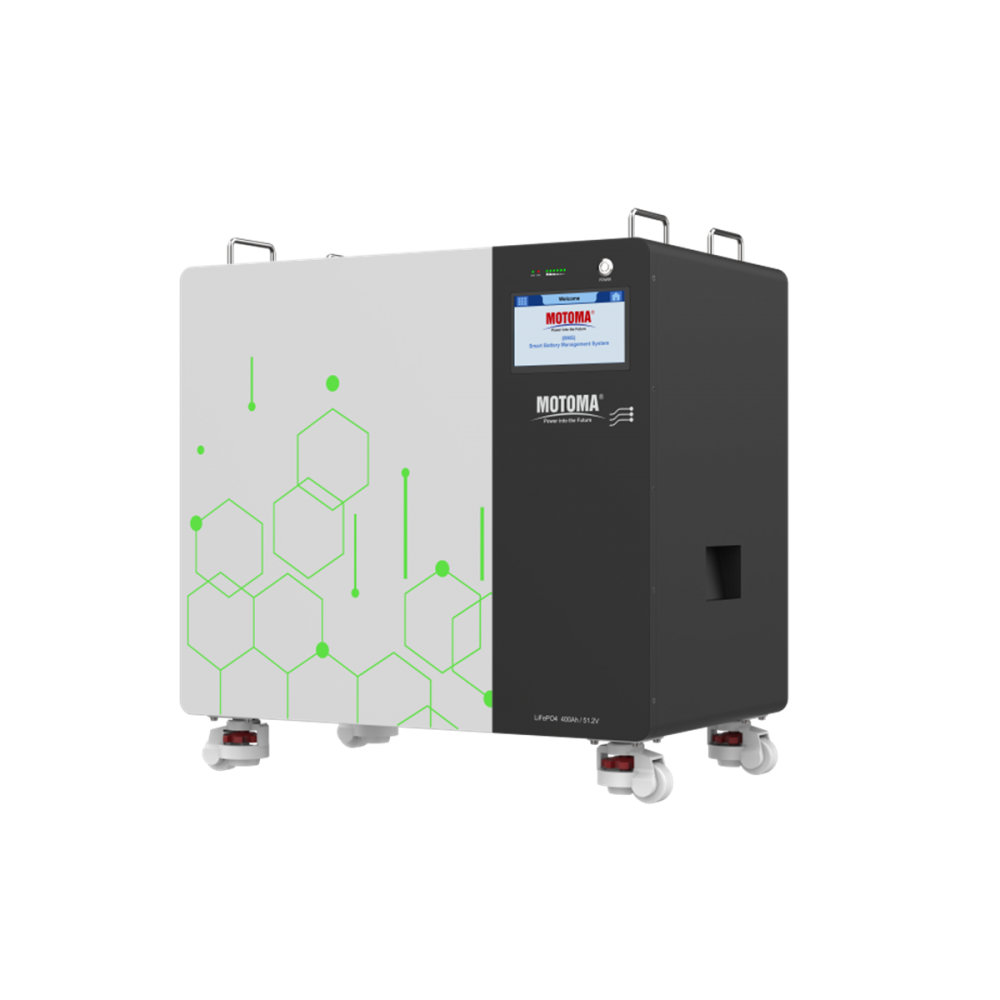

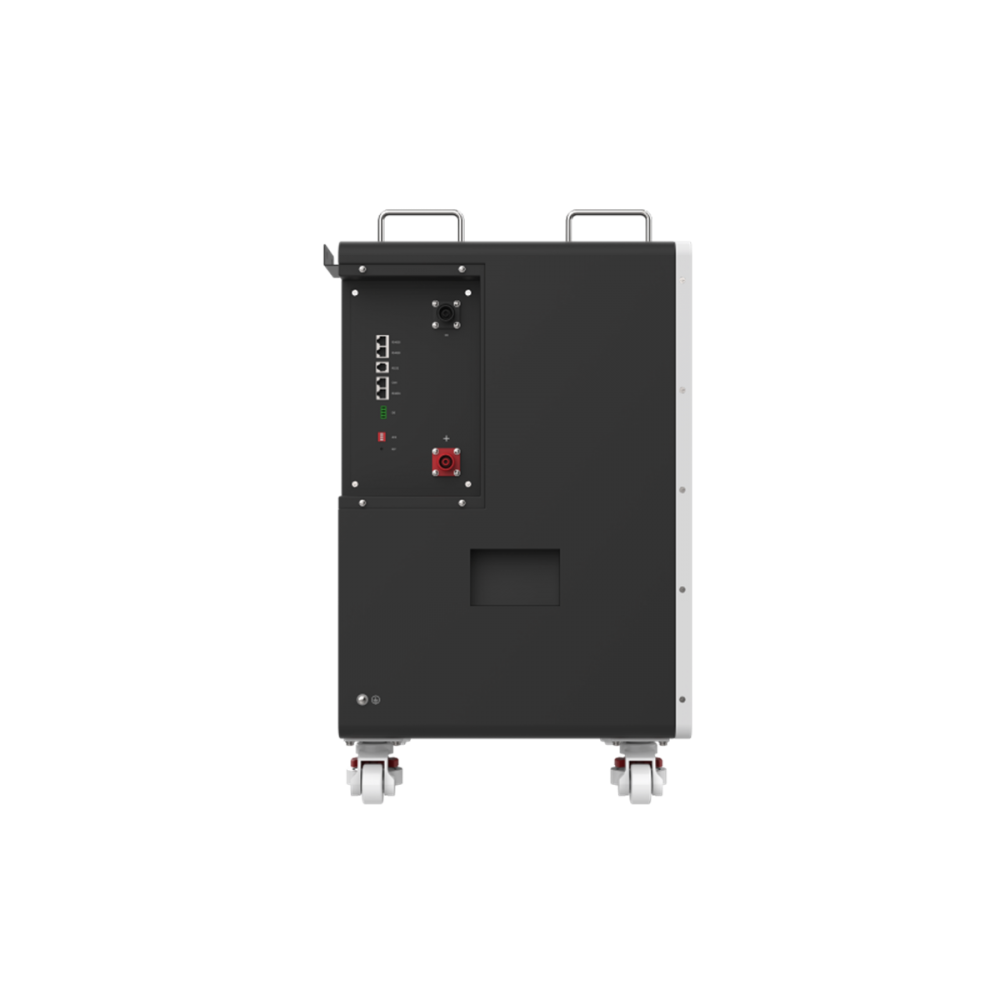

MOTOMA M series LiFePO4 battery designed with 15 years or more service life for general purpose, which designed with advanced technology, built in intelligent BMS for more safe, with SOC design and communication protocol to match up with different brand inverters. Also MOTOMA can supply customized upper computer software for BMS communication via RS232 to set parameters or read monitoring data.

Main Features:
With SOC design.
Support remote monitoring.
Support monitoring by the inverter app.
Support high power discharge.
Smaller, lighter, and longer life.

Battery Advantages:
Top A grade cells, passed UL1973 test
Long cycle life
High efficiency output power: >96%
Low self-discharge batteries.
With intelligent BMS protection, more safe.
Small size, light weight (30% of size / weight of lead acid batteries)
Eco-friendly batteries.

Application:
Power Generation System ( Solar or Wind Power )
Household Energy Storage System
Auto Control System & ATM Machine
Electronic Apparatus and Equipment
Emergency Light & Emergency Backup
Power Supply & Alarm / Security System
Communication Power & DC Power
Electric Power System (EPS)
Uninterruptable Power System (UPS)

Battery Parameters:
Battery model number M91 PRO
Nominal voltage 51.2V
Nominal capacity 400Ah
Power capacity 20.48KWH
Cycle Life ≥ 8000 cycles @80% DOD
Operating volt. Range 43.2V-58.4V
Max. charging current 200A
Max. discharging current 200A
End voltage of charge 58.4V
Dimension (L x W x H) 615*720*435mm
Unit weight 185kg
Communication CAN/RS232/RS485
Module parallel Support up to 15 packs
BMS protection Support
Charging temperature range 0~45oC
Discharging temperature range -20~60oC
