Solar Edge 66.6K Synergy Manager FUSE DC Switch

SE113

New

Download

Data sheet

Type Manager System
Wattage 66.6kW

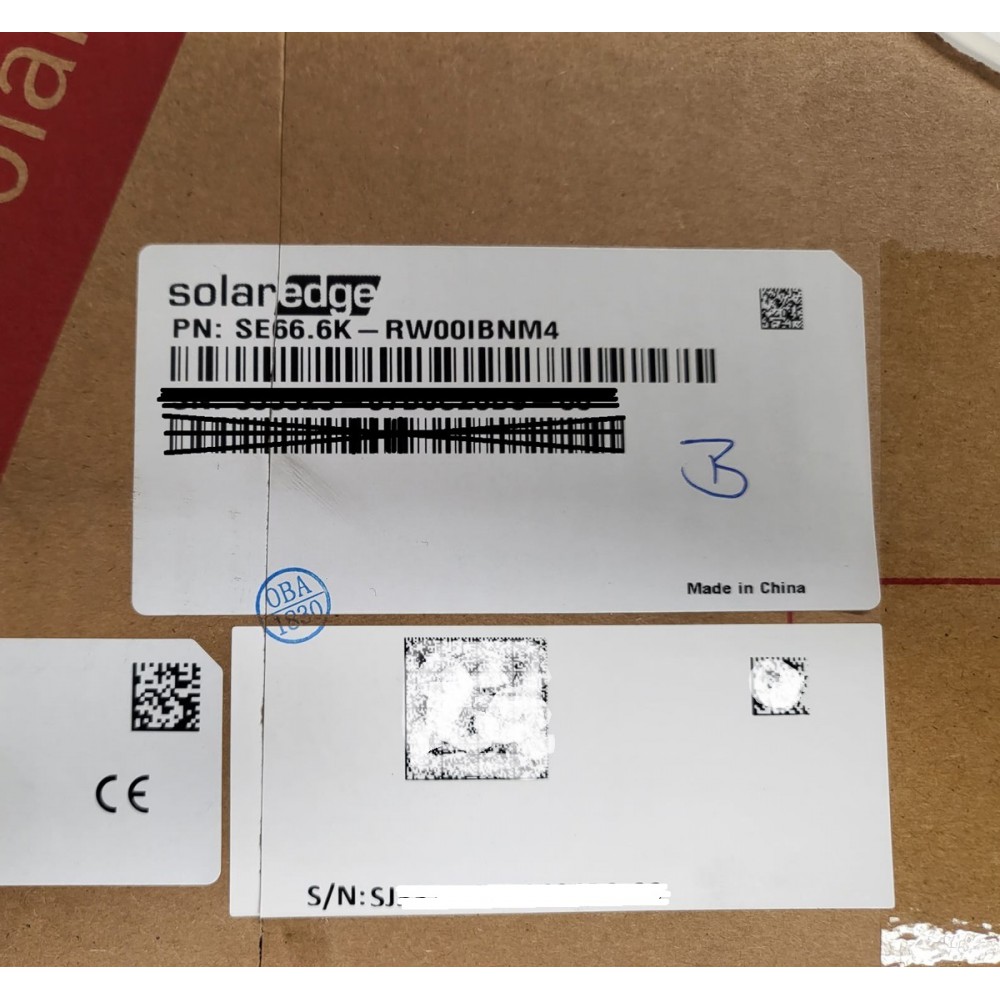

Manufacturing number SE66.6K-RW00IBNM4

More info

Three Phase Inverter with Synergy Technology for Europe SolarEdge SE50K / SE66.6K / SE90K / SE100K
Powered by unique pre-commissioning process for rapid system installation

Pre-commissioning feature for automated validation of system components and wiring during the site installation process and prior to grid connection

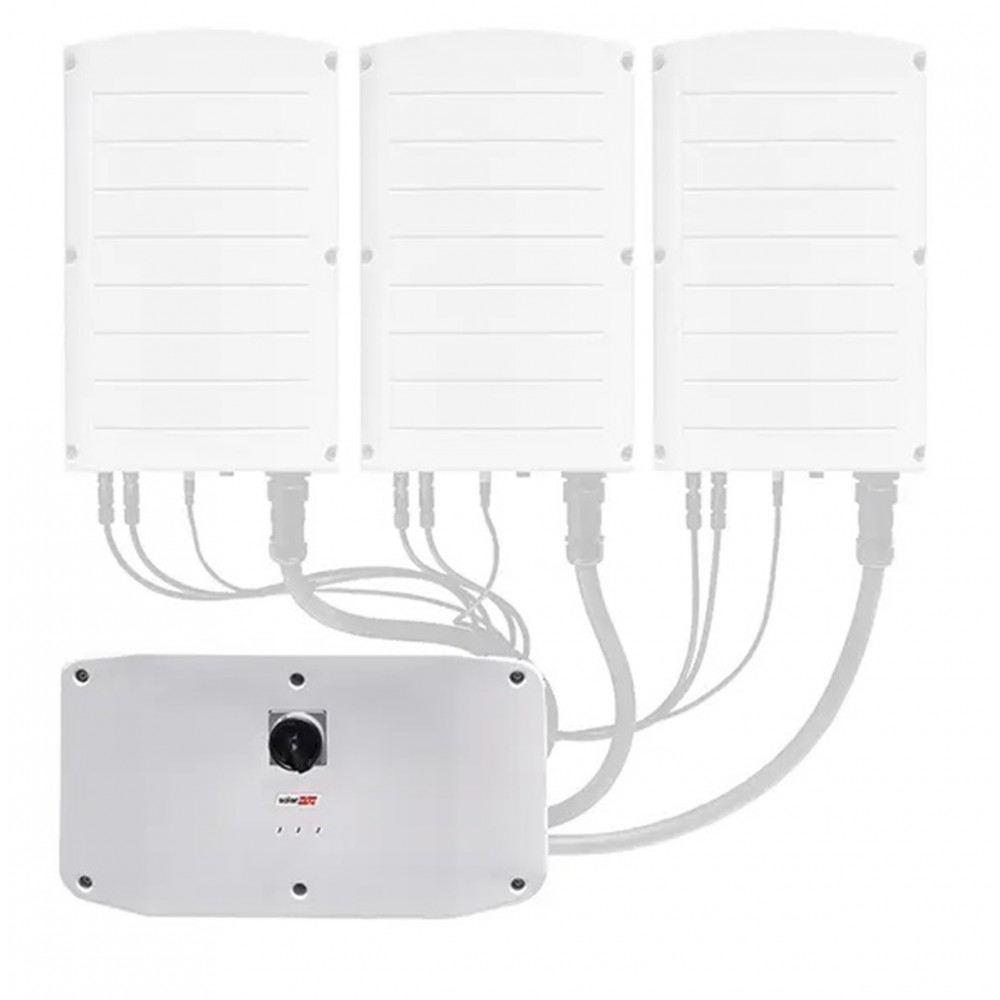

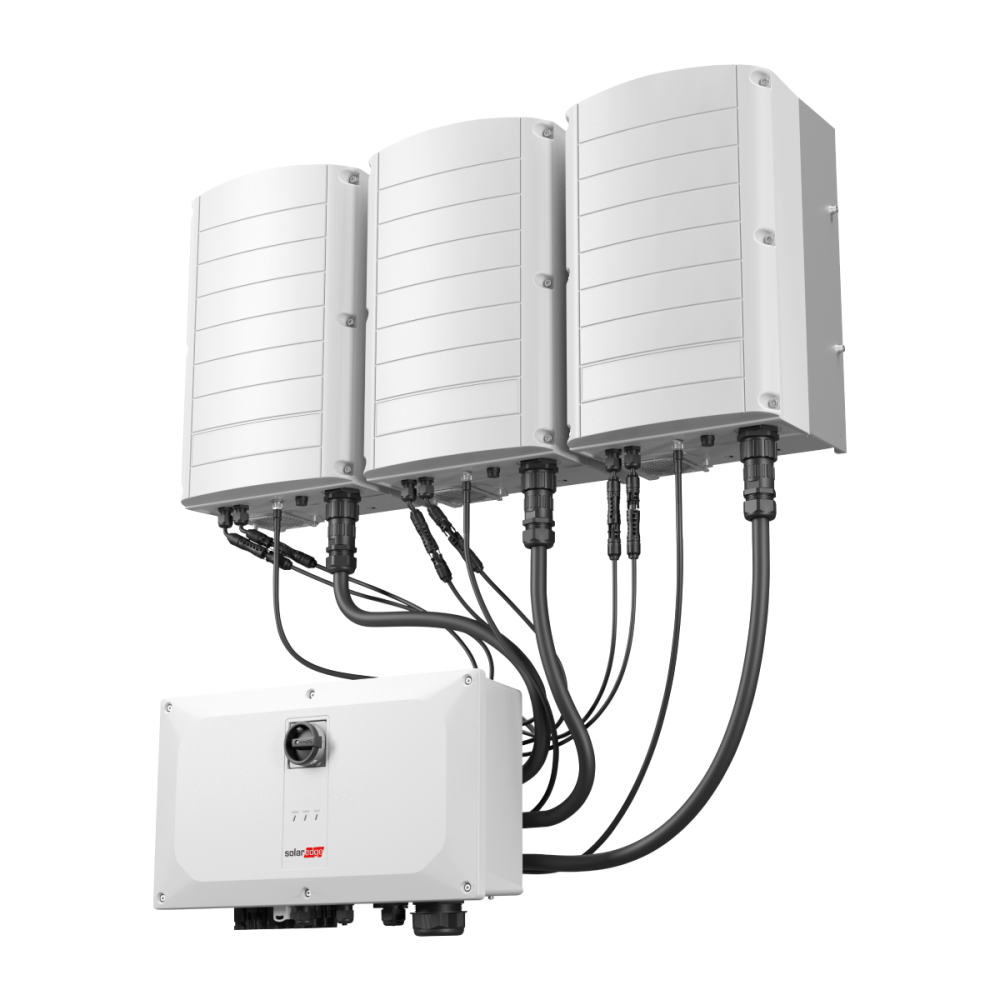

Easy 2-person installation with lightweight, modular design (each inverter consists of 2 or 3 Synergy Units and one Synergy Manager)
Independent operation of each Synergy Unit enables higher uptime and easy serviceability
Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety
Built-in arc fault protection and optional rapid shutdown
Built-in PID mitigation for maximized system performance
Monitored* and field-replaceable surge protection devices, to better withstand surges caused by lightning or other events: integrated RS485 and Type 2 DC SPDs, optional Type 2 AC SPD
Optional integrated DC safety switch eliminates the need for external DC isolators
Built-in module-level monitoring with Ethernet or cellular communication for full system visibility
Manufacturer Product Number: SE66.6K-RW00IBPC4 (66.6K)
