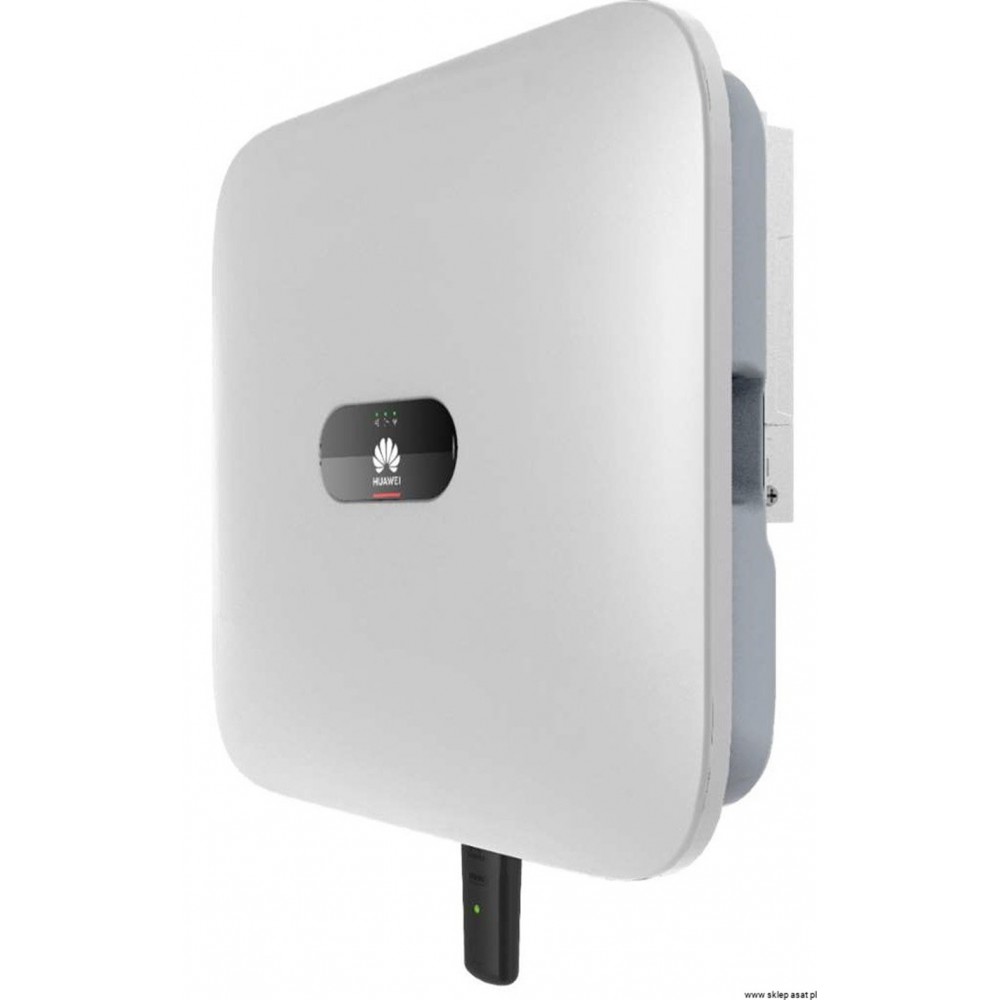

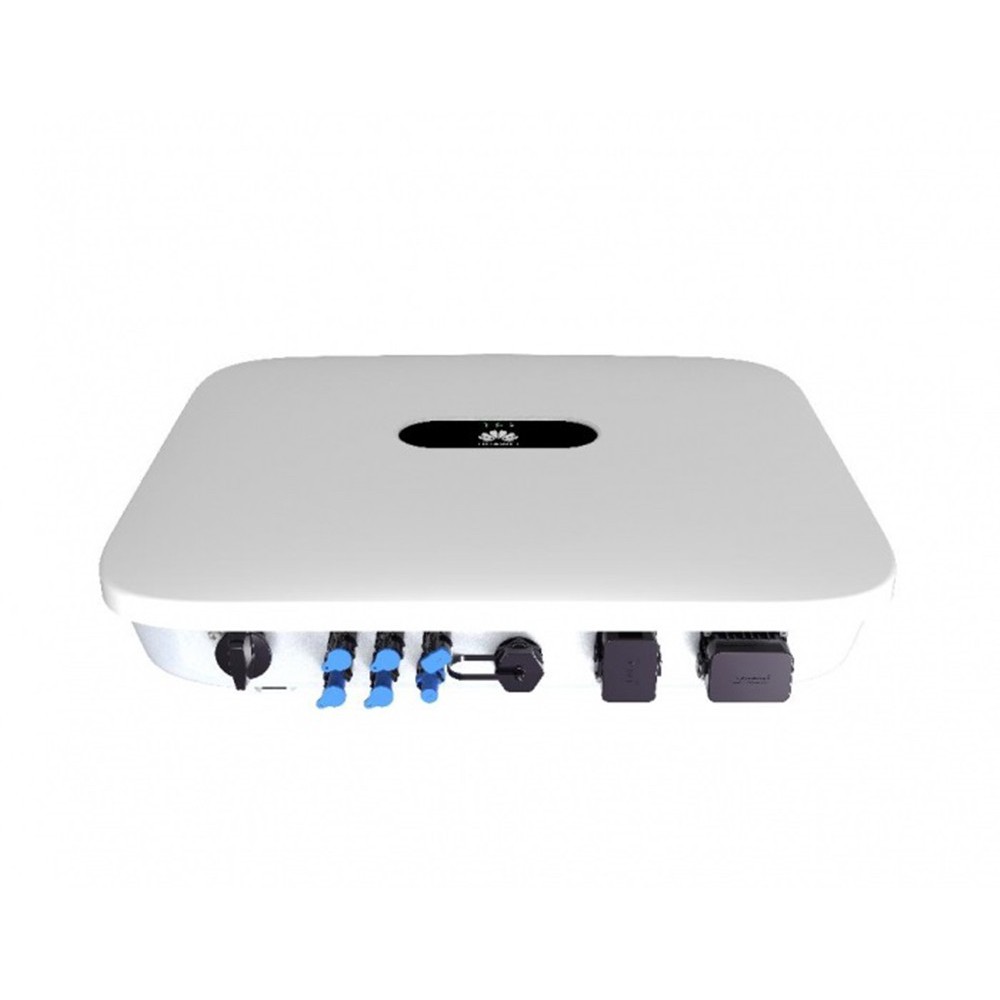

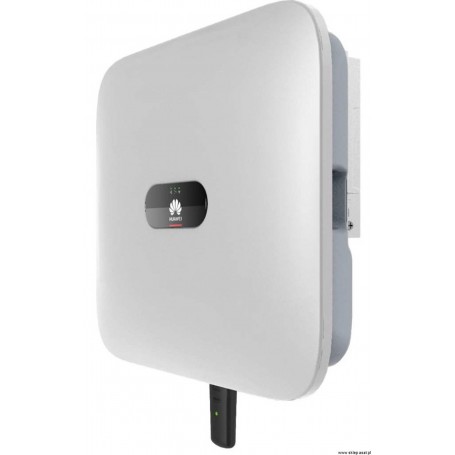

Huawei SUN2000 5KTL 3 phase M1 Hybride

SE052

New

Download

Data sheet

Type Hybrid Inverter
Style 3-phase inverter
Wattage 5kW
Manufacturing number SUN2000-5KTL-M1

More info

Wide range of PV inputs
2 x MPPT Inputs
1 inverter with three-phase output
High voltage battery input
Type II AC and DC Surge Protection
Arc Fault Detection
Integrated PID Recovery
Compatible with Huawei Smart ESS battery 5KWh to 30KWh

Manufacturer product number: 01074467-001
Weight: 17 kg
length: 0.02 m
Rated power: 4,000 W
Min PPT Overvoltage: 200 V
max. PPT voltage: 980 V
DC start-up voltage: 200 V
DC trip over voltage: 140 V
Maximum input voltage: 1,100 V
Maximum DC power: 10,000 W
max. AC power (5 minutes): 4,000 W
Peak current (1 second): 4,400 W
Maximum DC Current: 22 A
Max DC Inputs: 2
Has DC fuses: 0
Connection: Amphenol H4
Connectors included: 2
Euro efficiency: 97.5%
Transformer: HF
MPPT Quantity: 2
Integrated DC switch?: Yes
Warranty: 5 years
