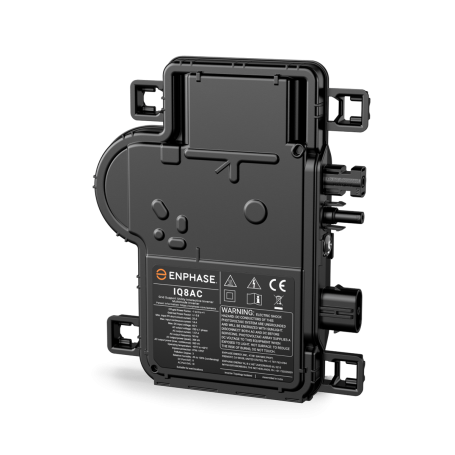

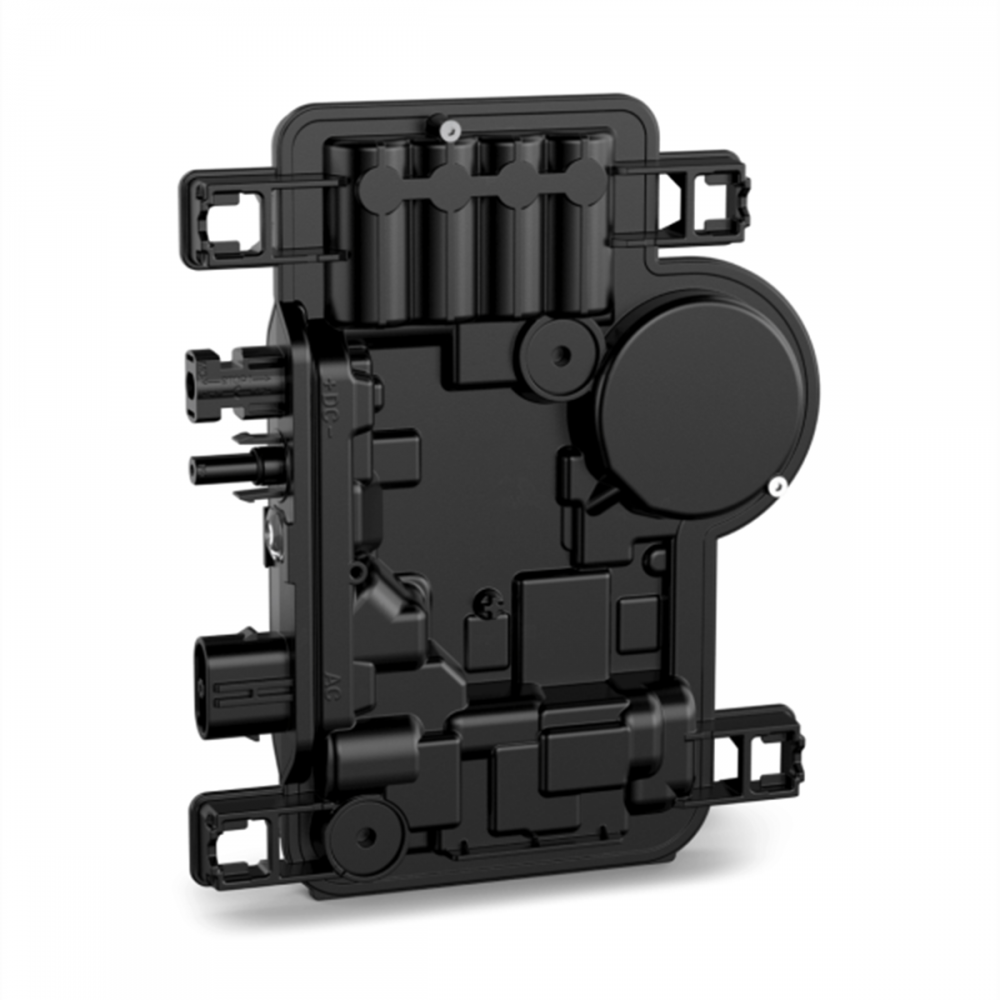

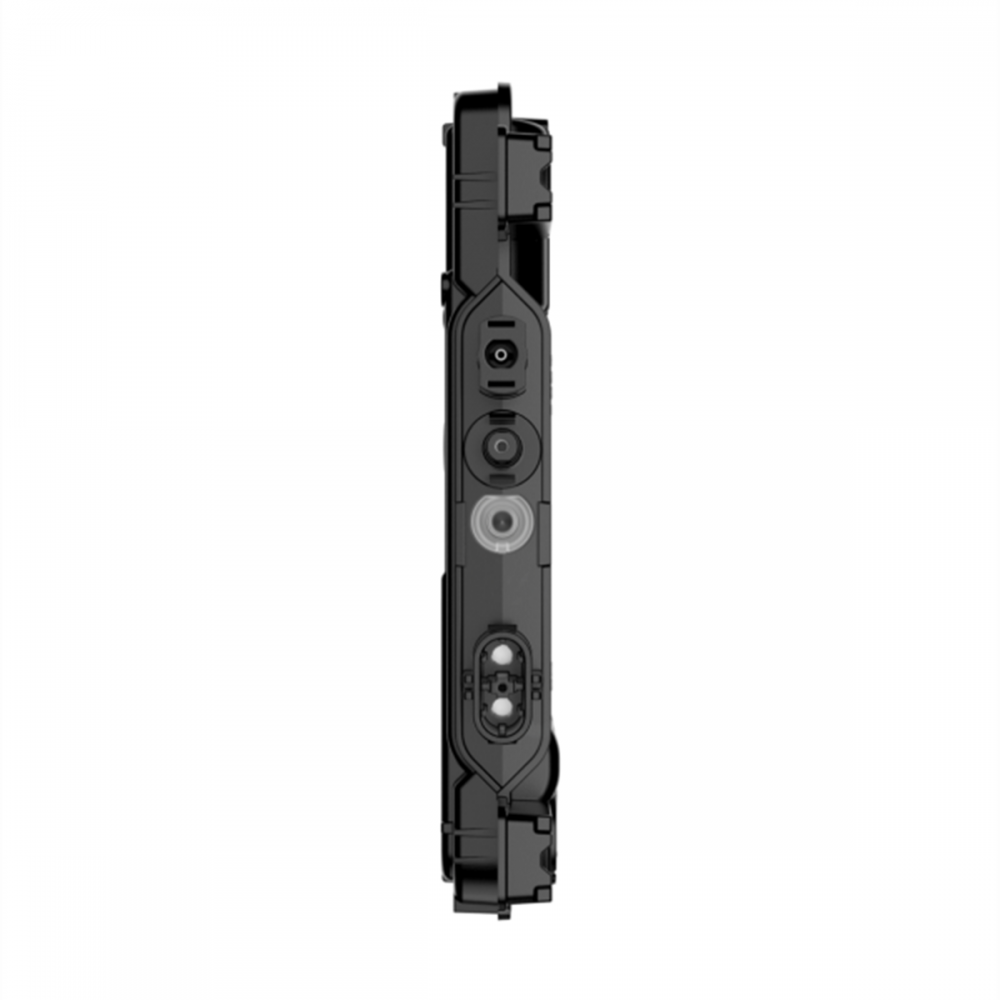

Enphase IQ8AC IQ8-AC Microinverter

IQ8-AC

New

Download

Data sheet

Made in India
Manufacturing number EN-IQ8AC-72-M-INT

More info

• Enphase Manufacturer ID: IQ8AC-72-M-INT
• Phases: 1 or 3 (depending on wiring)
• MPP Tracker: 1
• Inputs per tracker: 1
• Rated AC output power: 366 VA
• MPPT operating voltage: 28 - 45 V
• Warranty: 25 years

Technical specifications
• Input current: 14 A
• Short circuit current: 25 A
• Connectivity: Using the Envoy WLAN/Ethernet and app-enabled

Note: Belgian certification for the IQ8 products is expected to follow from January 2024.

Manufacturer product number: EN-IQ8AC-72-M-INT
Weight: 1.1 kg
Rated power: 366 W
Min PPT voltage: 18 V
Max PPT voltage: 60 V
DC Startup voltage: 22 V
DC Shutdown voltage: 18 V
Max input voltage: 60 V
Max DC Power: 530W
Max AC Power (5 Minutes): 366 W
Surge AC Power (1 Second): 366 W
Max DC Current: 14 A
Max DC Inputs: 1
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 97%
Transformer: HF
MPPT Quantity: 1
Integrated DC switch?: No
Warranty: 25 years
