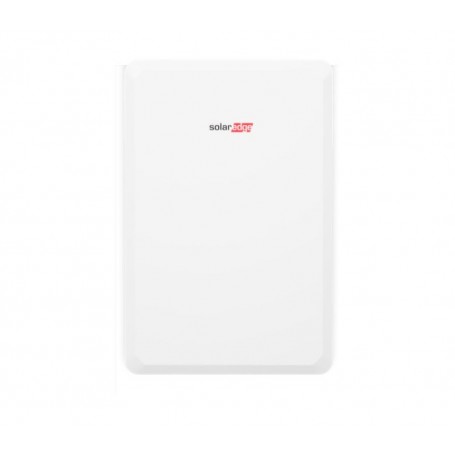

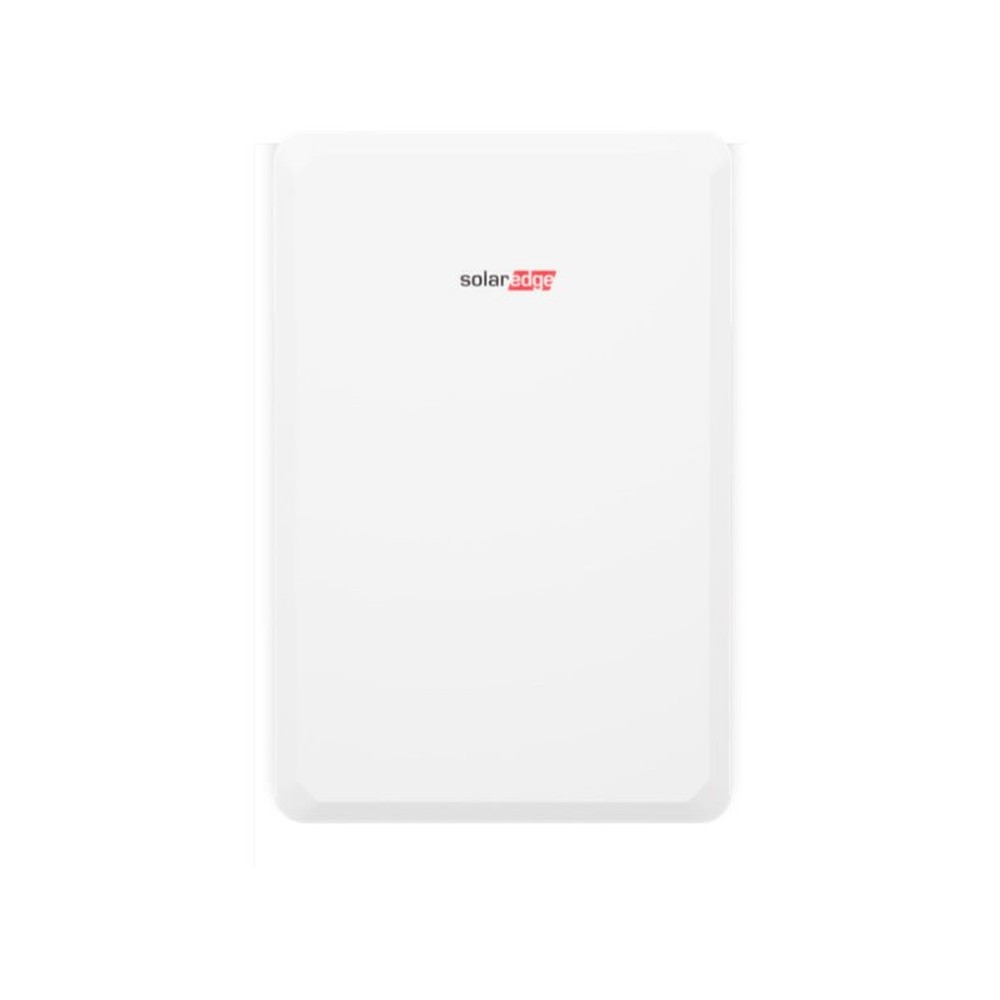

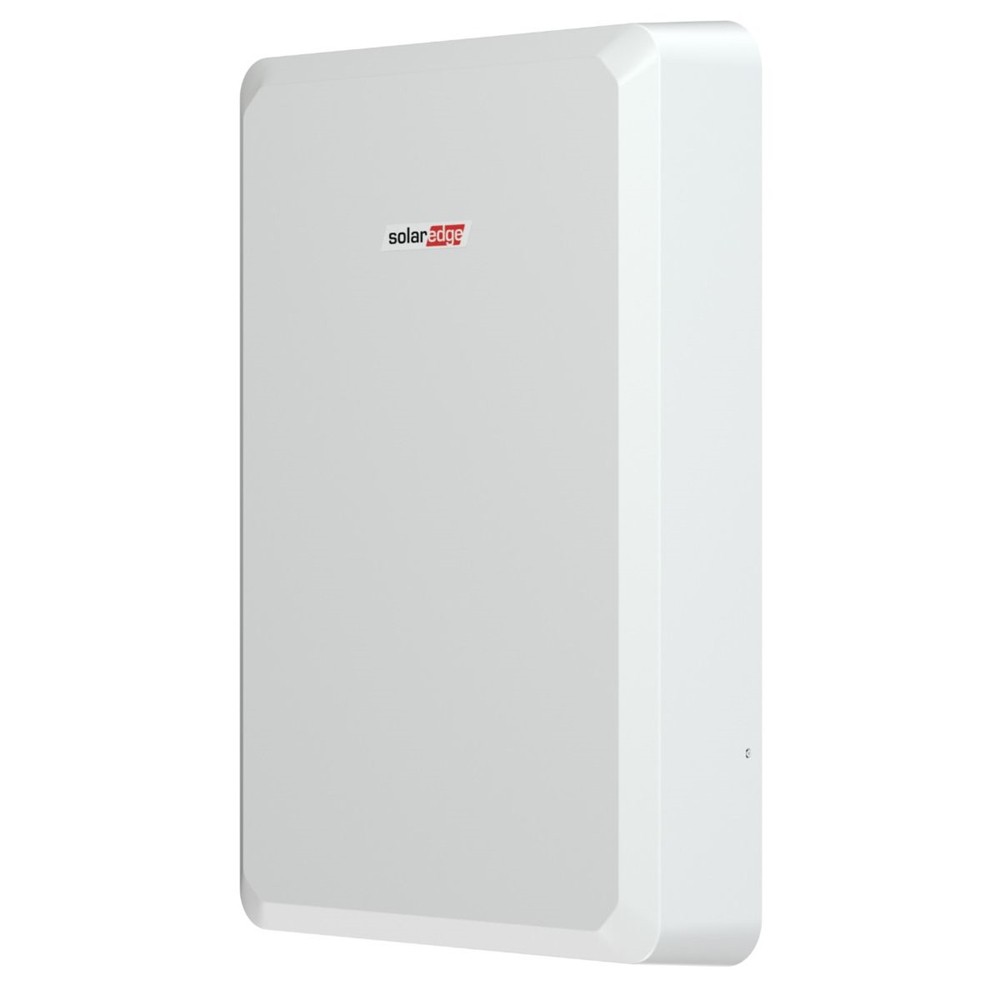

SolarEdge V3 10kWh Energy Bank Home Battery New Version BAT-10K1PS0B-03

SL468

New

Download

Data sheet

Made in China
Manufacturing number BAT-10K1PS0B-03
Special freight Yes

More info

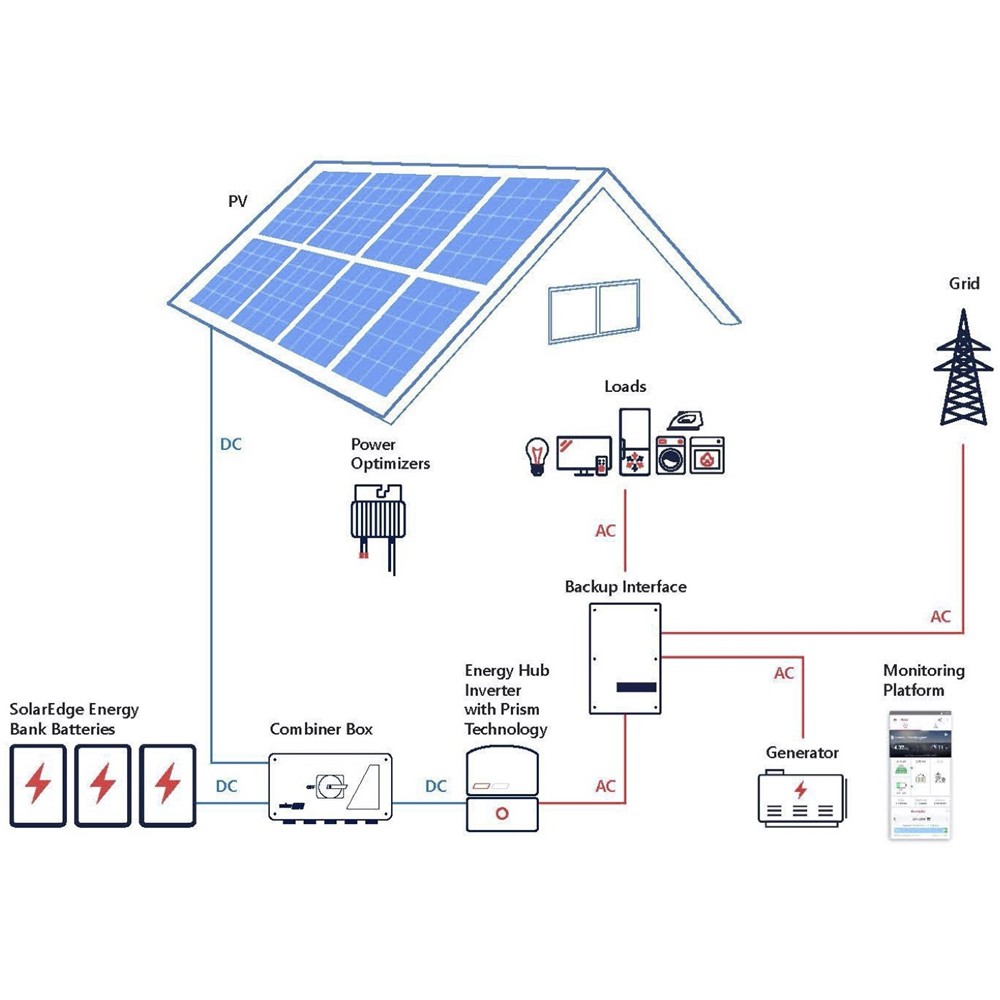

Optimized for SolarEdge StorEdge with inverters with HD-Wave technology. Integrates with SolarEdge's complete residential offerings, providing a single point of contact for warranty, support, training, and simplified logistics and operations.

NMC 9.7 kWh / 5 kW Li-ion technology
DC link
Supports up to 3 batteries per inverter for more power and capacity 100% depth of discharge
Superior System Efficiency (PV > Battery > Grid)
Easy installation with plug & play:
Floor mounting or wall mounting
Automatic configuration with predefined settings
All SolarEdge solutions are managed by a single APP to optimize production, consumption and stored energy

Product number manufacturer: BAT-10K1PS0B-03 - NEW VERSION V03 - with new system upgrade compared to V02 and V01
Weight: 150 kg
Battery type: lithium-ion
Nominal energy: 10300 Watt
Depth of discharge: 90.00%
Tension: 350 V
Continuous discharge rate (normal use): 5000 W
Maximum discharge rate (5 minutes): 5000 W
Peak discharge rate (15 seconds): 7500 W
Maximum charging speed (5 minutes): 5000 W
