Reduced price! SolarEdge, SolarEdge Energy meter with Modbus connection (RGM) 1PH / 3PH EU Only, Energy meters, SE001 View larger

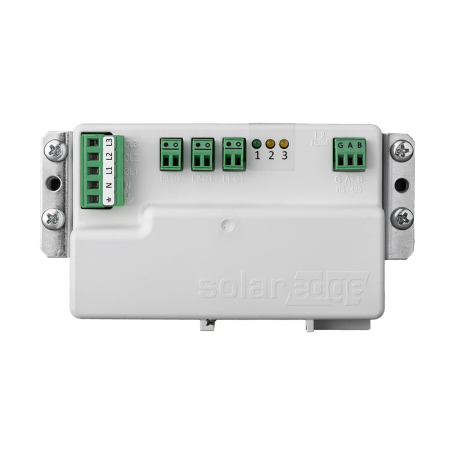

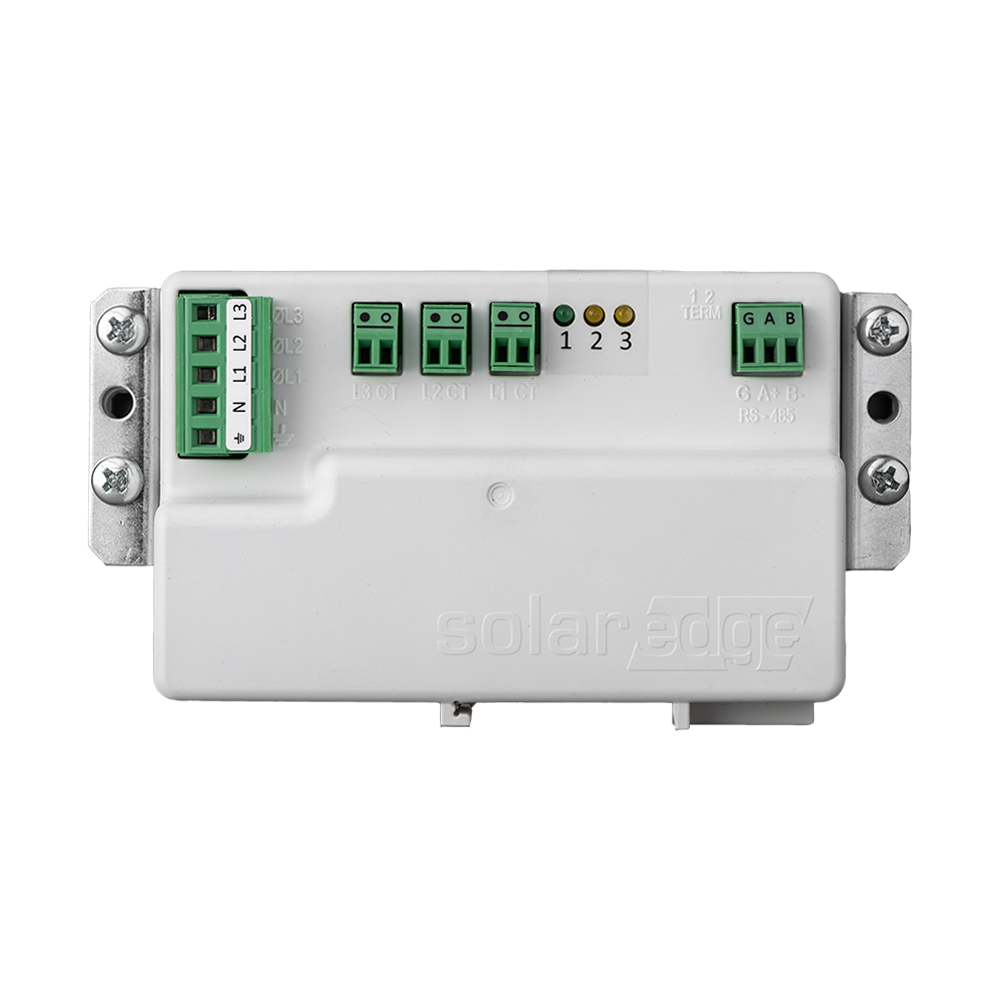

SolarEdge Energy meter with Modbus connection (RGM) 1PH / 3PH EU Only

SE001

New

Download

Data sheet

Manufacturing number SE-MTR-3Y-400V-A

More info

Modbus Meter for SolarEdge Installations
SolarEdge Energy Meter SE-MTR-3Y-400V-A with Modbus Connection

Highly accurate meter readings for monitoring production and/or consumption
Import/export meter values to limit the feed-in
Small and easy to assemble - fits in a standard meter box
Suitable for residential, commercial and utility installations
This is a new -K2 component with updated firmware for CT support needed to meet the requirements of the feed-in limits of the British G100 standard.
Supports RS485 120Ω line termination

Specifications:
Manufacturer Product Number: SE-MTR-3Y-400V-A
Nominal voltage range: 230/400 Vac
Grids Supported - Single Phase, Three Phase: L / N / PE ; L1 / L 2 / L3 / N / PE
Current transducer input: 333 mV
Response Time: 200 ms
Additionally must be ordered current converters (1 current sensor per phase - for deviating rated current values)
Dimensions (HxWxD): 75 x 139 x 35 mm
Weigh: 225 gr
Protection Rating: IP20 - Suitable for indoor use
Mounting Type: DIN Rail / Surface mount

More information: Check our DataSheet for SolarEdge SE-MTR-3Y-400V-A
