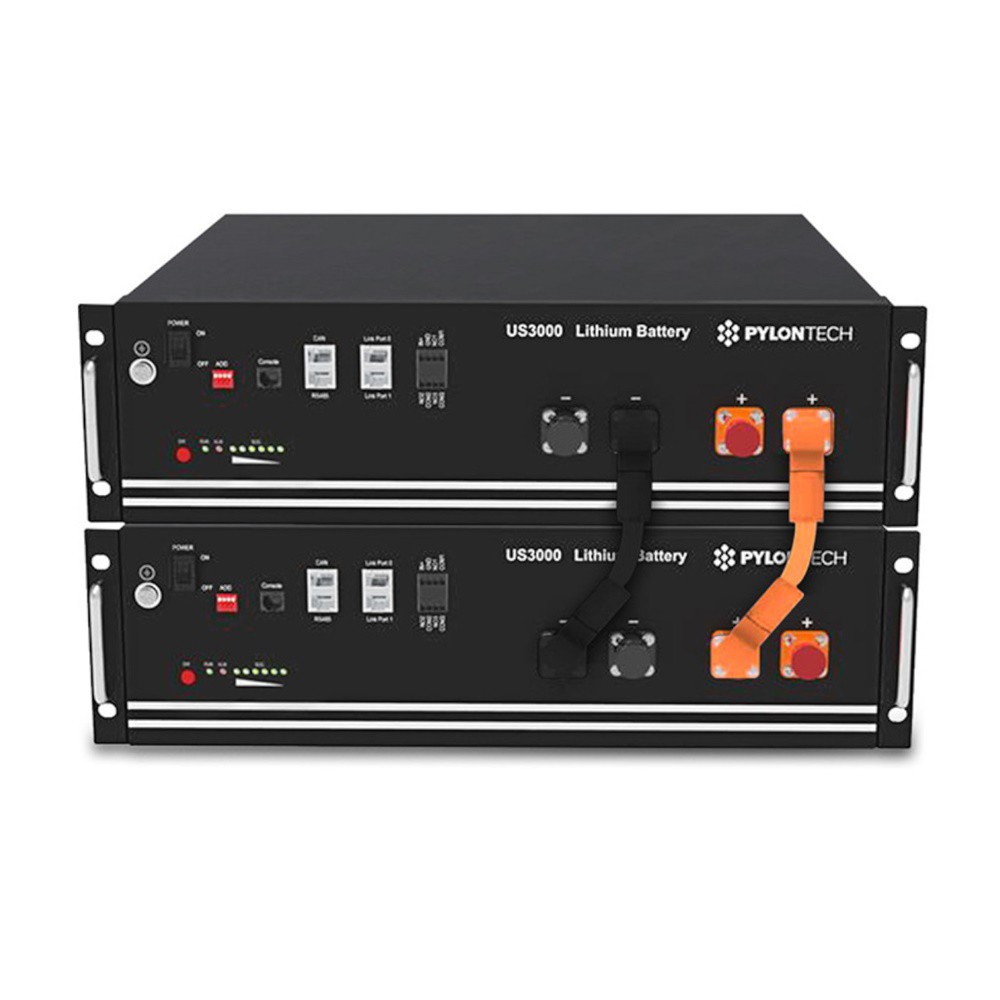

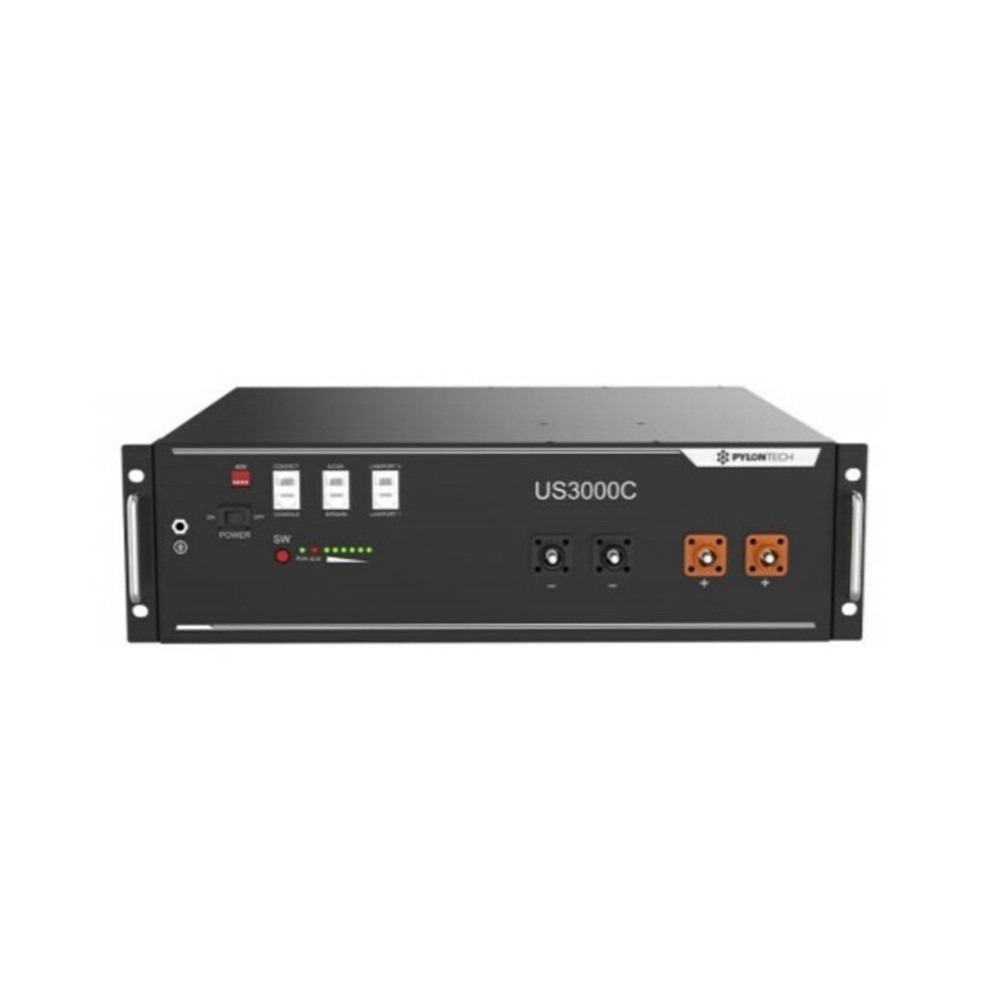

PYLONTECH US3000C 3.5kWh Li-Ion battery (excluding brackets)
Item Number: PYLON-US3000C Storage Systems - Li-ion Battery Pack
The PYLONTECH UB2000 Plus is a latest generation lithium storage device.
The storage tank has been specially developed to fully meet the high demands placed on a solar energy storage tank.

Maximum safety and a long service life are guaranteed, even with regular deep discharges, thanks to the latest technology.
The system has a modular structure and can be set exactly to the desired storage capacity by connecting several modules together.
Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated battery management system (BMS).

- Expandable with own BMS on each unit
- Compatible with a wide range of hybrid inverters
- Easy buckle attachment minimizes assembly time and costs
- Safety certificate TÜV CE UN38.3

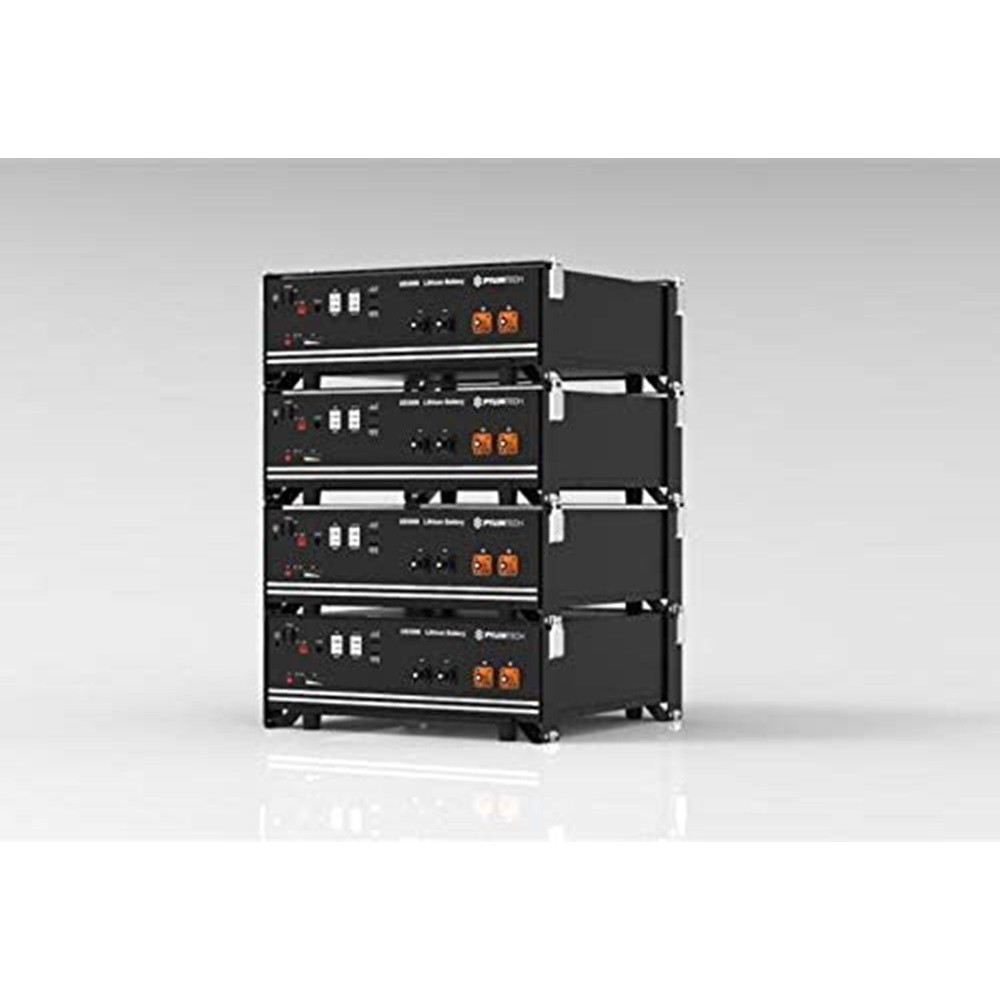

Optional: BRACK-US3000B mounting bracket for stacking multiple units

10 year warranty
Take the opportunity and extend the manufacturer's warranty for 3 to 10 years for free.
All you need to do is register your Pylontech memory for free.

If you have technical questions about this product or would like to report problems with the information on this page, please contact us.

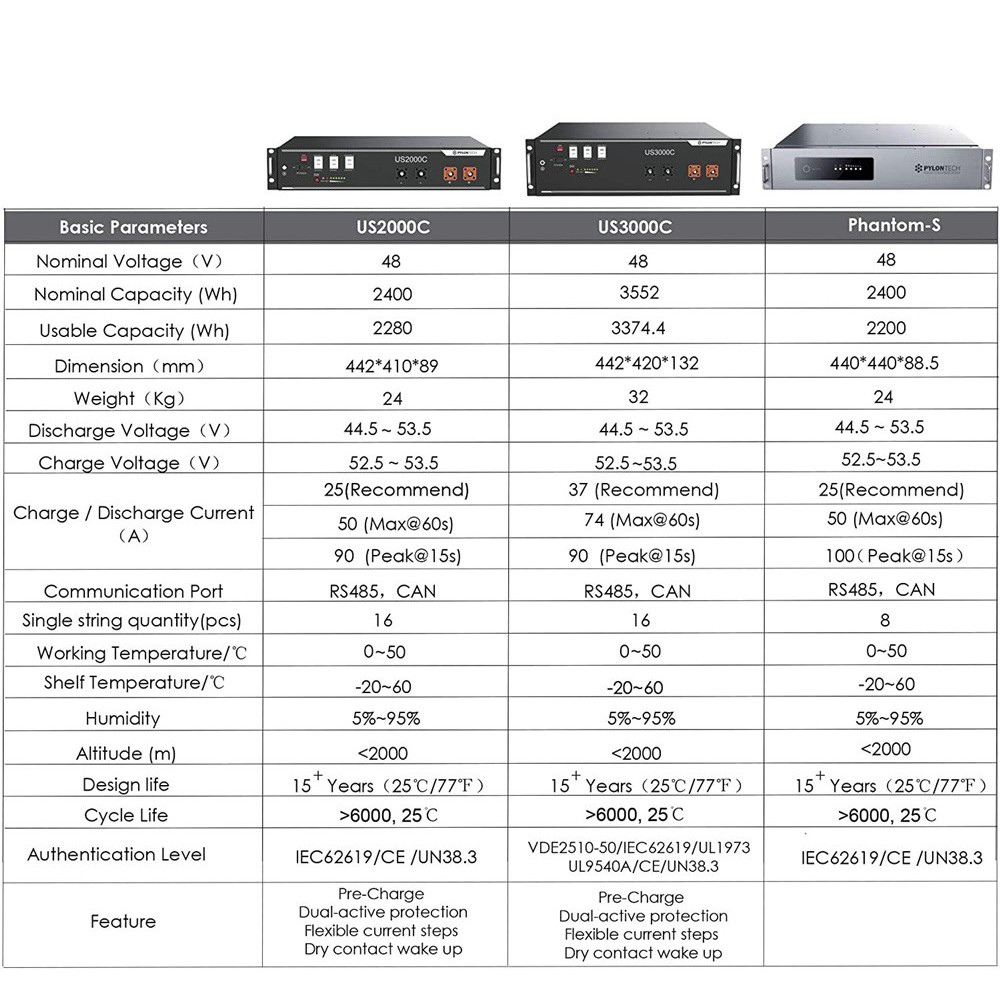

PYLONTECH US3000C Specifications:
Manufacturer product number: PYLON-US3000C
Weight: 32 kg
Battery Type: Lithium Ion
Nominal Energy: 3552 Wh
Depth of discharge: 95.00 %
Voltage:48V
Continuous Discharge Rate (Normal Use): 1776 W
Maximum Discharge Rate (5 Minutes): 3552 W
Surge Discharge Rate (15 Seconds): 4320 W
Maximum Charge Rate (5 Minutes): 1776 W
