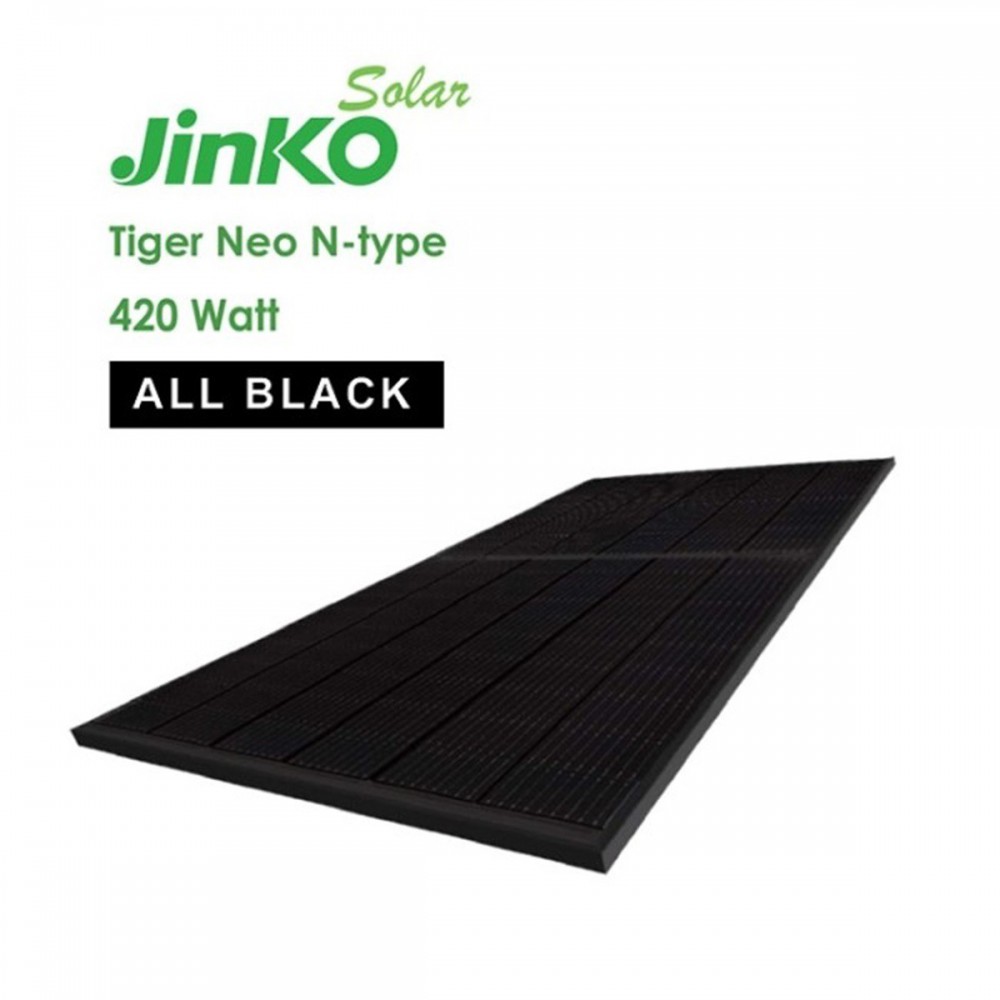

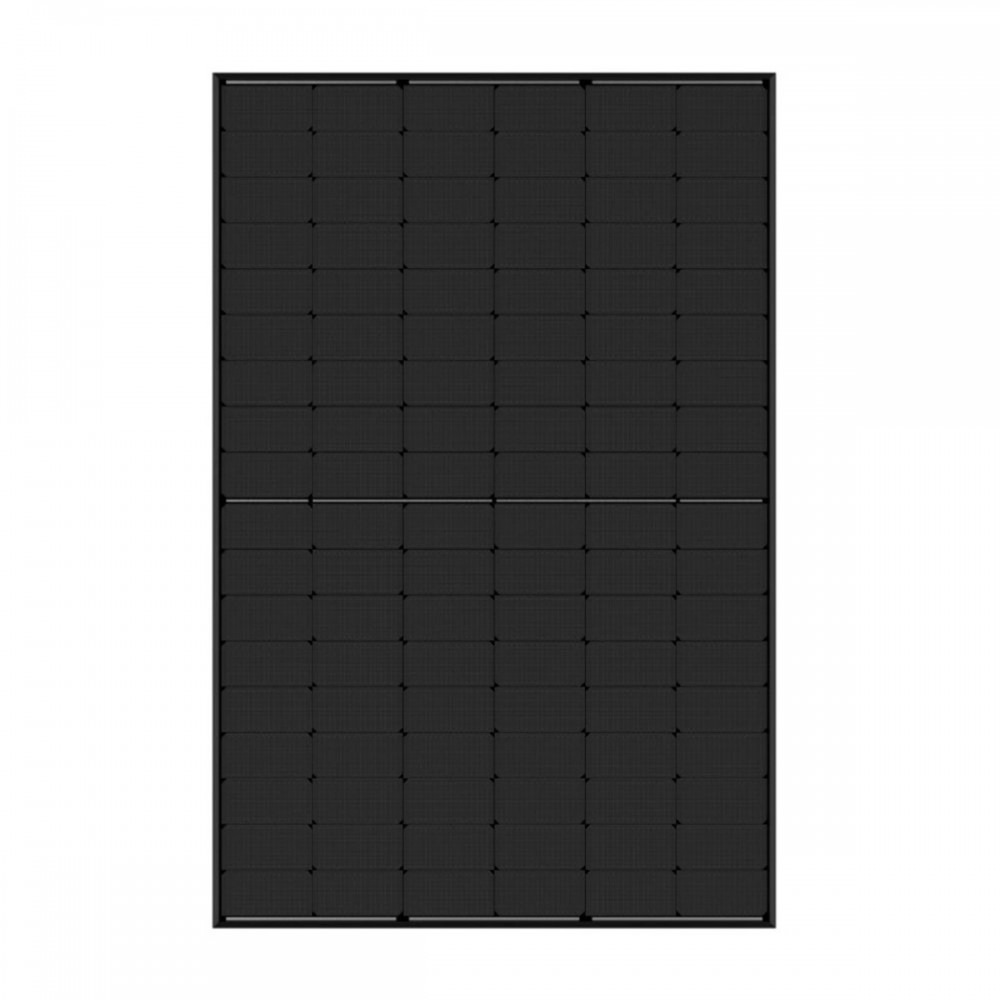

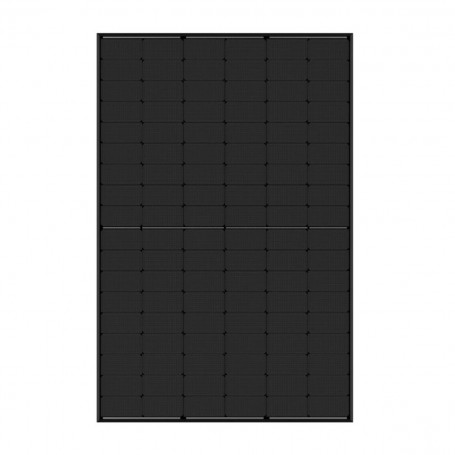

JinKO Solar 420W Mono Tiger Neo N-Type ALL BLACK with Jinko Plug

SE221

New

Download

Data sheet

Style ALL BLACK
Wattage 420W
Characteristics Efficiency 21.5%
Manufacturing number JKM420N-54HL4-B-JK03
Oversized Yes
Length in mm 1722
Height in mm 30
Width in mm 1134

More info

Highlights of JinKO Solar 420W Zone Panel:

Rated Power: 420W
Efficiency: 21.5%
Width: 1,134mm
Height: 1,722mm
Ultra-high power / ultra-high efficiency
Higher bifacial gains
Improved Reliability (30 year performance warranty & -0.4% linear degradation & 25 year product warranty)
Lower LID/LETID
Optimized breakdown
Excellent low-light performance
Exceptional PID stability
25 year product warranty
30 year linear performance warranty

Note: JKM420N-54HL4-B-JK03 comes with JK03 connectors.

JinKO Solar 420W Zone Panel Specifications:
Manufacturer Product Number: JKM420N-54HL4-B-JK03
Weight: 22 kg
Rated Power: 420W
MCS Reference: MCS PV0163/4756
Length: 1,722mm
Width: 1,134mm
Depth: 30mm
VMPP: 32.04V
IMPP: 13.11 A
Isc: 13.8A
Voc: 38.15 V
temp. Coefficient (Mpp): -0.3 %
Clamp position on panel : Long and short side
Connector Type: JK03M
Efficiency: 21.5 %
Pallet size: Oversized
