Type | Grid-Tie Inverter |
Style | 3-phase inverter |
Wattage | 100kW |
Manufacturing number | SUN2000-100KTL-M2-AFCI |

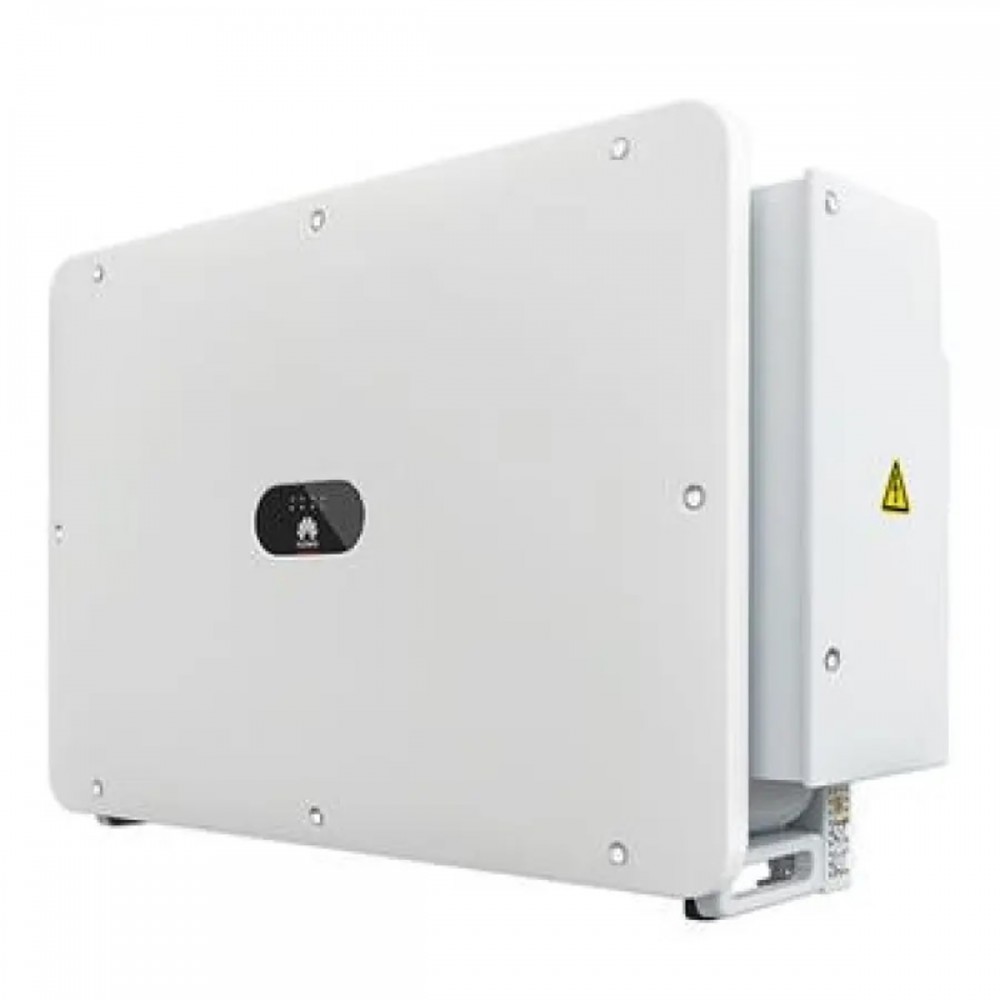

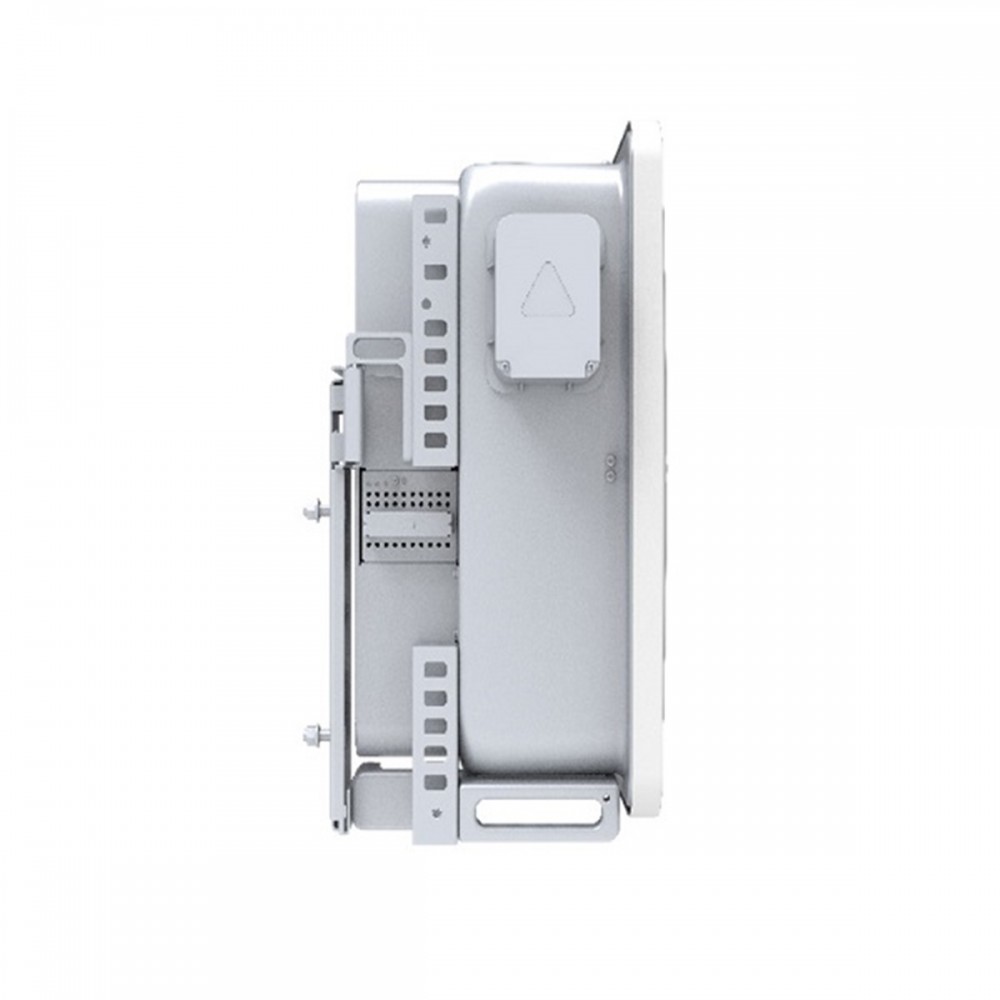

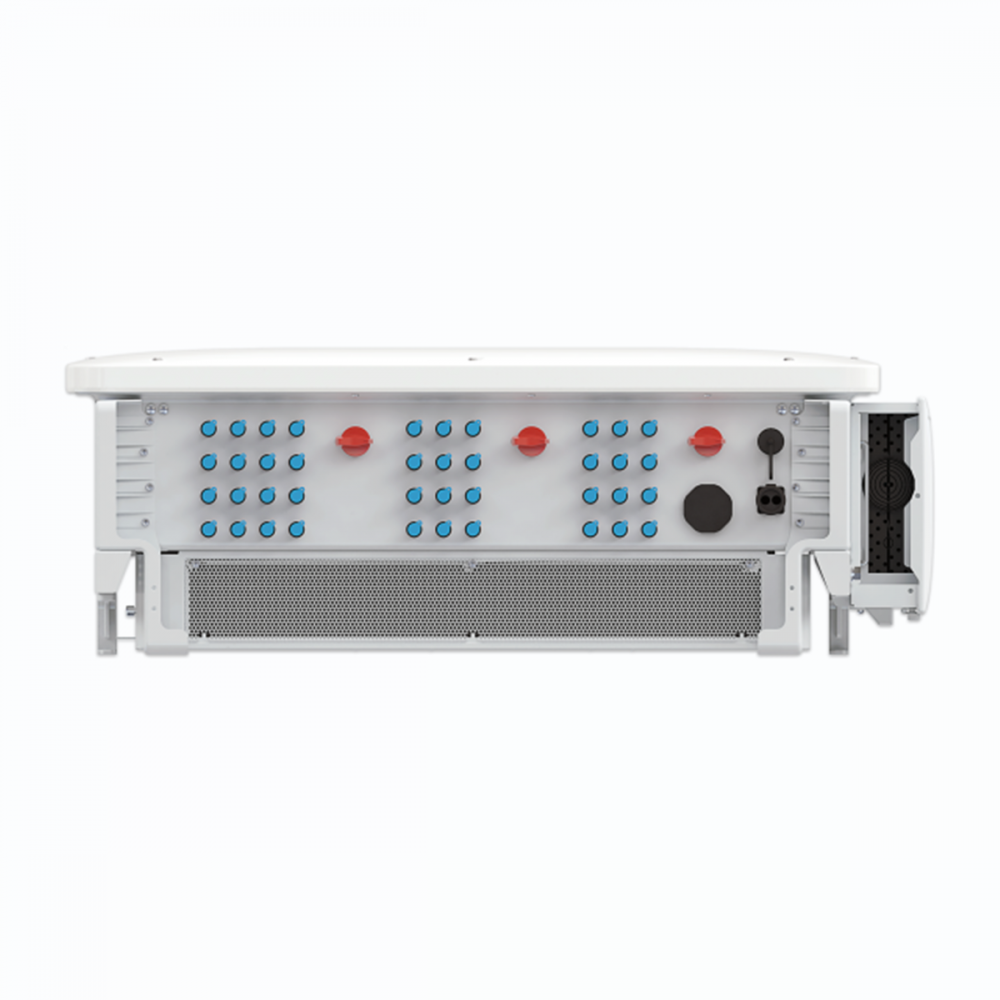

Huawei SUN2000 100KTL M2 100kW Three Phase Inverter with AFCI
Three-phase inverter Huawei SUN2000-100KTL-M2 (Smart String Inverter)
Power 100 000 AC. 110 000W
Efficiency 98.6%
Three-phase MPPT 10
Optional 4G / 3G / 2G via Smart Dongle – 4G (Optional )
DC Connector Amphenol H4
IP66 IP Protection
Product warranty 5 years Extension for 10 years 15 years 20 years possibel
Manufacturer Product Number: 01074695-001 (SUN2000-100KTL-M2-AFCI)
Weight: 93 kg
Rated Power: 100,000W
Minimum PPT Voltage: 200V
Max PPT voltage: 1,000 V
DC Start-up voltage: 200V
DC Shutdown Voltage: 0V
Max input voltage: 11,000 V
Max DC Power: 100,000W
Max AC Power (5 Minutes): 100,000W
Surge AC Power (1 Second): 110,000 W
Max DC Current: 30A
Max DC Inputs: 10
Has DC Fuses: 0
Connector: Amphenol H4
Included Connectors: 0
Euro Efficiency: 98.6 %
Transformer: None
MPPT Quantity : 10
Integrated DC switch?: No
Warranty: 5 years
