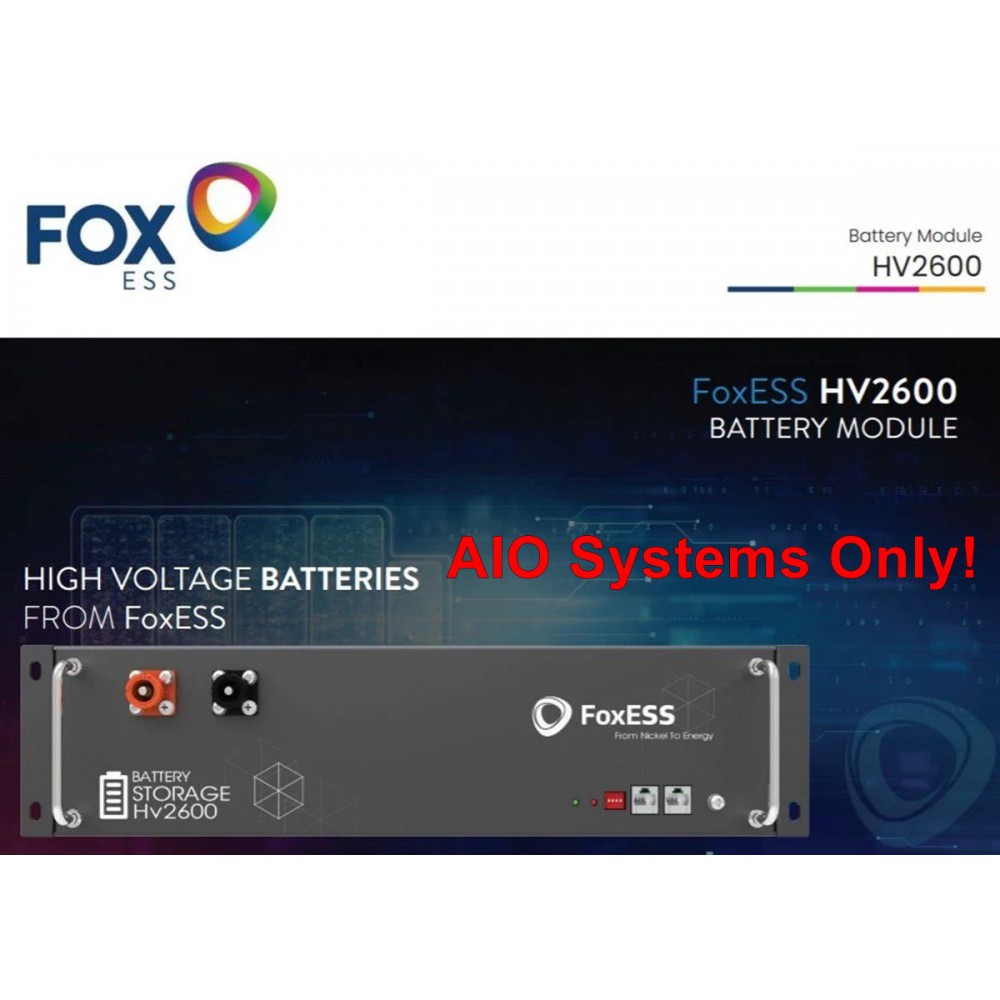

FOX HV2600 2.6kWh HV-Battery (AIO ONLY) - V1 (Version D)

SE289

New

Download

Data sheet

Warranty 10 Years
Manufacturing number HV2600

More info

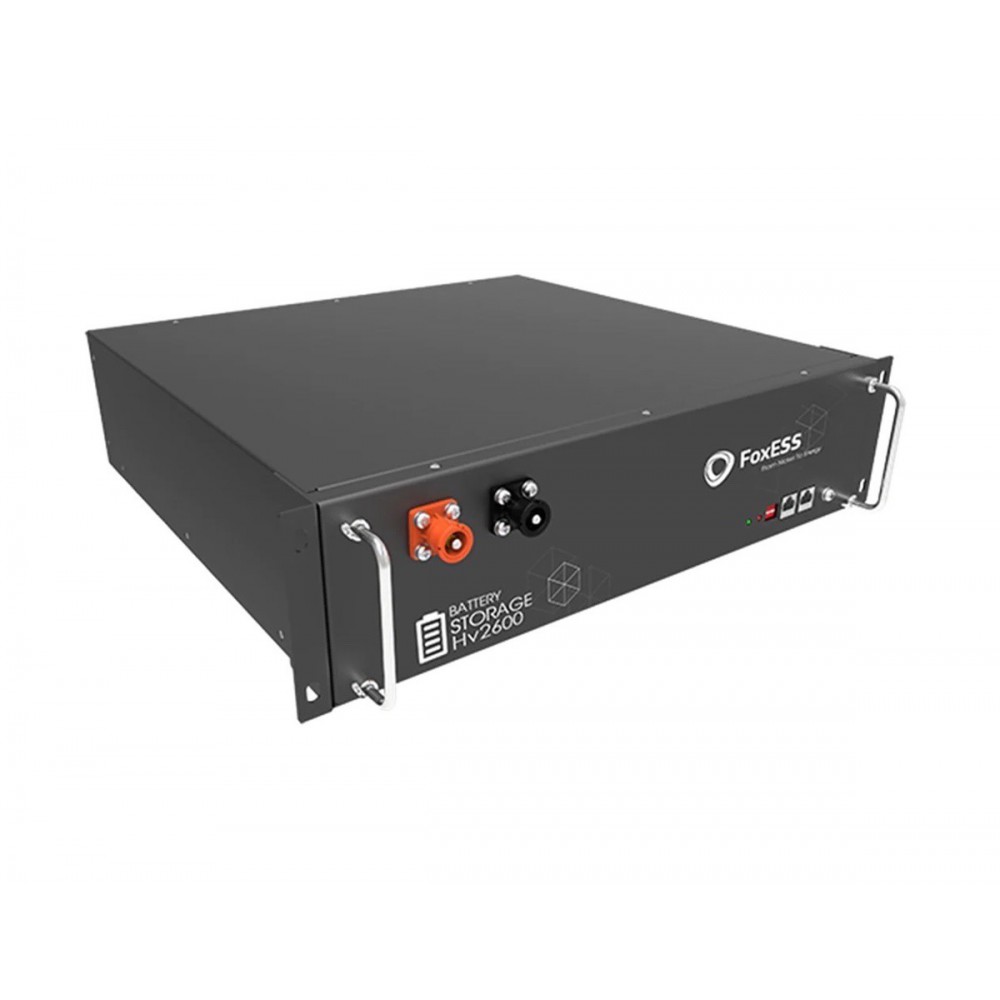

The HV2600 is a high-performance, scalable battery storage module. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications.

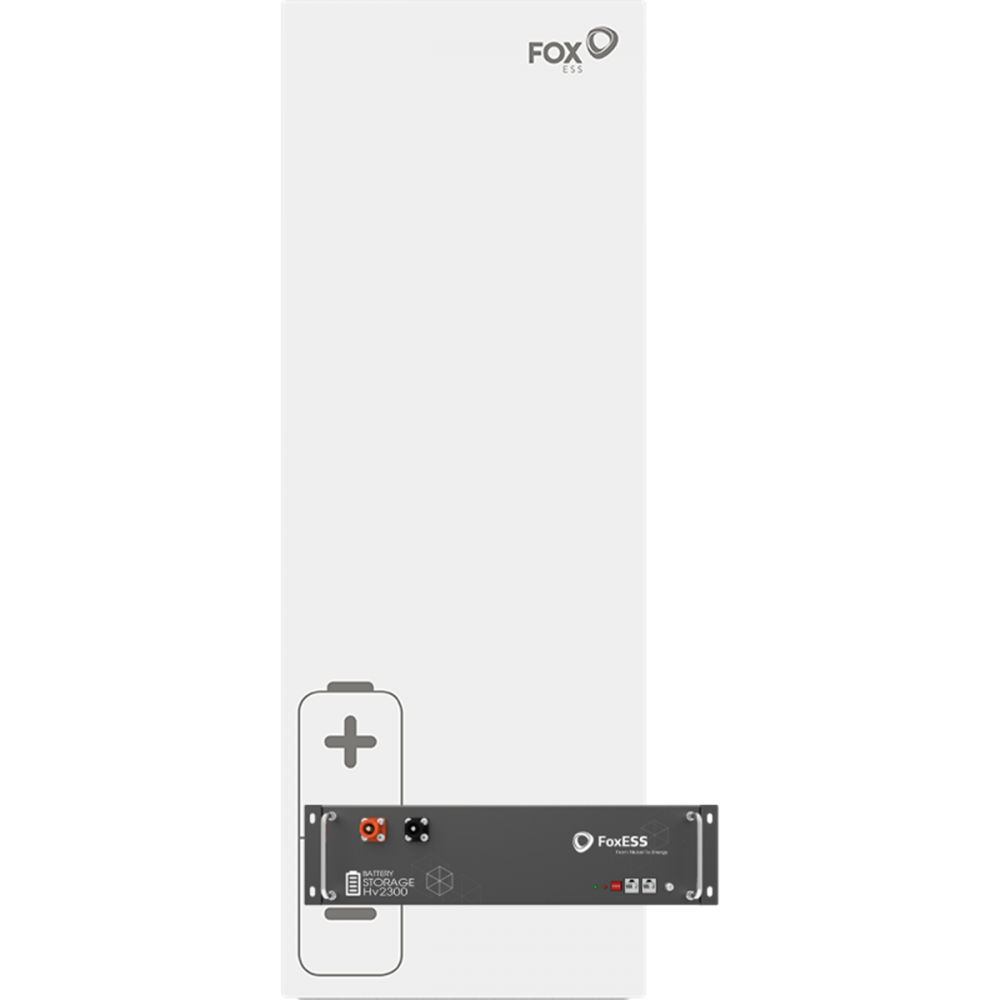

Additional batteries can be installed in series, allowing for a maximum storage capacity of 20.8kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.

Manufacturer Product Number: FE-HV2600-V1 H2600 (HV 2.6kWh) Battery (AIO Systems Only)
2.6kWh Capacity
Weight: 26 kg
Scalable up to 20.8 kWh
98% Charge/Discharge Efficiency
Battery Type: Lithium Ion
Nominal Energy: 2560 Wh
Depth of discharge: 90.00 %
Voltage: 52 V
Continuous Discharge Rate (Normal Use): 2560 W
Maximum Discharge Rate (5 Minutes): 3000 W
Surge Discharge Rate (15 Seconds): 3600 W
Maximum Charge Rate (5 Minutes): 2560 W
CAN/RS485 Communication
High Voltage
Easy Installation
Wide Temperature Tolerance
