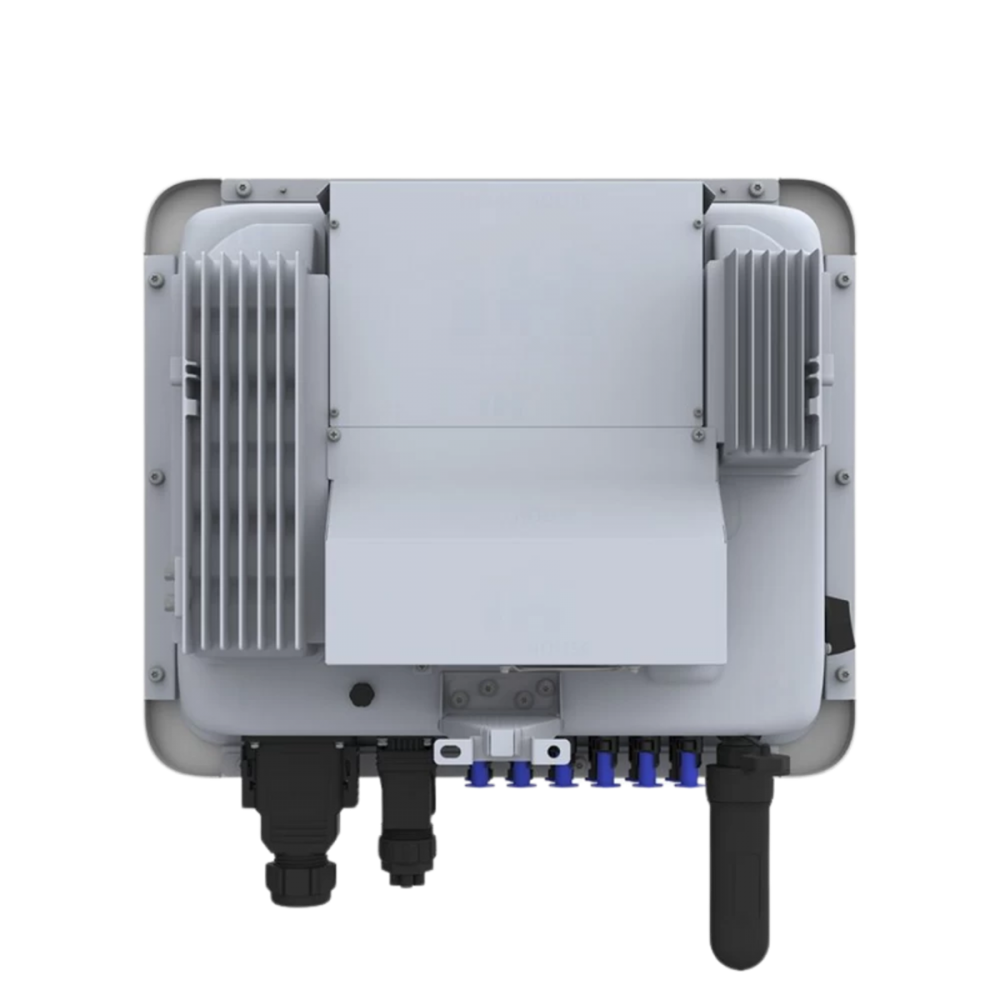

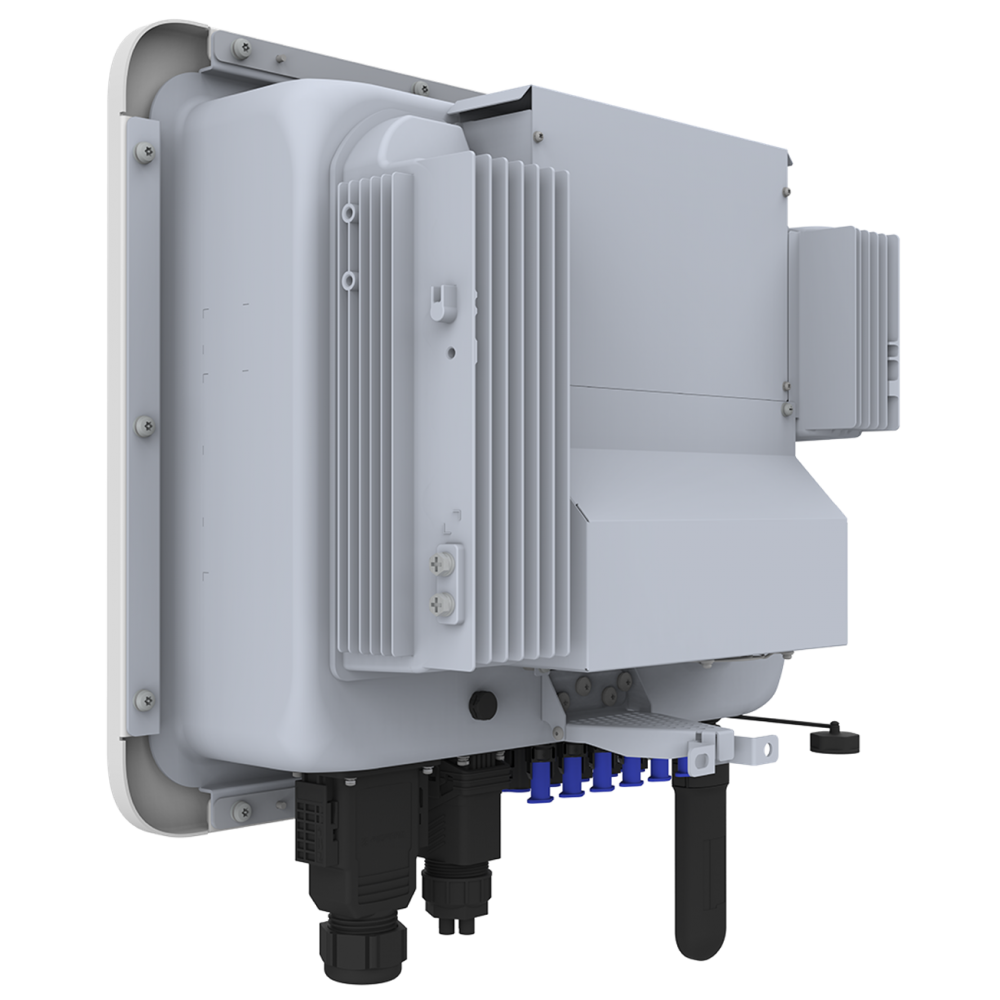

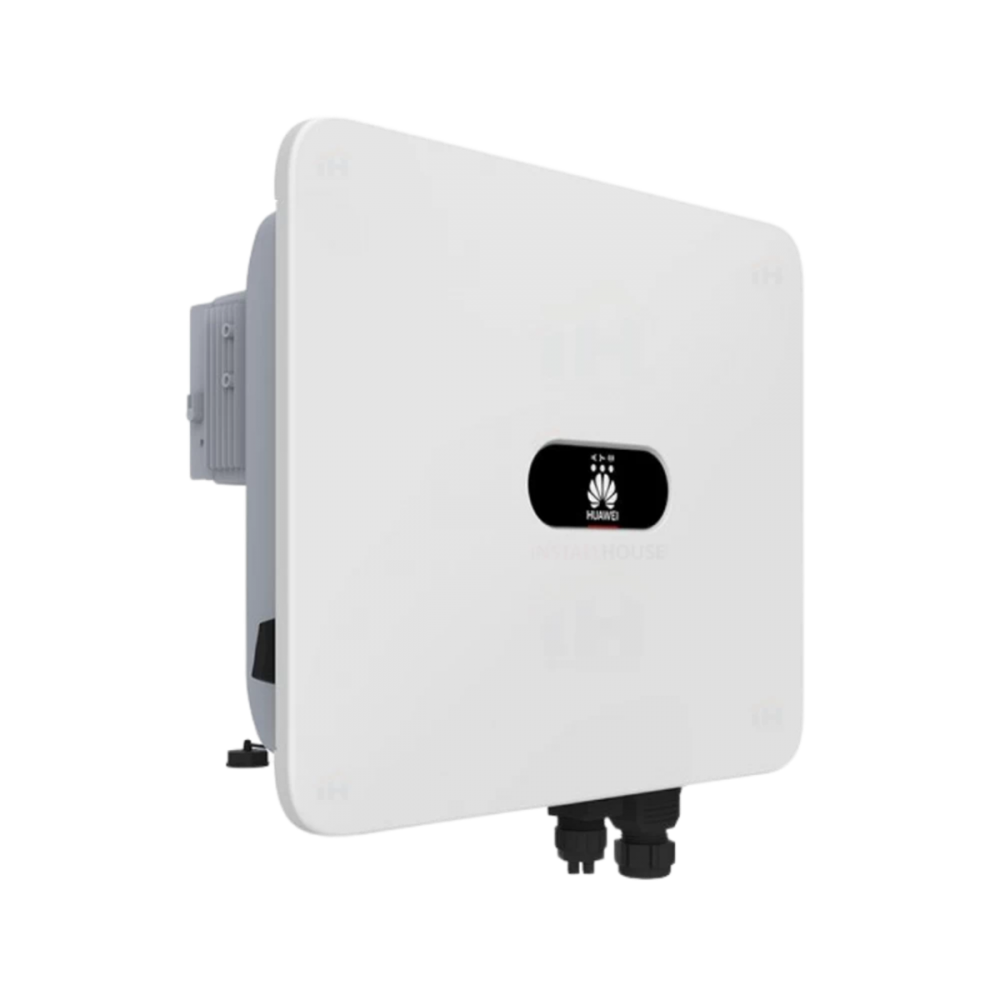

Huawei 15kW 3 Phase SUN2000-15K MB0 Hybrid Smart Energy Controller

SE381

New

Download

Data sheet

Type Hybrid Inverter
Style 3-phase inverter
Wattage 15kW
Made in China
Manufacturing number SUN2000-15K-MB0

More info

The 12-25kW three-phase hybrid inverter series MB0 from Huawei:

Number of MPPT: 2
Number of inputs: 4 total (2 per MPPT)
Maximum input current: 30 A (two strings) / 20 A (single string)
Maximum number of parallel units: 3
Maximum input voltage: 1100 V
Possibility to integrate two LUNA battery towers with up to three units per tower
Weight of only 21 kg

Communication:
RS485; WLAN / Ethernet via Smart Dongle WLAN-FE (optional)
4G via Smart Dongle-4G (optional)
EMMA (optional)

Note: Before purchasing, check whether the inverter is certified for the grid standards in your country.
