Oem, MC4 DC Solar Panel Connector Cable 1x female to 4x male, Solar Cables, AL1141-MC4-4M View larger

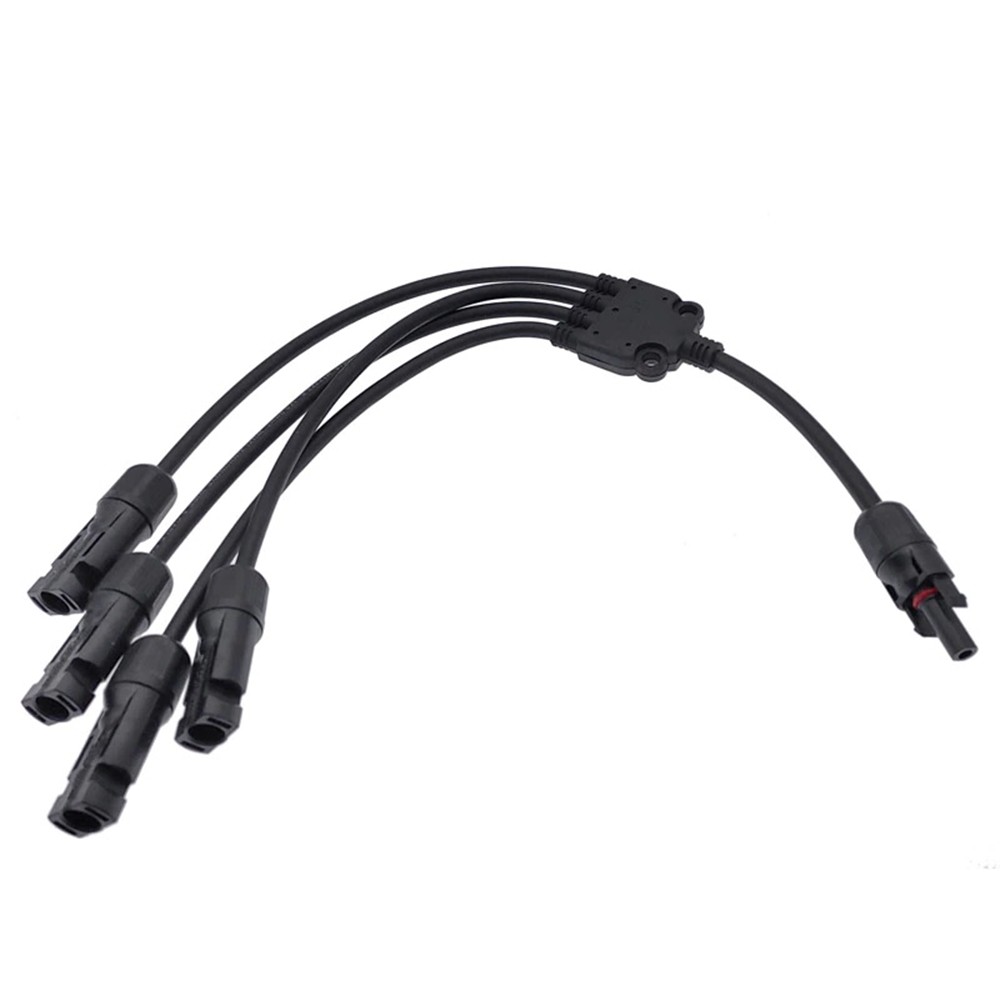

MC4 DC Solar Panel Connector Cable 1x female to 4x male

AL1141-MC4-4M

New

Data sheet

Type Solar panel connector
Style Female to Male
Target platform Solar energy elements
Compositions Plastic
Amperage 30A
Voltage 1000V
Wattage Does not apply
Characteristics No specific properties
Color characteristics Black
Length characteristics 51.5cm
IP Value IP67
Warranty 2 years
Made in China
Manufacturing number MC4

More info

  • Item type: MC4 Solar Panel Connector
  • Rated voltage: 1000 V
  • Rated impulse voltage: 1000 V
  • Rated current: 24A - 14 AWG (2.5mm⊃2;), 30A - 12 & 10 AWG (4mm⊃2; & 6mm ⊃2;)
  • Test voltage: 6 kV (50 Hz)
  • Protection grade: IP67
  • Insulation material: PC/PA
  • Contact material: Copper, silver-plated
  • Operating temperature: -40°C ~ +90°C
  • Safety class: II
  • Flame class: UL94-V0
  • Contact resistance: ≤5mΩ
  • Insertion / Withdrawal force: ≤50N / ≥50N
  • Suitable for cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm⊃2;)
  • Locking system: Snap-in
  • Cable length: 51.5cm
  • Interface: 1x Female / 4x Male
  • Important note! This splitter to be used / applied only for Solar panels with a maximum of 200W!
