DG RUBBER HOLLAND - Battery cable set red/black 35mm² - 1 meter - 2x M8 eye - Battery Cables - DG002-35-1M-M8-SET View larger

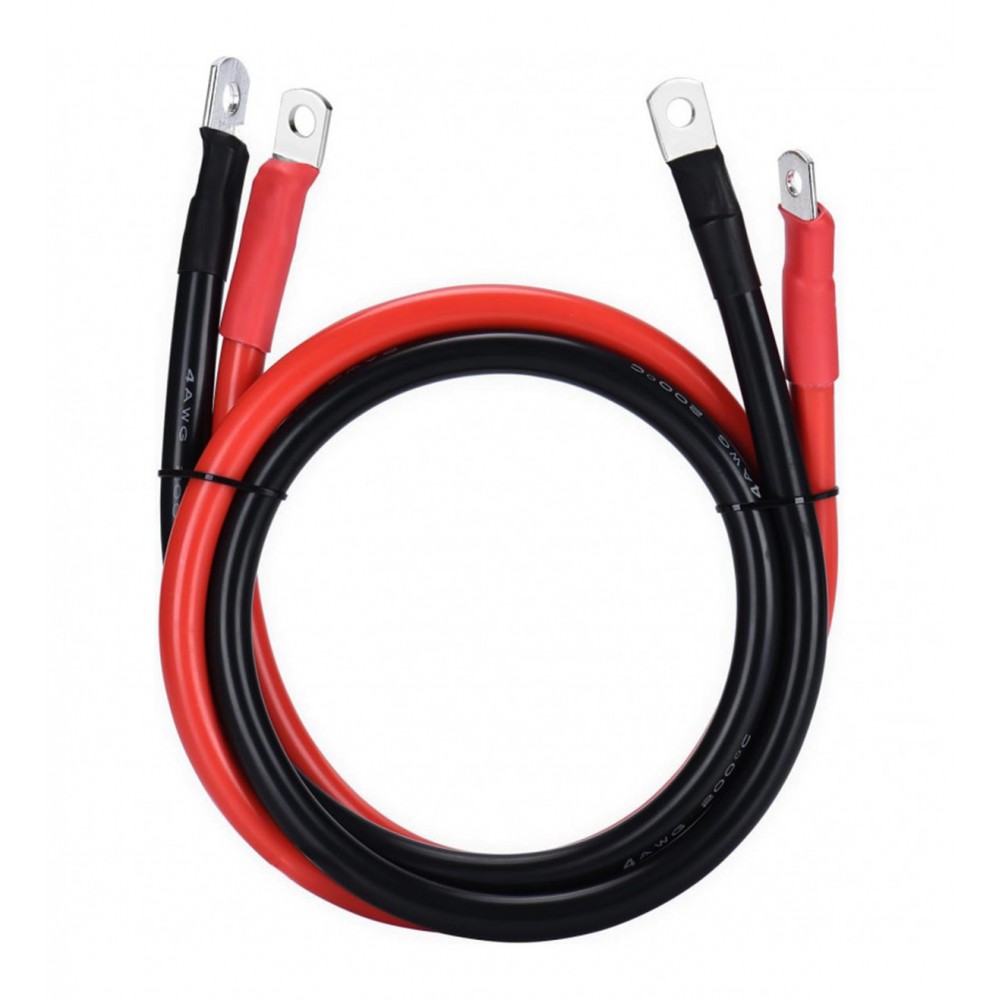

Battery cable set red/black 35mm² - 1 meter - 2x M8 eye

DG002-35-1M-M8-SET

New

More info

Double insulated battery cable, oil resistant and very flexible
Conductor: Electrolytic / Annealed copper (Class 6)
Insulation (around conductor): PVC (Natural)
Insulation sheath: NBR PVC (RAL 3000 Red / RAL 9005 Black / RAL 2008 Orange)
Manufacturer SKU number: 3399935/z (r)
Cable area: 35mm
Cable diameter: 11.30mm
Max R (Ω/km): 0.544
Max current: 139 A
Cable weight: 376 kg / 1 km cable
Bending radius: x10 outside diameter for fixed installation
Working voltage: 0.6 / 1 kV
Test voltage: 3.5 kV
Temperature range: -40 °C + 70 °C
Flame spread: IEC 60332-1-2
Standards:
- IEC 60811-1-1 Insulation and sheathing materials, standard test methods;
- IEC 60228 Conductor of insulated cable;
- IEC 62230 Electric cable spark test;
- IEC 60060-1 High voltage test techniques
