SL494
New
Pre-order! Be the first in line to receive this product. When item is on stock we will serve the already placed orders first.
Warning: Last items in stock!
Estimated availability and shipping date:
| Made in | China |
| Manufacturing number | Dyness-DH100F-100kWh |
| Special freight | Yes |

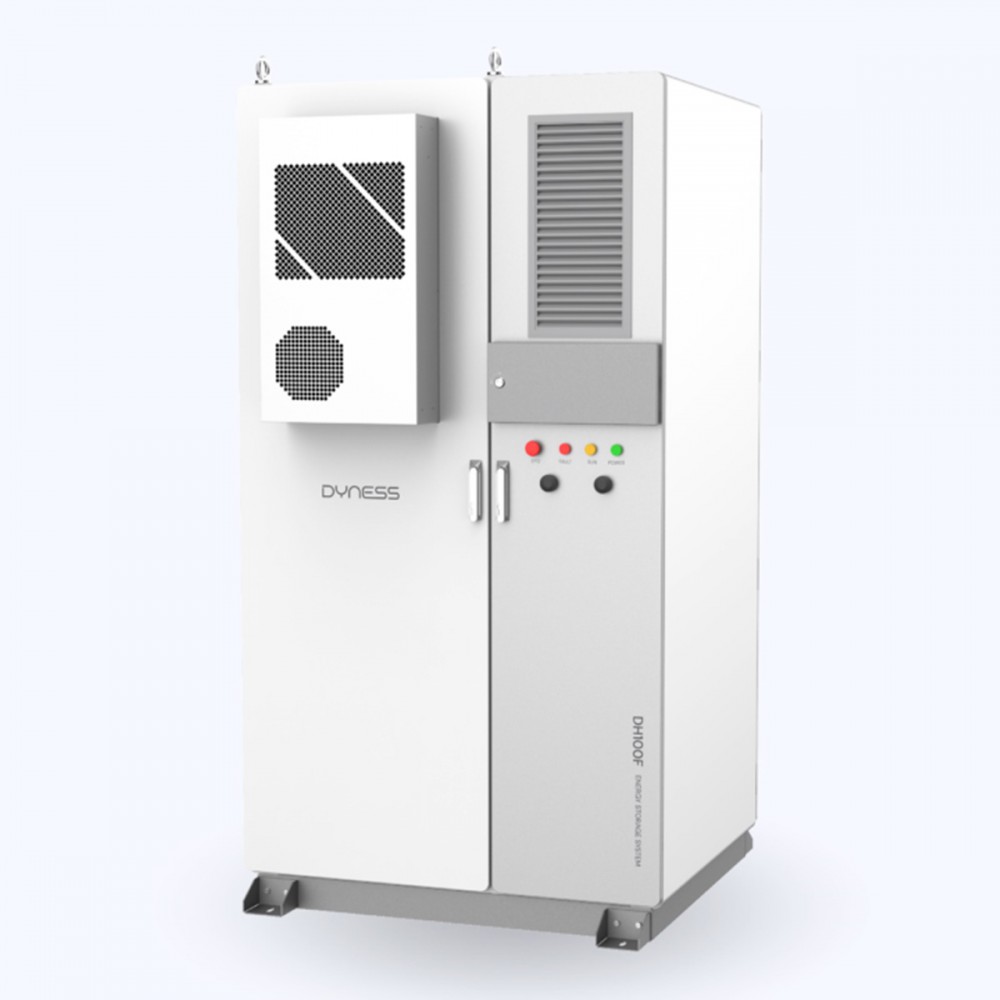

The DH100F series offers an all-in-one, multi-functional integration that supports PV and generator access, with seamless grid and off-grid switching. It features a selectable standalone capacity ranging from 71 to 100 kWh and includes a 280Ah LFP battery with high energy density. The system also incorporates EMS intelligent control and a modular design to reduce infrastructure costs.
Full-Scope Solution
Comprehensive all-in-one integration that supports PV and generator access, with seamless grid-to-off-grid switching capabilities.
Maximum Security
Features a proactive fire prevention strategy with three levels of detection and TMG to ensure active firefighting remains effective, even during a power outage.
Flexible Scalability
Offers a capacity range of 71 to 100 kWh per unit, with a reserved DC expansion interface and support for AC expansion.
High Efficiency and Cost-Effective
Equipped with a 280Ah LFP battery with high energy density, EMS intelligent control, modular design, and backward and bottom output options to minimize infrastructure costs.
Battery system specification parameters
Battery: LFP (280Ah)
Rated current: 140A（0.5C）
System capacity:
71kWh (for Dyness DH100F 71kWh)
86kWh (for Dyness DH100F 81kWh)
100kWh (for Dyness DH100F 100kWh)
AC specification parameters (on-grid/off-grid)
Rated power:
35kW (for Dyness DH100F 71kWh)
40kW (for Dyness DH100F 81kWh)
50kW (for Dyness DH100F 100kWh)
AC rated current:
60A (for Dyness DH100F 71kWh)
74A for Dyness DH100F 81kWh)
86A (for Dyness DH100F 100kWh)
AC-rated voltage: 230/400V
Wiring method: 3P+N+PE
Frequency: 50Hz/60Hz
PV access
Max. input power:
25kW *2 (for Dyness DH100F 71kWh)
30kW *2 (for Dyness DH100F 81kWh)
35kW *2 (for Dyness DH100F 100kWh)
Max. current: 80A*2
Input voltage: 300~1000V
MPPT paths: 2
System specification
Dimension (W*D*H): 1200*1048*2258 mm (lifting ring not included)
Weight: approx. 1650kg(TBD)
Temperature: -20~50°C
Ingress protection: IP55
Anti-corrosion grade: C3
Elevation: 3000m（derating above 2000m）
Cooling method: air cooling
EMS communications: Ethernet/RS485/CAN/USB
<
