Sale! PYLONTECH, Pylontech MBMS Master BMS controller HUB voor parallelle aansluiting van meerdere PowerCube, Battery monitor, SO011 View larger

Pylontech MBMS Master BMS controller HUB voor parallelle aansluiting van meerdere PowerCube

SO011

New

Download

Data sheet

Manufacturing number PYLONTECH MBMS

More info

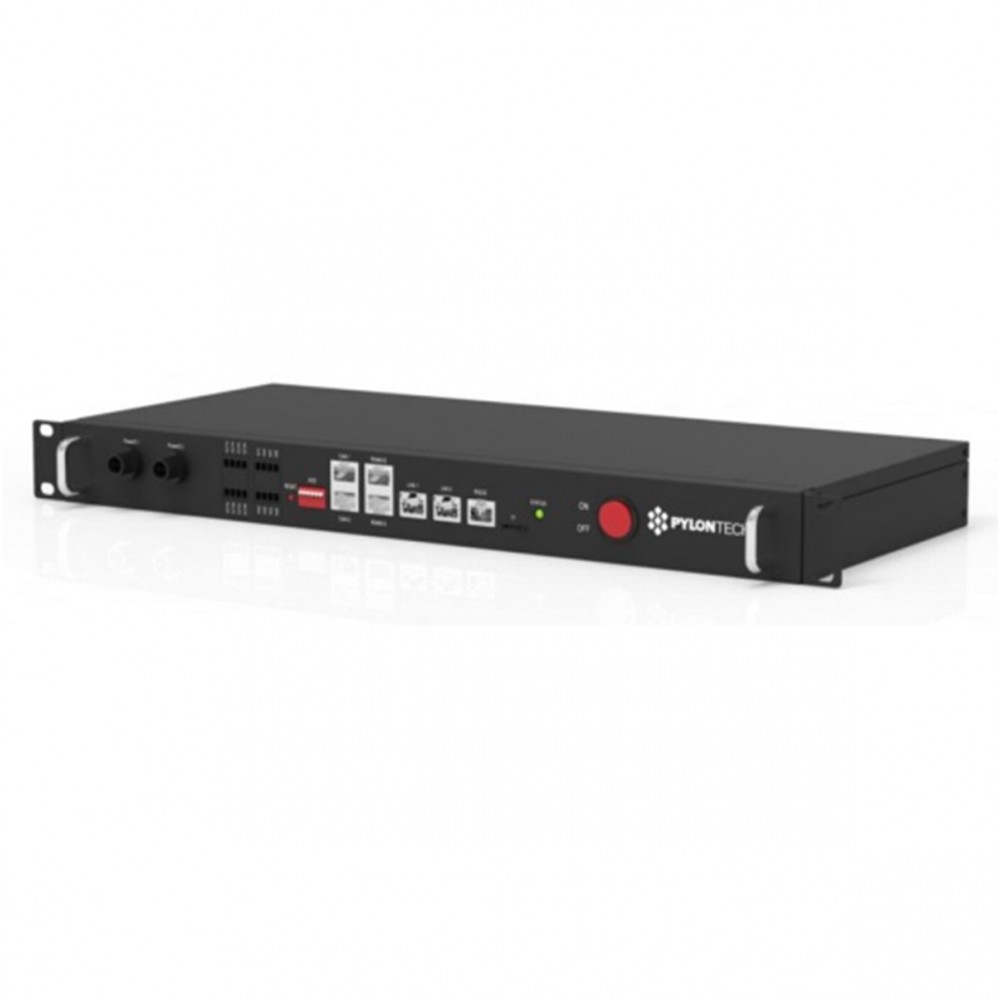

Pylontech MBMS is the controller for multiple battery piles in parallel connection.
Suitable for use with the PowerCube X1, X2, H1 and H2 ESS ranges.
The MBMS allows for parallel connect of up to 6 individual systems.

Specifications:
Operating Voltage (Vdc): 12VDC

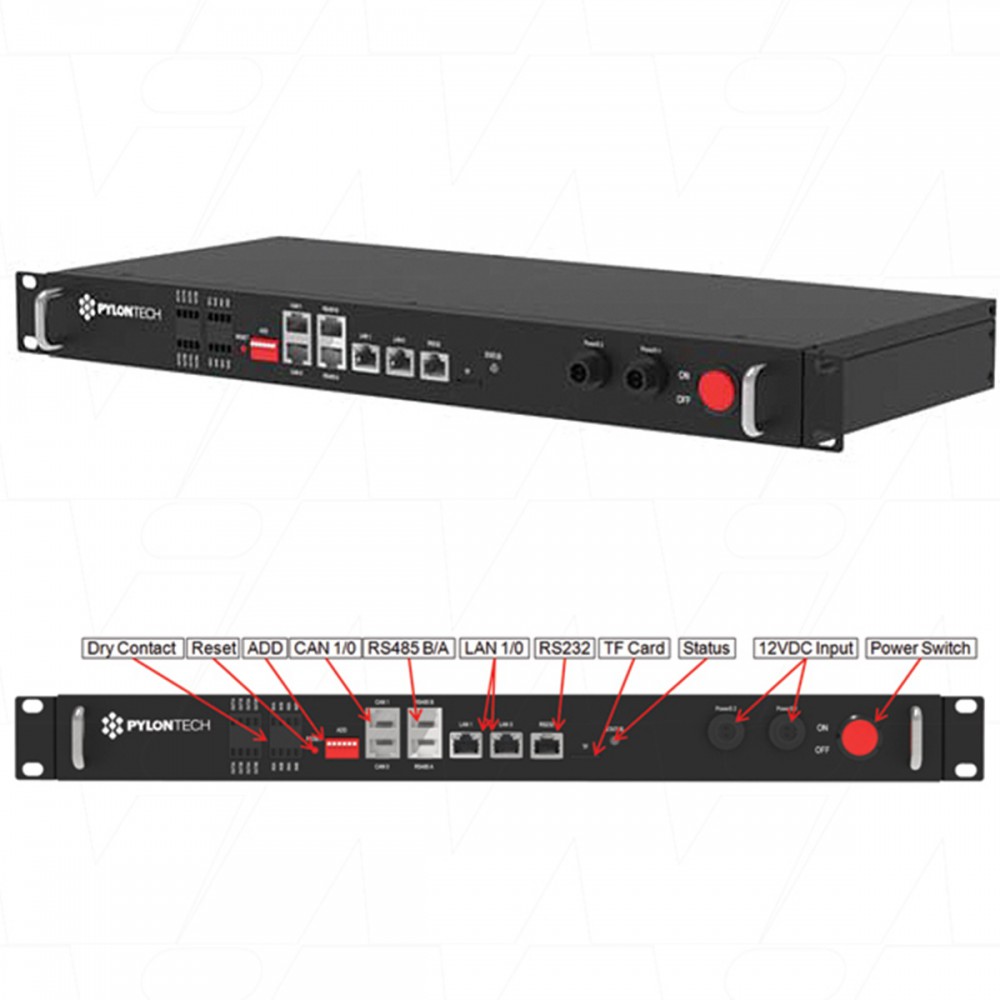

Communication Ports: RS485 x 2 / CAN x 2 / Ethernet x 2
Output dry contact interface: 4 Groups
Input dry contact interface: 2 Groups
System Consumption: 2W
Dimension (LXWXH - mm): 442 x 190 x 44
Weight (kg): 5
Protection Class: IP20
Operation Temperature: -40~80°C
Storage Temperature: -40~80°C
