SO011
New
Wholesale prices only for: registered companies (click here)
Warning: Last items in stock!
Estimated availability and shipping date:
| Manufacturing number | PYLONTECH MBMS |

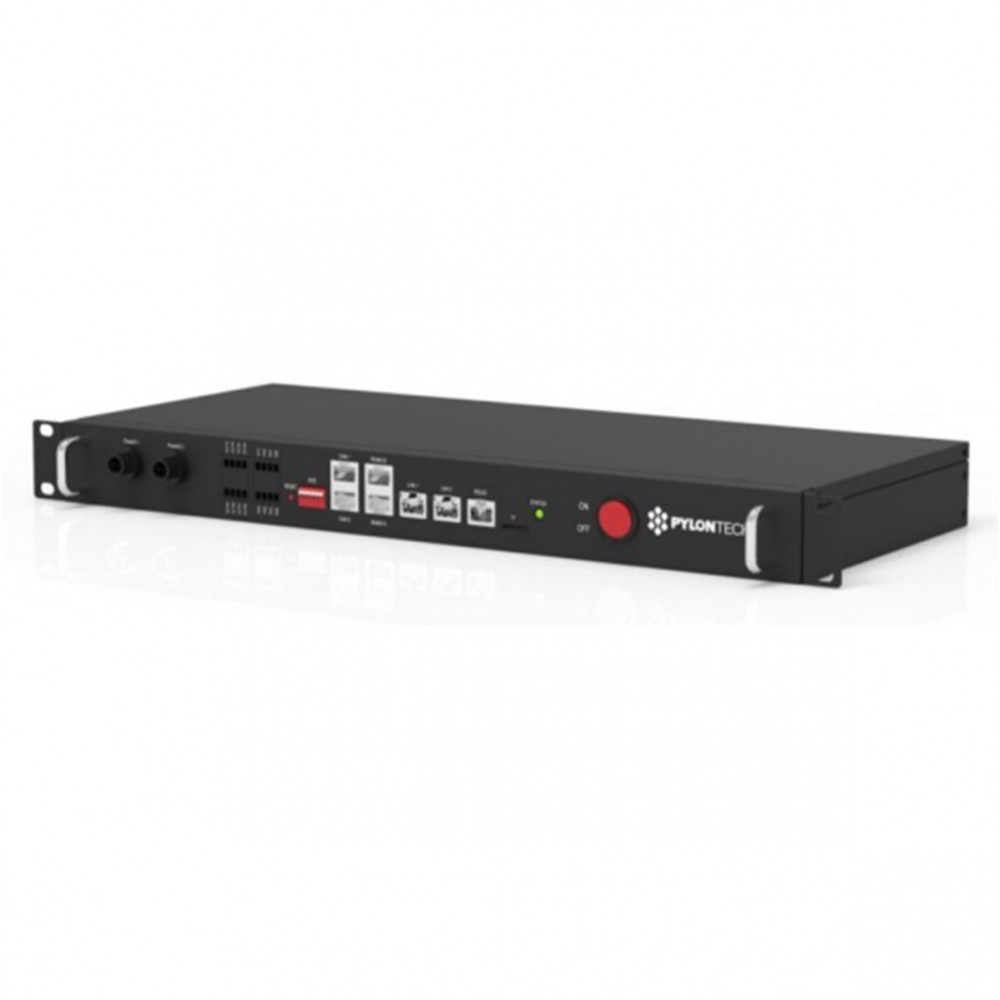

Pylontech MBMS is the controller for multiple battery piles in parallel connection.
Suitable for use with the PowerCube X1, X2, H1 and H2 ESS ranges.
The MBMS allows for parallel connect of up to 6 individual systems.
Specifications:
Operating Voltage (Vdc): 12VDC

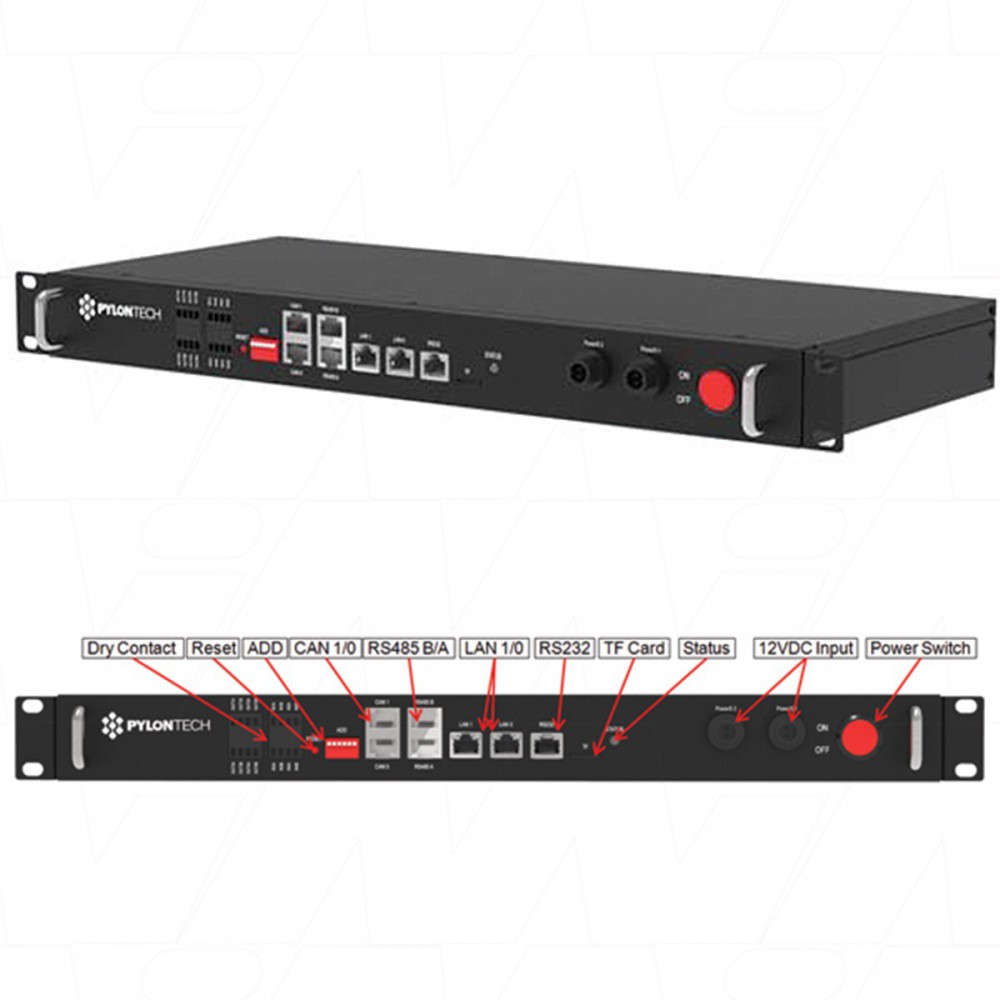

Communication Ports: RS485 x 2 / CAN x 2 / Ethernet x 2
Output dry contact interface: 4 Groups
Input dry contact interface: 2 Groups
System Consumption: 2W
Dimension (LXWXH - mm): 442 x 190 x 44
Weight (kg): 5
Protection Class: IP20
Operation Temperature: -40~80°C
Storage Temperature: -40~80°C
