Belcom, Belcom Cat5e mounted RJ45 comm. cable - 10m, Cabling and connectors, SE006 View larger

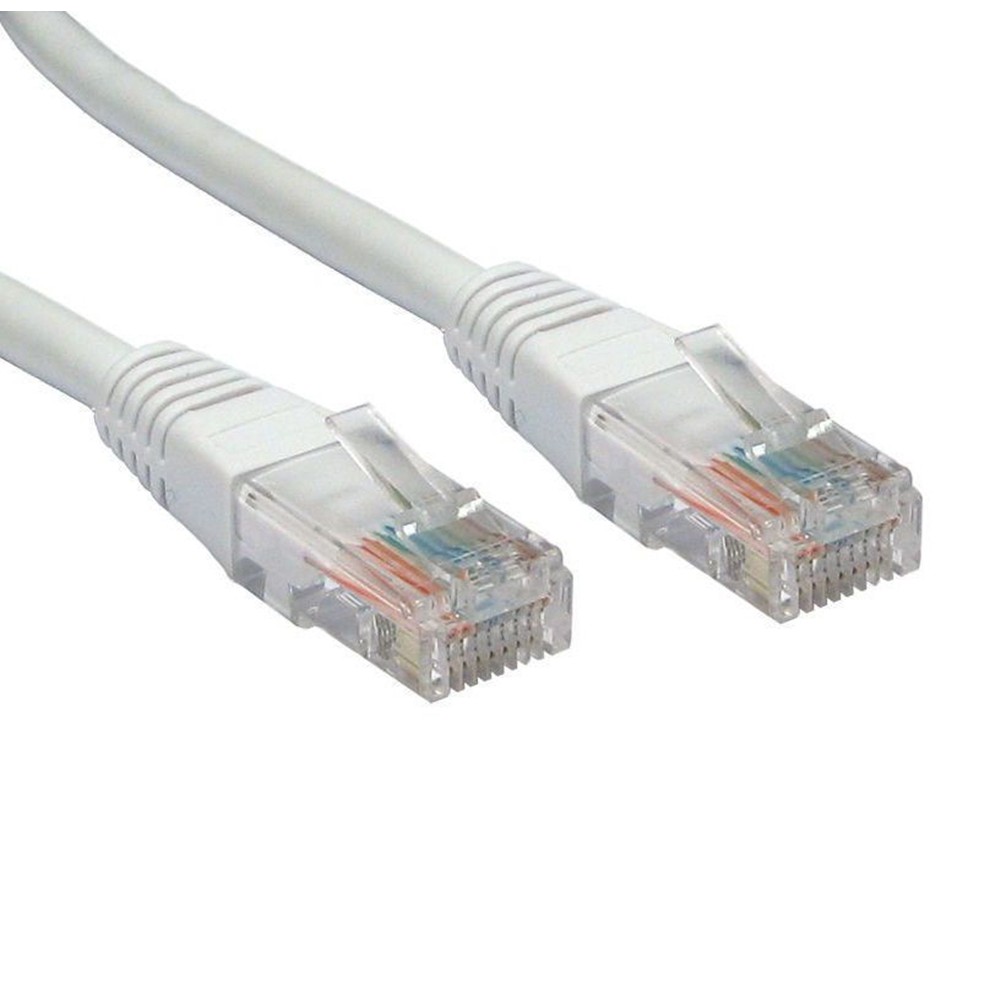

Belcom Cat5e mounted RJ45 comm. cable - 10m

SE006

New

Download

Data sheet

Manufacturing number 1858

More info

High speed data transmission functionality designed typically for use in horizontal cable
installation of local computer networks. IEEE 802.3, IEE 802.5, FDDI, ATM, RNIS. These
cables operate to the protocol supported by Class D as set out in ISO/IEC 11801 although
they can transmit at frequencies of up to 200MHz..

SureLAN® 5e F/UTP LSZH FireFighter IEC60332-1
Manufacturer product number: 1858
Conductor Solid bare copper wire (24awg)
Diameter Ø 0,500 mm
Insulation Polyethylene (PE)
Diameter Ø 0,95 mm
Core identification WHBU/BU - WHOG/OG - WHGN/GN - WHBN/BN
Assembly 2 cores twisted to a pair
Core 4 Shielded pairs
Drain Wire Solid tinned copper
Screen Aluminium/polyester tape
Outer Jacket LSZH FireFighter®
Diameter Ø 6,00 ± 0,25 mm
