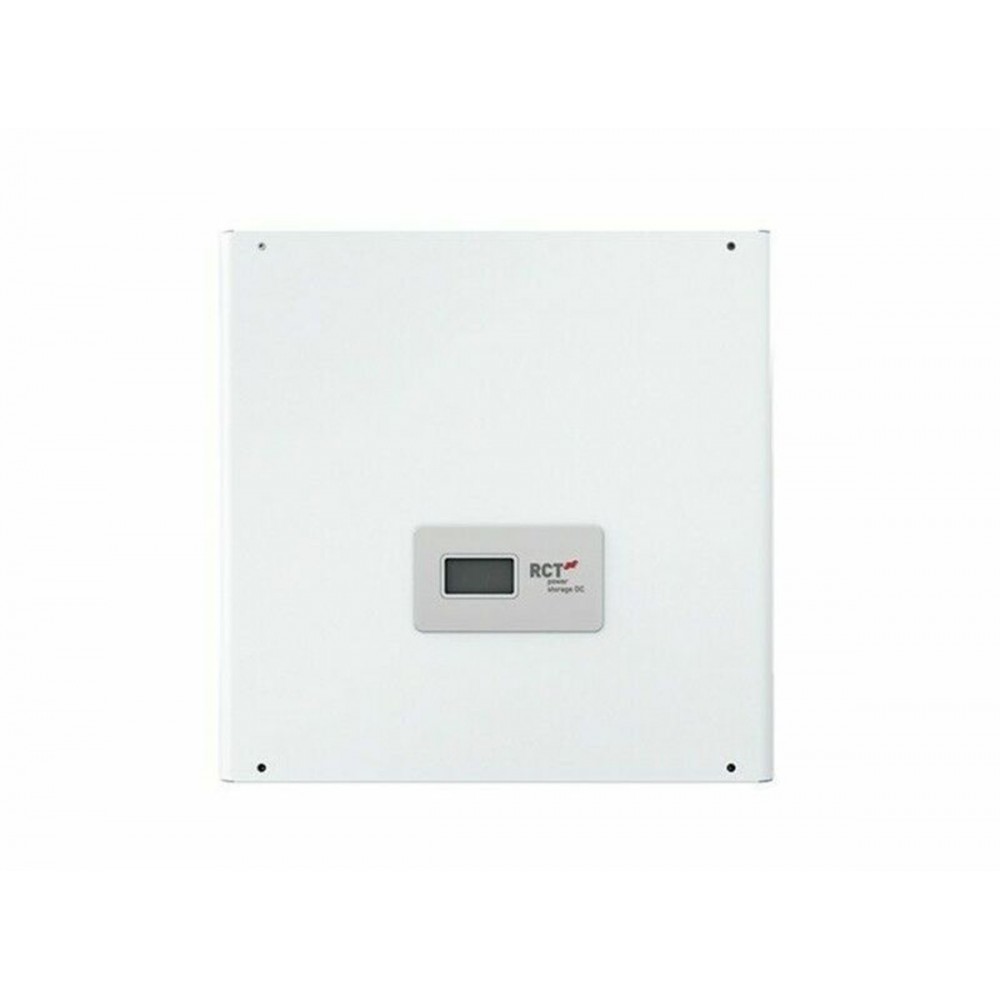

RCT Power Storage DC
Battery Inverter for Storage Systems
You have better things to do than paying high electricity bills? Why not optimise your own consumption and save money? The RCT Power Storage DC is a clever inverter with battery connection to enable private consumption of the solar energy you have generated with your photovoltaic installation. It distributes solar power intelligently, optimises yield and utilises the battery responsibly.

Programmable Switch outputs ensure that excess current is not fed into the grid but is purposefully directed towards your heat pump, your electric car or other devices.

Flexible:
”Fits all”-technology for all solar modules and string layouts
Upgradable hybrid inverter
Up to 100% Symmetry of the MPP controllers
Input voltage range between 150V and 1000V
Substitute power supply

Simple:
System monitoring via RCT Power App
Pre-installed country parameters
Integrated network services functions
Dynamic power control
Compact and lightweight housing made of durable aluminium
Tool-free DC- and AC connection

Efficient:
Two independent MPP controllers, parallel connection option
Three phase power feed-in
Transformer-less topology
Max. efficiency (PV – Grid) 98,16%
Max. efficiency (PV – Grid -Battery) 94,4%
High voltage battery connection

Sustainable:
Predictive load management
Efficient heat sink: silent, maintenance-free, fanless cooling
Acknowledged – efficient and flexible
This hybrid inverter is customized to work with all RCT Power system components. By using these high voltages we keep charging/discharging currents low and the temperature cycle within the battery at a minimum. Especially for Lithium Ion cells of all designs we achieve a significantly increase in battery lifetime compared to 48V battery systems. The RCT Power Storage DC inverter has two independent MPP Solar DC inputs with a wide voltage range and a three-phase AC power output of 6kW. An efficient heat sink ensures silent and maintenance free cooling.

It is for these reasons that the Federal Ministry for Economic Affairs and Energy has supported our inverter during the development phase and commended it as a flagship project in the renewable energy sector.

Data protection and your security is important to us
Data protection is a serious topic – that also applies to Solar energy storage systems. The security of your private data is important to us. Together with the Fraunhofer Institute for Solar Energy Systems in Freiburg we have developed a predictive load management system method that does not require Internet connectivity. You are in control of access to the system and the security of your personal data.
DC-coupled battery inverter for residential and commercial installations

Weight: 26 kg
Rated power: 8,000 W
Min PPT voltage: 150 V
Max PPT voltage: 800V
DC Startup voltage: 150 V
DC Shutdown voltage: 150 V
Max input voltage: 1,000 V
Max DC Power: 13,200W
Max AC Power (5 Minutes): 10,500 W
Surge AC Power (1 Second): 15,180W
Max DC Current: 28 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 0
Euro Efficiency: 98.33%
Transformer: None
MPPT Quantity : 2
Integrated DC switch?: Yes
Warranty: 10 years
