Huawei, Huawei 6.9kWh LUNA2000-7-E1 S1 Battery Unit Smart String Energy Storage System ESS, Solar Batteries, SE390 View larger

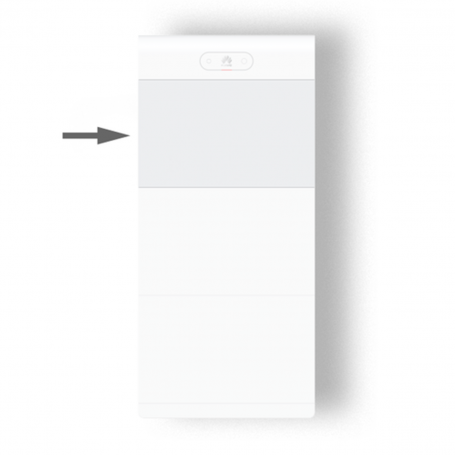

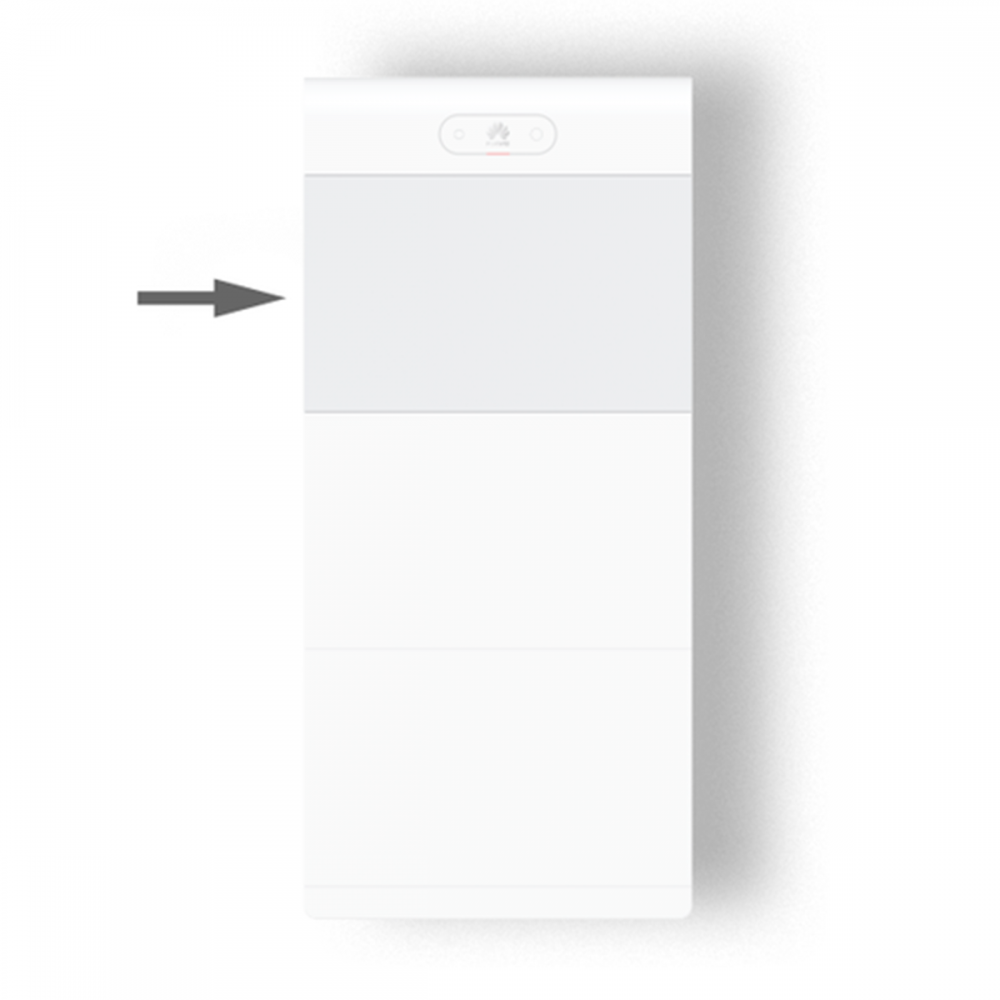

Huawei 6.9kWh LUNA2000-7-E1 S1 Battery Unit Smart String Energy Storage System ESS

SE390

New

Download

Data sheet

Made in China
Manufacturing number LUNA2000-7-E1
Special freight Yes

More info

The Huawei 6.9kWh battery module for the new Huawei LUNA2000-7/14/21-S1 smart string energy storage system

Safe cell chemistry (lithium iron phosphate, LiFePO4)
5-layer safety protection: cell level, electrical level, structural level, active protection, emergency protection
6.9 kWh usable capacity per battery module
Scalable from 6.9 kWh to 20.7 kWh per tower (wireless connection between modules)
Up to 4 towers with 82.8 kWh for one inverter (when using the MB0 series)
Depth of discharge: 100% DoD
Ultimate using experience: -20 ℃ to +55 ℃ Operating temperature
Max. 10.5 kW charging and discharging power per group. Super quiet operation
IP66 certification
Installation: tripod (standard), wall mounting (optional)
Extinguishing set per battery module
Weight: 68 kg (per battery module)
Dimensions (W x D x H in mm): 590 x 255 x 360
Warranty: 15 years
Compatible inverters:
SUN2000-12/15/17/20/25K-MB0
SUN2000-3/4/5/6/8/10KTL-M1
SUN2000-8/10K-LC0
SUN2000-2/3/3.68/4/4.6/5/6KTL-L1
