New DG RUBBER HOLLAND, Battery cable red 50mm² - 1 meter - 2x M10 eye, Battery Cables, DG002-50-1M-RE-2XM10 View larger

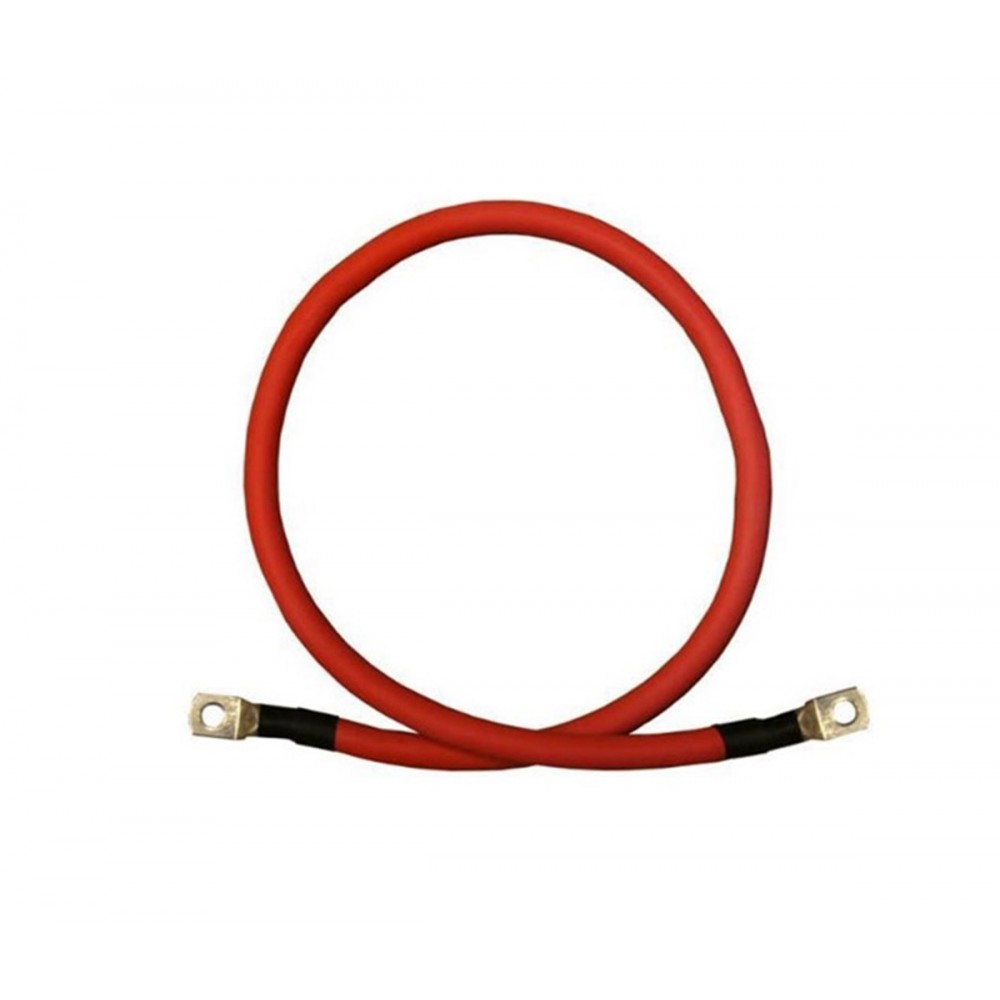

Battery cable red 50mm² - 1 meter - 2x M10 eye

DG002-50-1M-RE-2XM10

New

More info

Double insulated battery cable, oil resistant and very flexible
Conductor: Electrolytic / annealed copper (Class 6)
Insulation (around conductor): PVC (Natural)
Insulation sheath: NBR PVC (RAL 3000 Red / RAL 9005 Black / RAL 2008 Orange)
Cable surface: 50mm²
Cable cross-section: 13.10mm
Max R (Ω/km): 0.386
Max current: 169A
Cable weight: 531kg / 1 km cable
Bending Radius: x10 outer diameter for fixed installation
Working voltage: 0.6 / 1 kV
Test voltage: 3.5 kV
Temperature range: -40 °C + 70 °C
Flame spread: IEC 60332-1-2
Standards:
- IEC 60811-1-1 insulation and sheath material, standard test methods;
- IEC 60228 Conductor of insulated cable;
- IEC 62230 Electric cable spark test;
- IEC 60060-1 High voltage test techniques
