Manufacturing number | BPP900800150 |

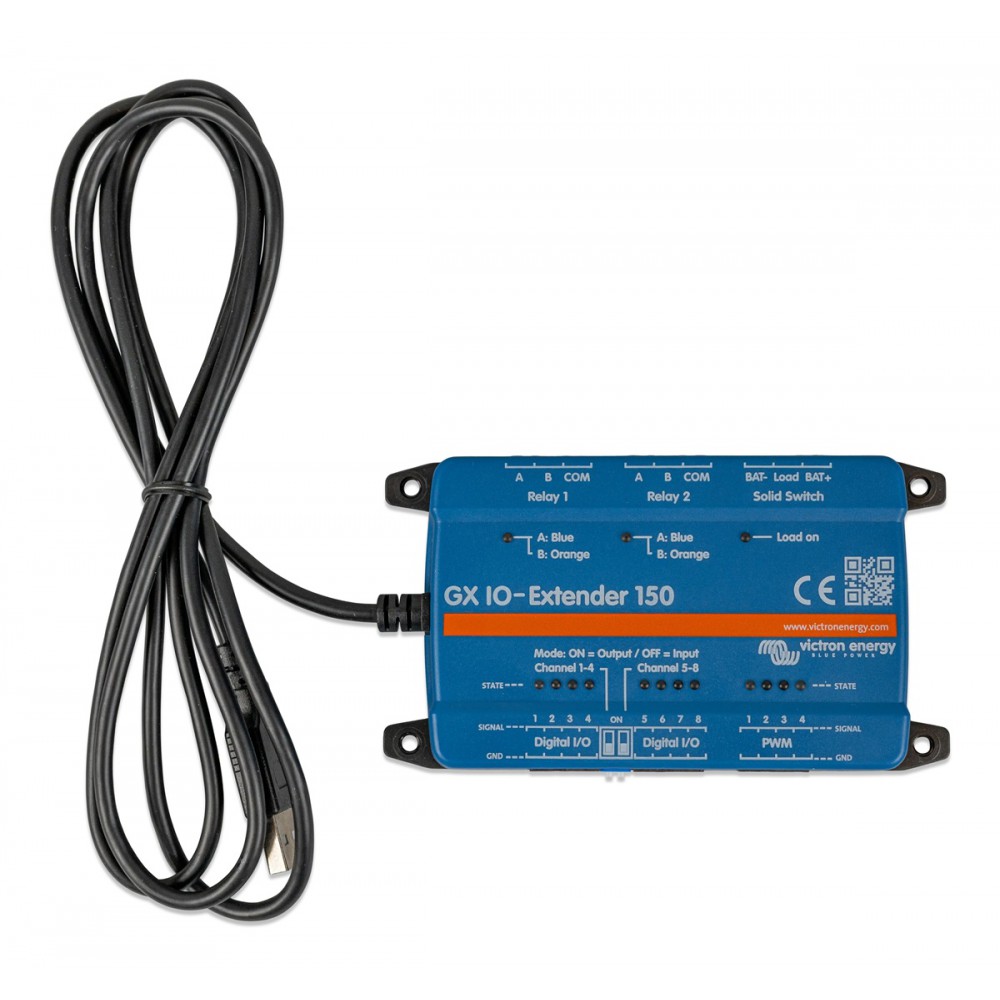

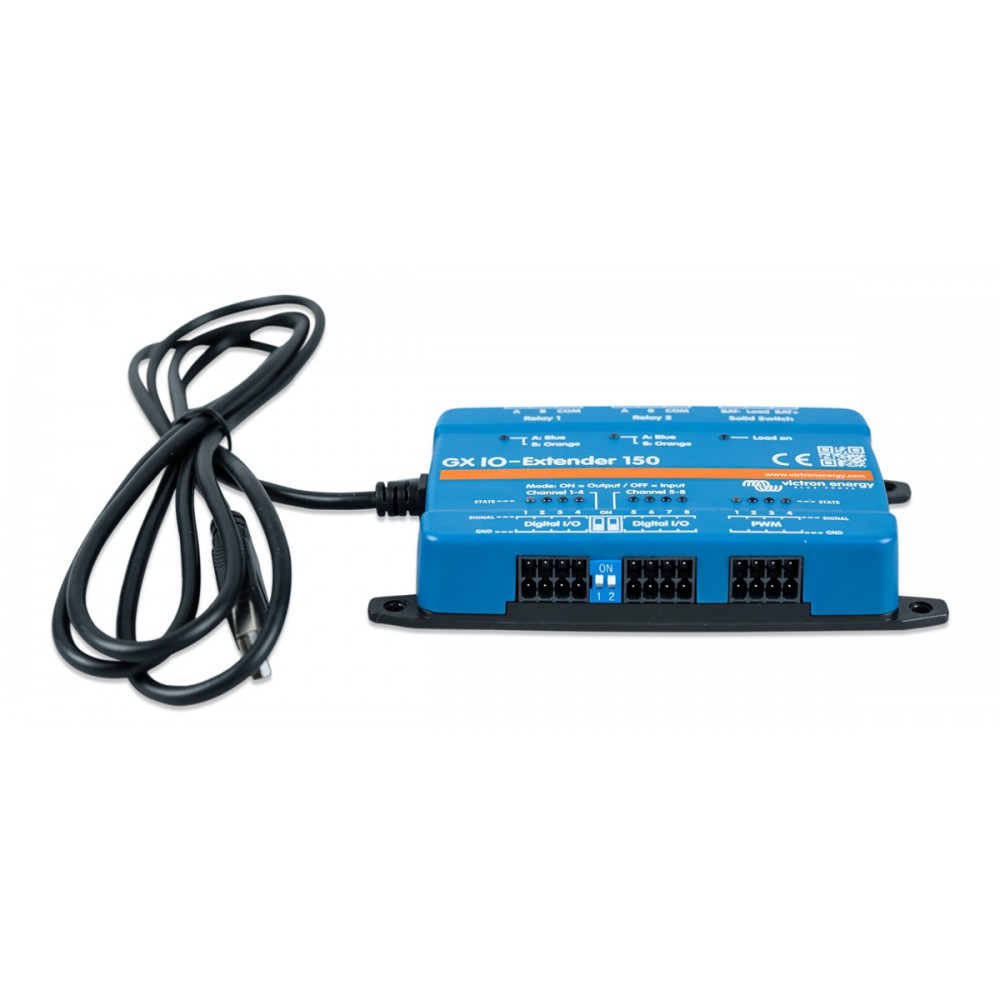

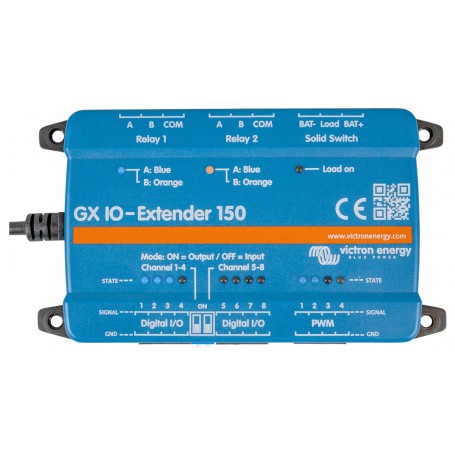

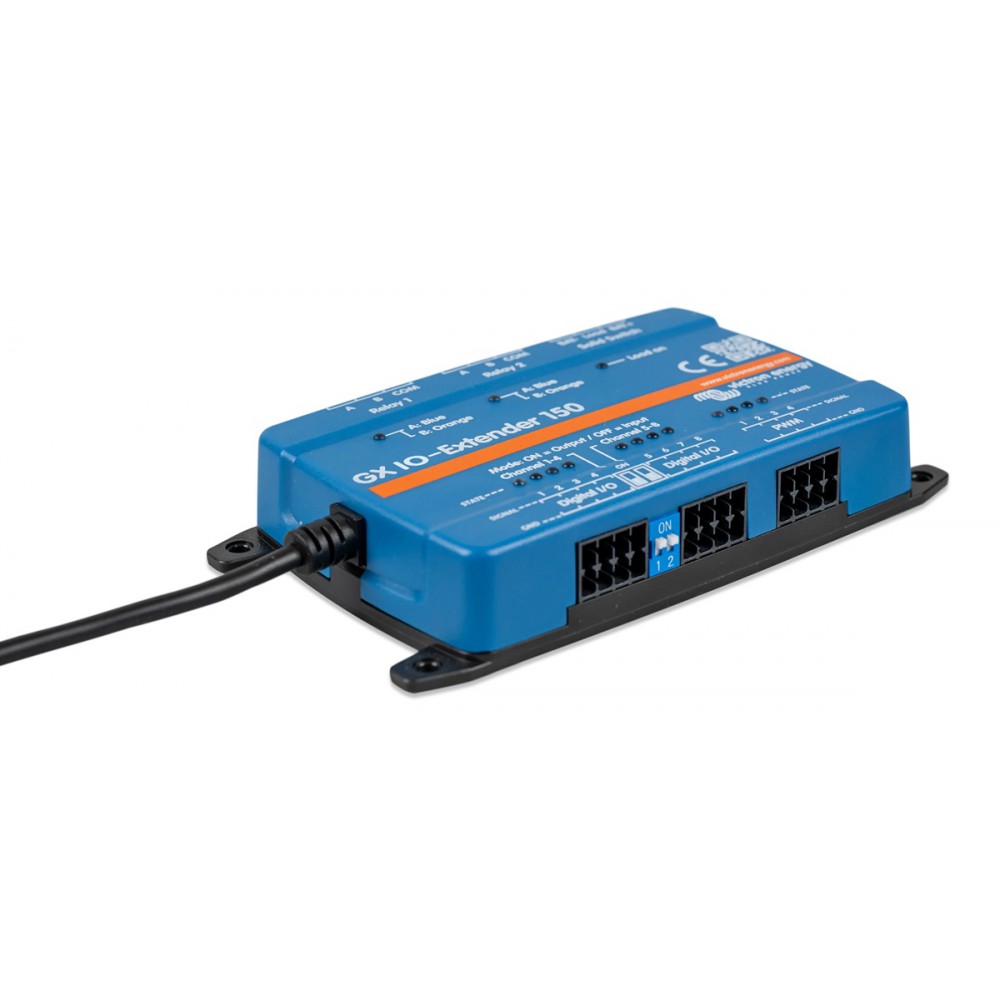

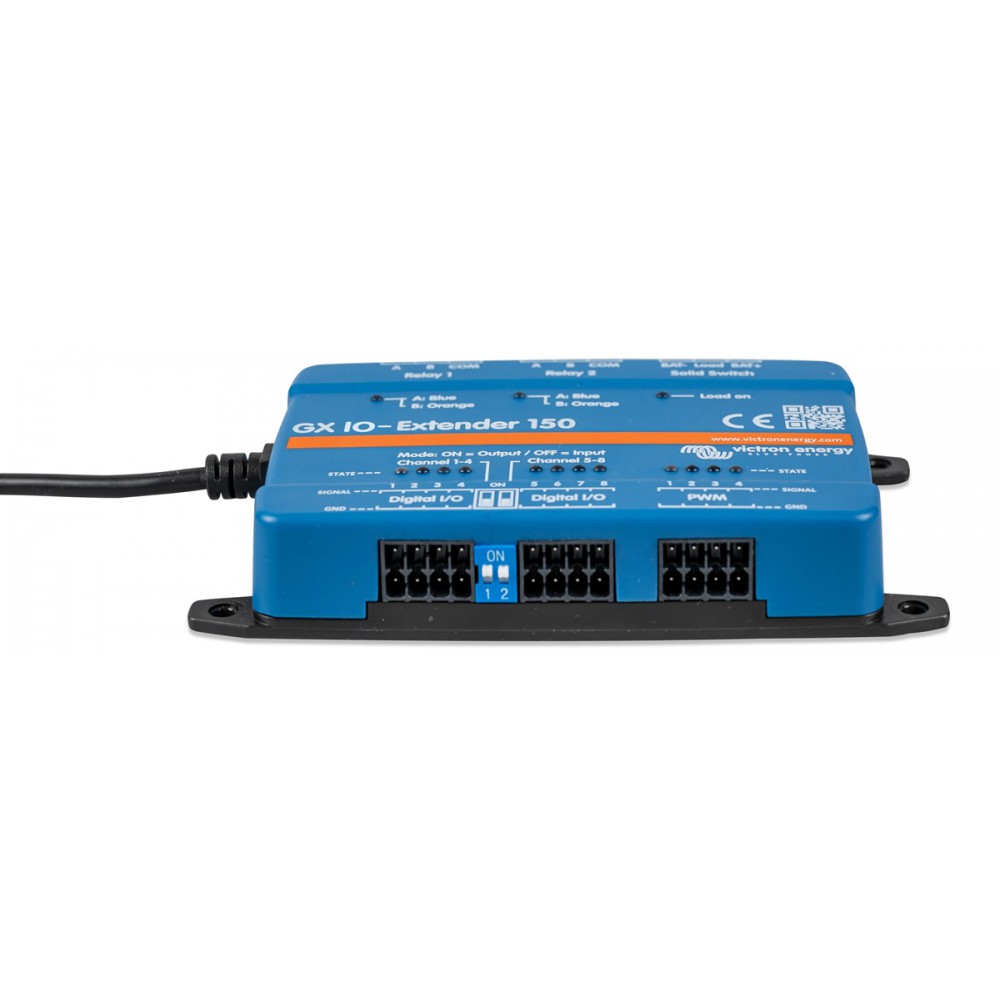

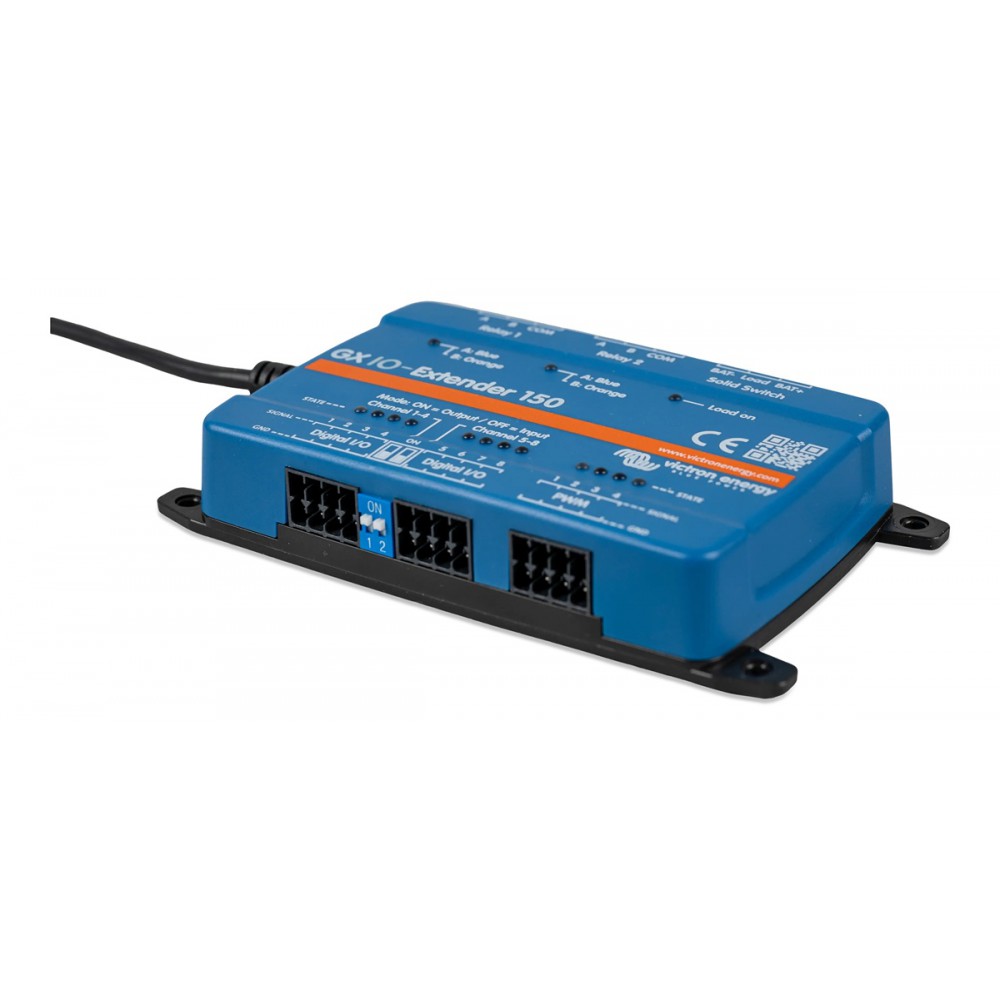

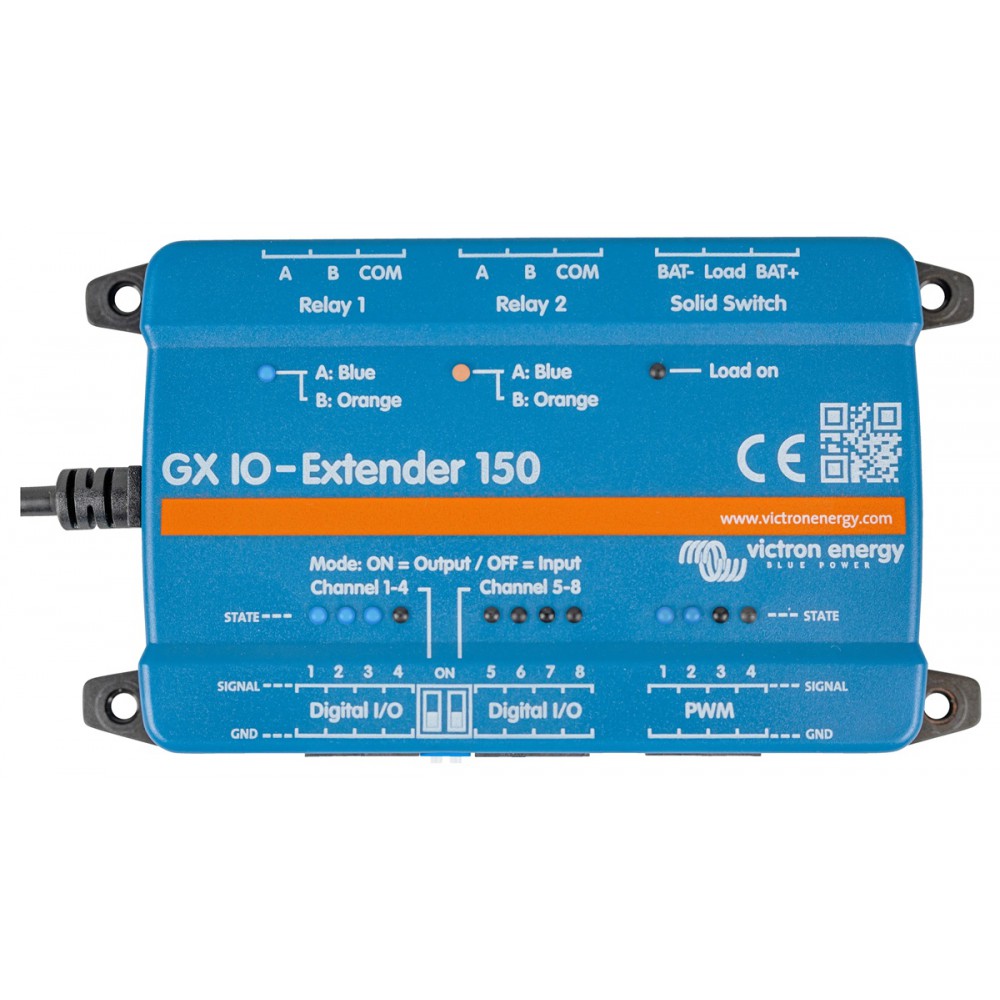

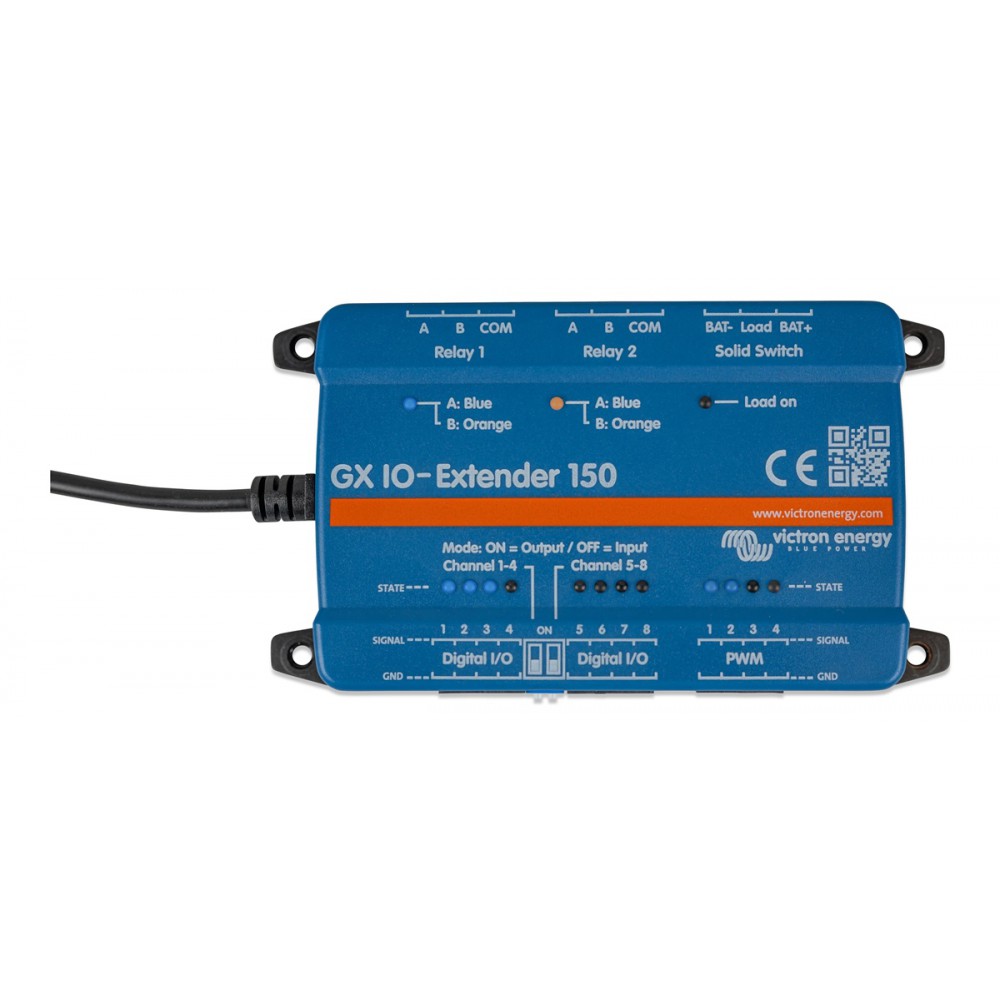

The GX IO-Extender 150 enhances the input and output (I/O) capabilities of a GX device, enabling seamless integration with additional sensors, controls, and external devices. It connects via USB, which also serves as its power source, providing a simple and efficient expansion solution. The device can be controlled using Node-RED on the GX device as well as the Switch pane in the user interface.
FEATURES:
8 digital I/Os, configurable as 8 inputs, 8 outputs or 4 inputs + 4 outputs
PWM output for precise control applications
Two latching relays for low-power switching
A solid-state relay (SSR) for high-speed switching of DC loads that can be resistive, capacitive or inductive (such as the coil of a high-power contactor)
Pluggable spring terminals for fast and secure connections
Configurable via Node-RED for easy automation and custom logic
