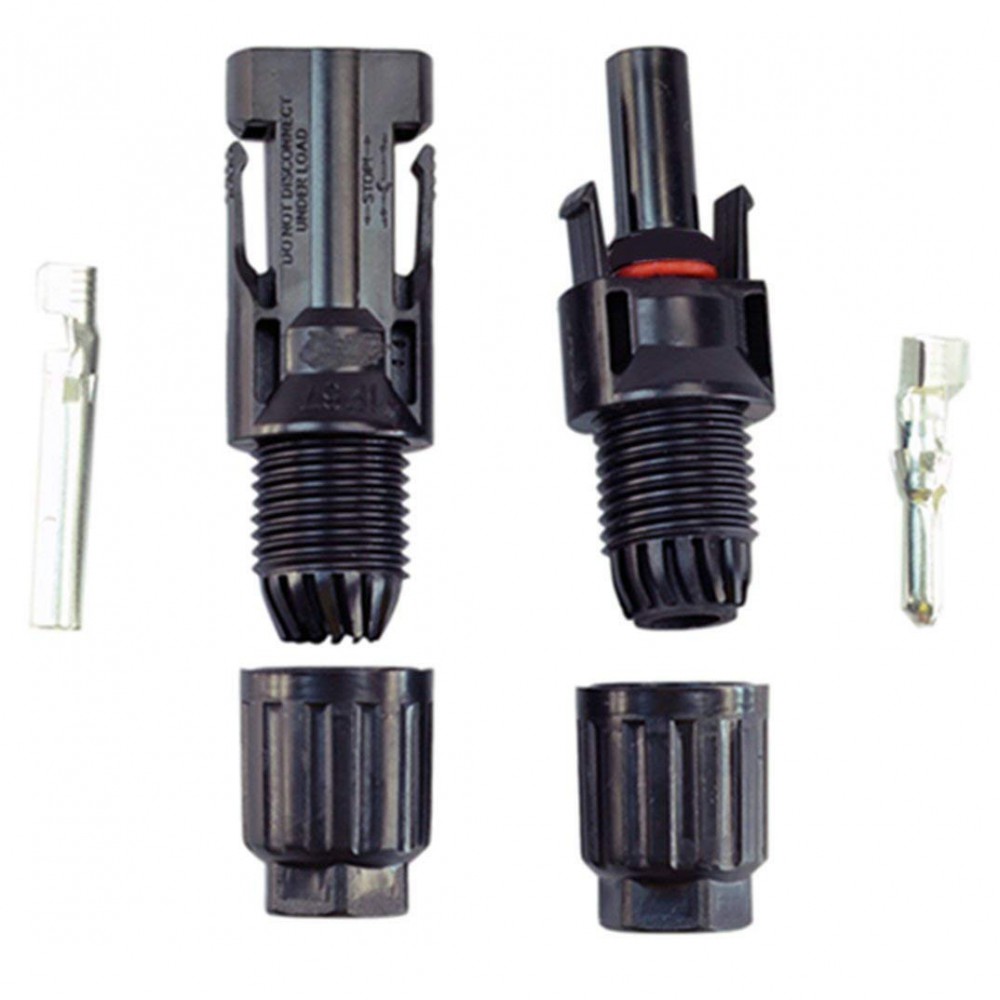

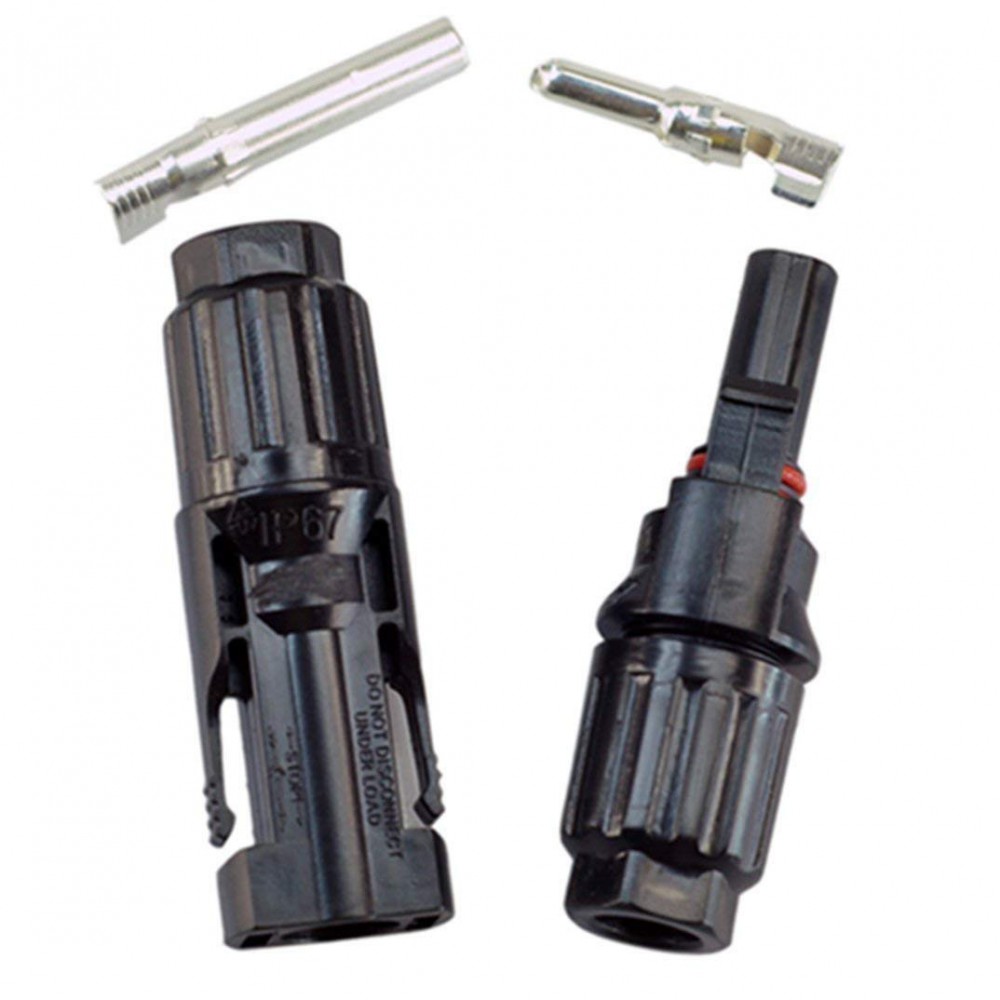

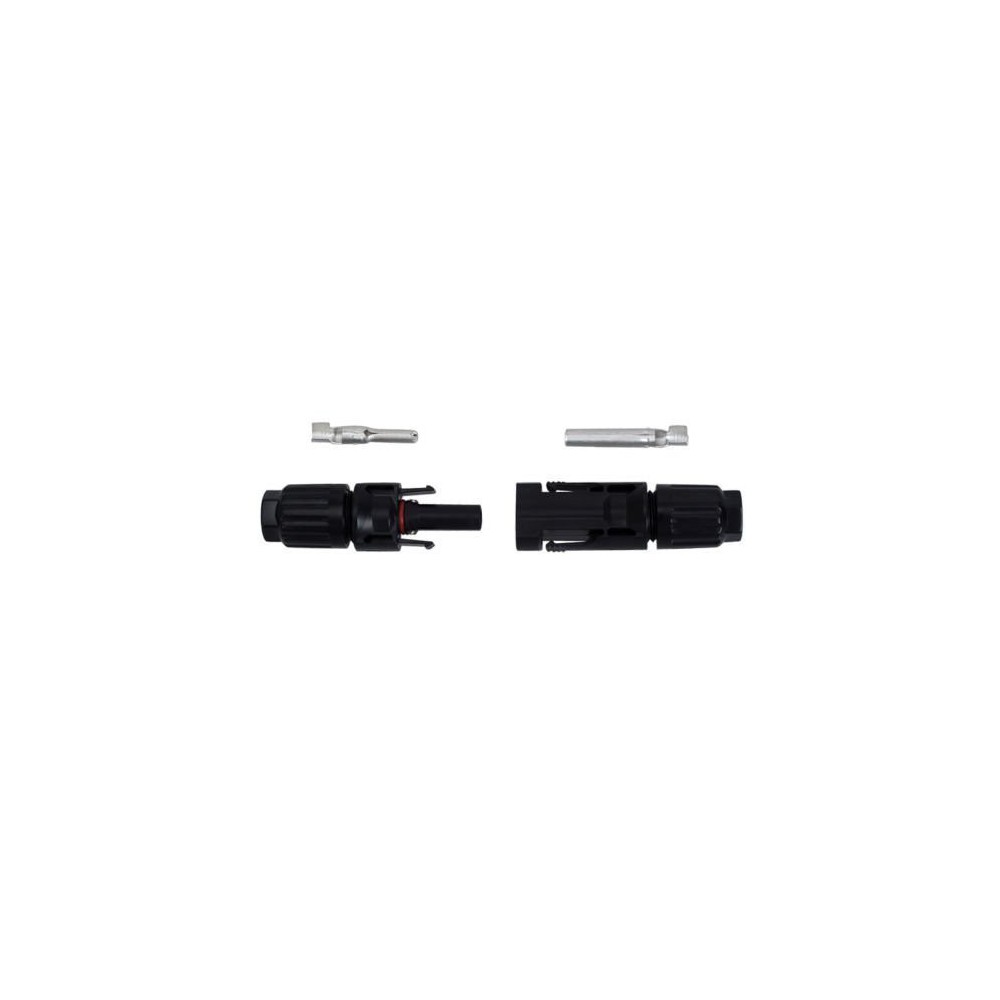

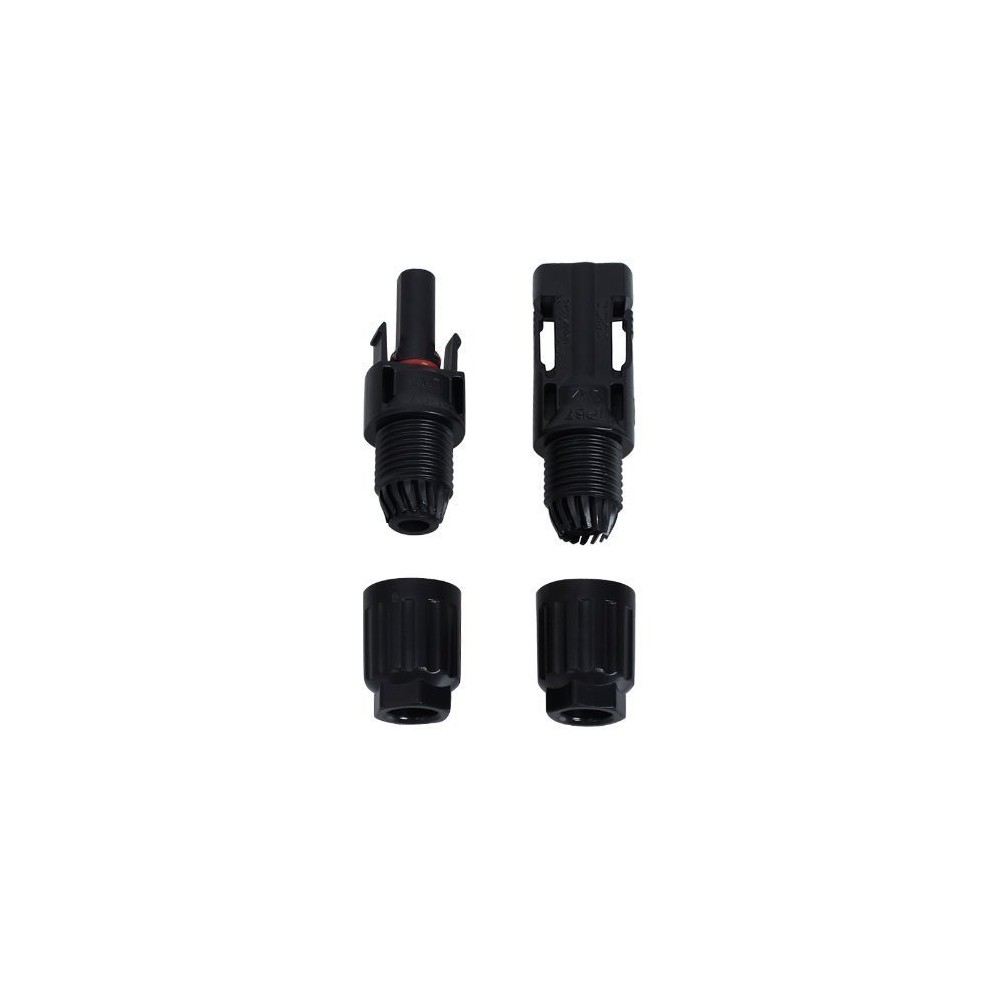

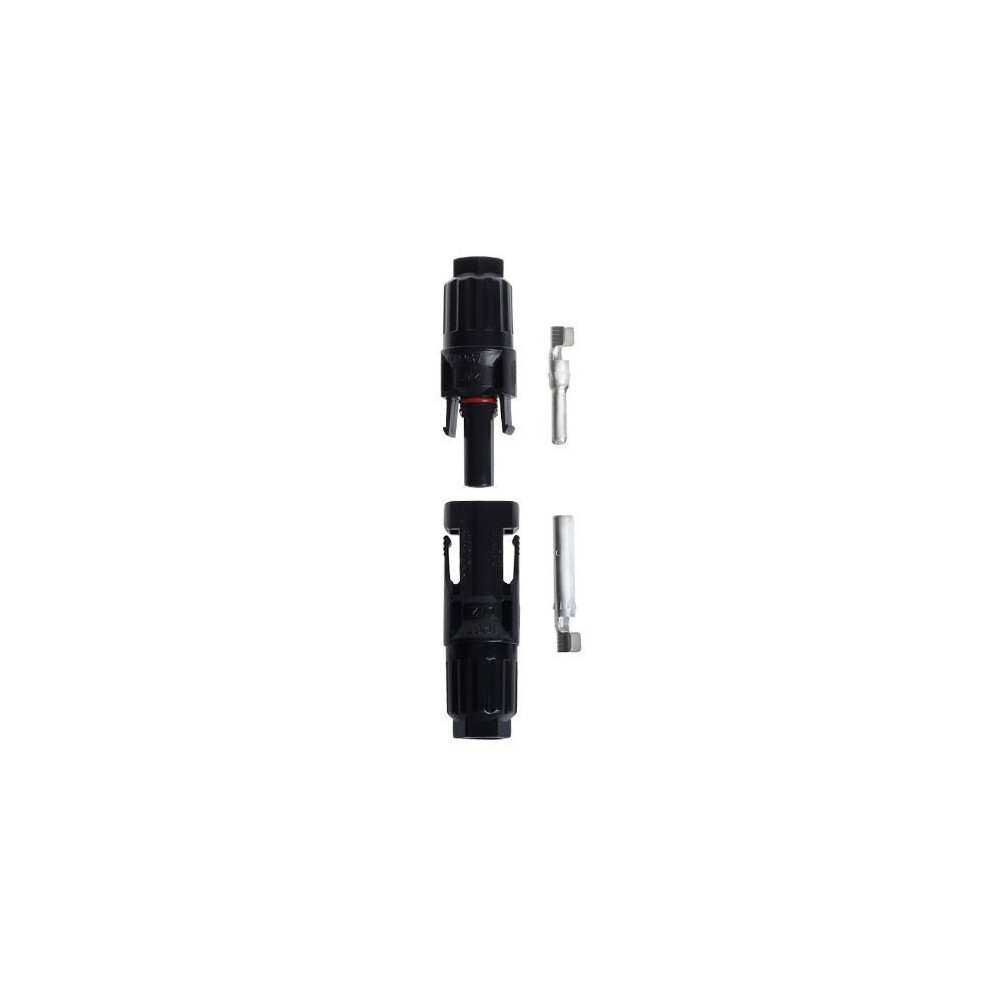

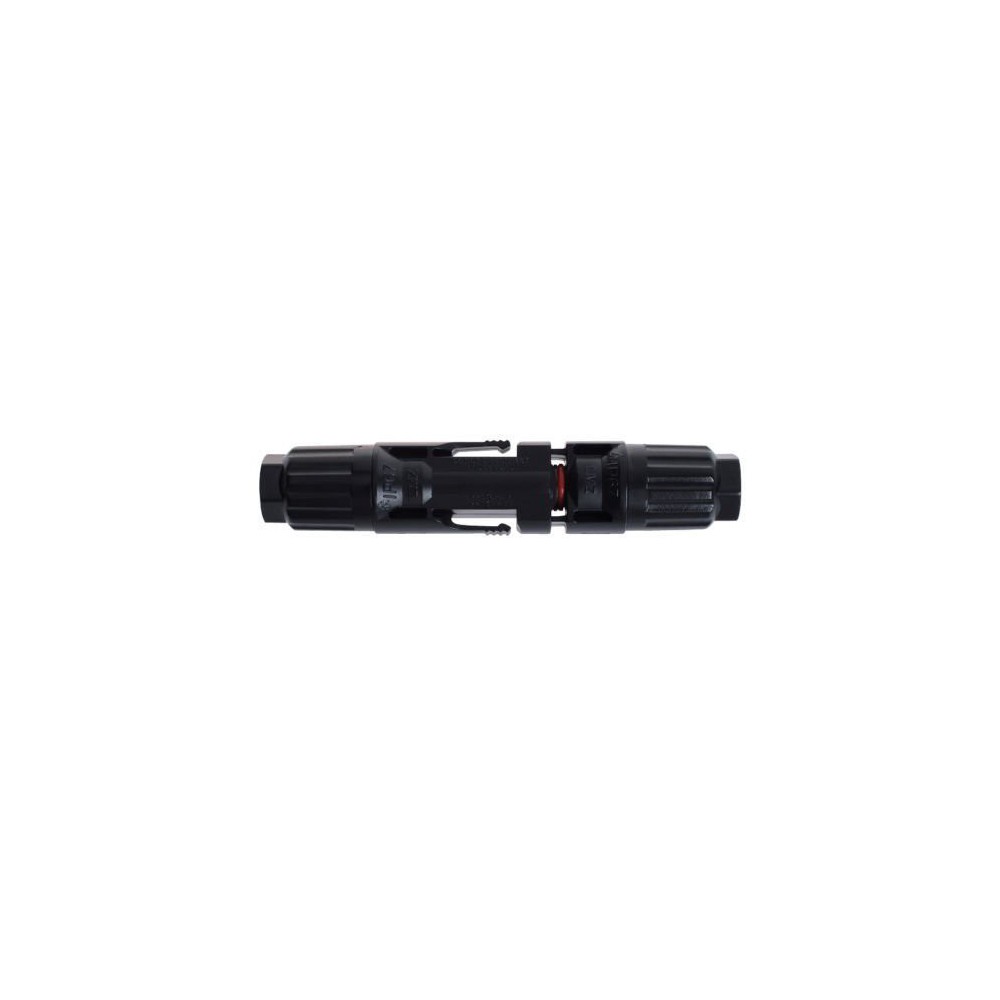

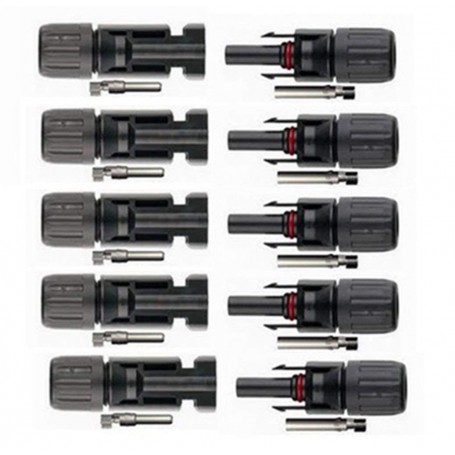

5Pairs MC4 DC Solar Panel Connector male - female 30A 1000V

AL289

New

Data sheet

Type Solar panel connector
Style Male to Female
Target platform Solar energy elements
Compositions Plastic
Amperage 30A
Voltage 1000V
Wattage Does not apply
Characteristics No specific properties
Color characteristics Black
Length characteristics Does not apply
IP Value IP67
Warranty 2 years
Made in China
Manufacturing number MC4

More info

Item type: MC4 Solar Panel Connector
Rated voltage: 1000 V
Rated impulse voltage: 1000 V
Rated current: 24A - 14 AWG (2.5mm⊃2;), 30A - 12 & 10 AWG (4mm⊃2; & 6mm ⊃2;)
Test voltage: 6 kV (50 Hz)
Protection grade: IP67
Insulation material: PC/PA
Contact material: Copper, silver-plated
Operating temperature: -40°C ~ +90°C
Safety class: II
Flame class: UL94-V0
Contact resistance: ≤5mΩ
Insertion / Withdrawal force: ≤50N / ≥50N
Suitable for cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm⊃2;)
Locking system: Snap-in
