ESDEC FlatFix Fusion wind deflector rear 1700
Manufacturer production number: ESD-1007209
Package contents: 1 piece
Colour: Silver

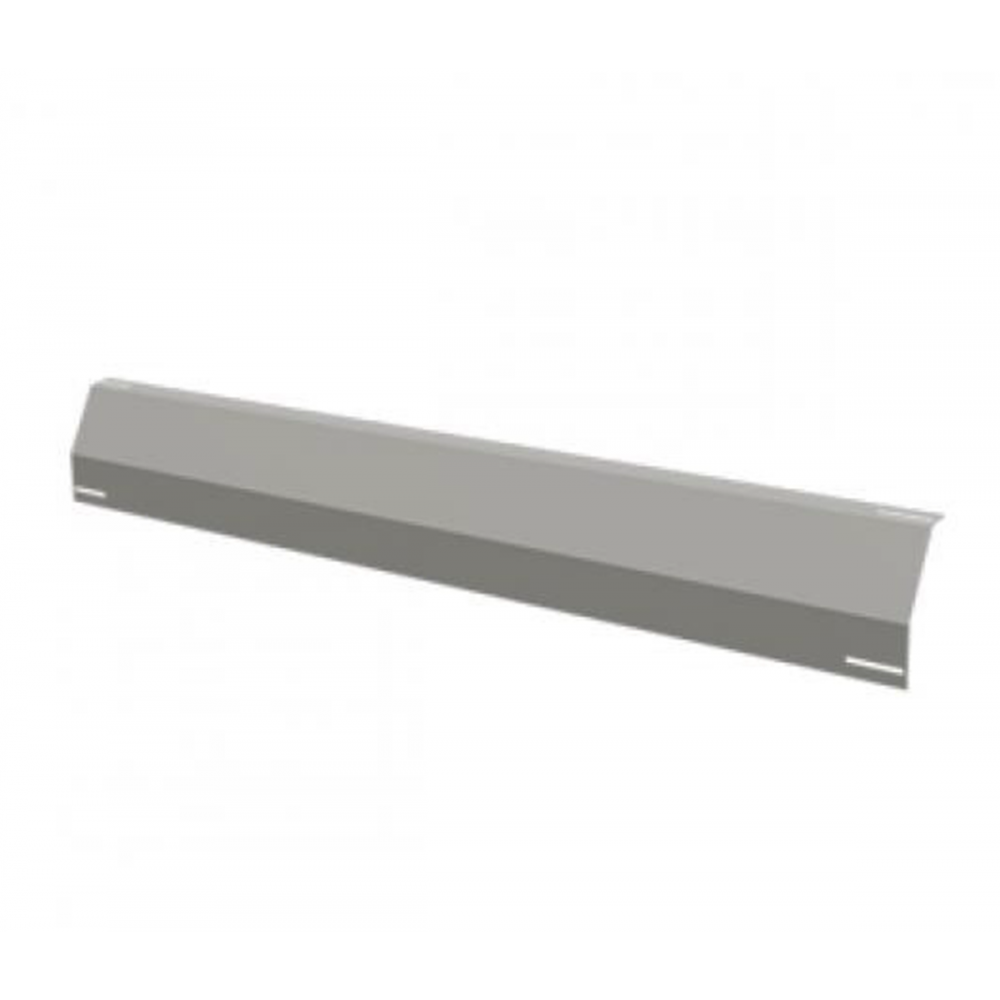

The FlatFix Fusion rear wind deflector 1700mm from Esdec is suitable for flat roofs. By mounting the wind deflector on the high basic elements at the back of the solar panels, it can be grounded. When placing the first wind deflector, it must fall between the upright lugs of the high base elements. The earthing corner is then attached to the base profile and to the back of the wind deflectors with a mounting screw (6.5 x 19). Only one side of the wind deflector must be mounted to the high base element, by screwing the mounting screw into the hole of the grounding corner and into the 2 slotted holes on the high base element. Make sure that the mounting screws do not loosen in the base element.

The second wind deflector that you place at the back of the solar panels should also fall between the upright ridges of the high base elements and overlap slightly with the first wind deflector. The same steps are repeated until all wind deflectors are installed. The FF100-7209 has a length of 1700mm and can be used with a panel length of 1655mm to 1795mm.

ESDEC Flatfix Fusion

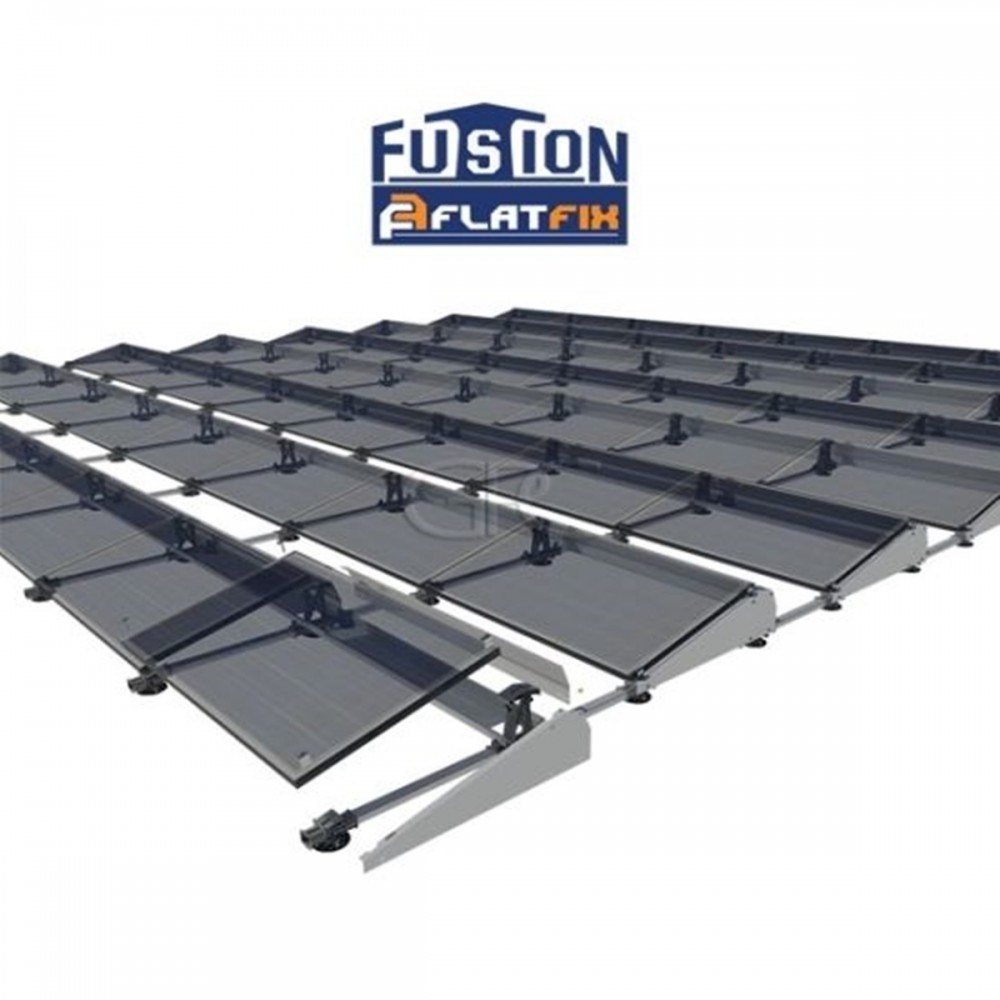

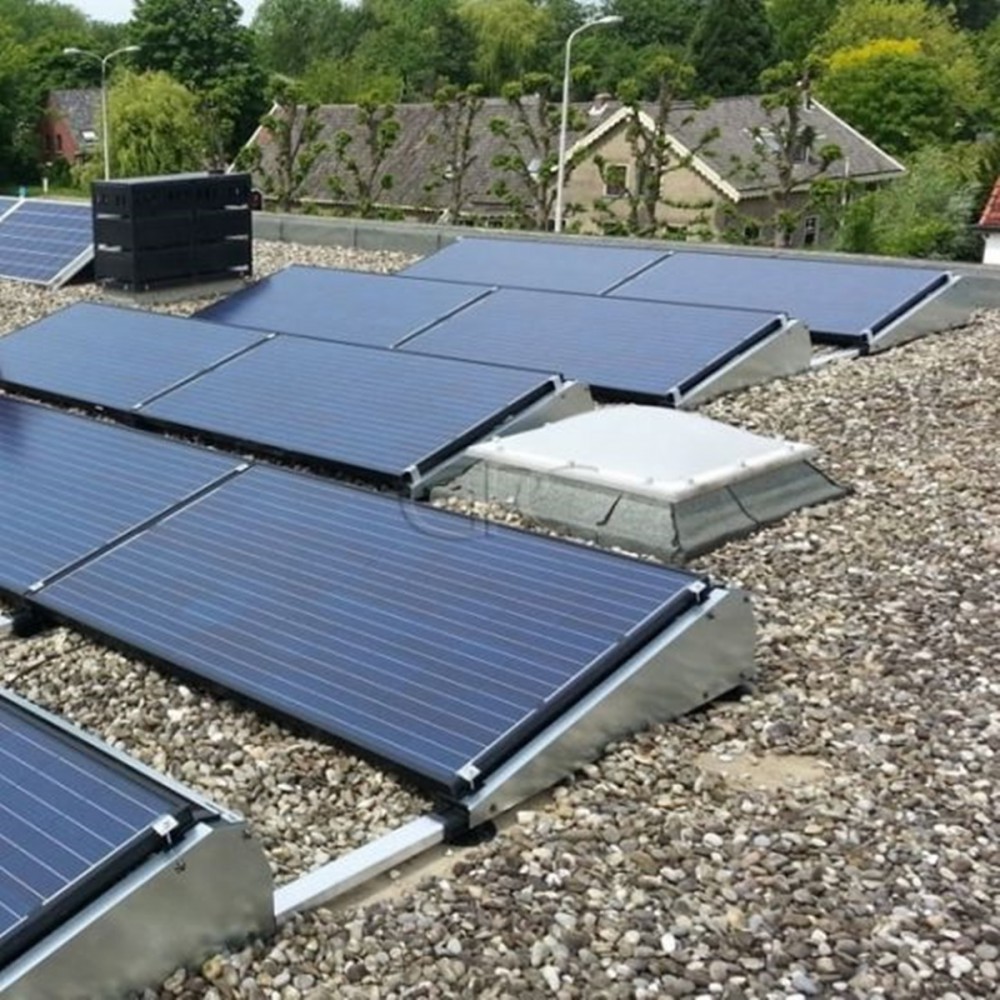

Flatfix Fusion is a brand of the Dutch company ESDEC that was founded in 2004. Flatfix Fusion is a revolutionary lightweight flat roof mounting system that can be used for almost all flat roofs. Using ESDEC's calculation tool you can design your solar energy system within a few minutes or easily calculate and order the required materials.

Features of ESDEC FlatFix Fusion:
Specially developed features for higher returns
Calculation tool available via ESDEC platform
20 year manufacturer's warranty
Extensively tested material
Very simple implementation
