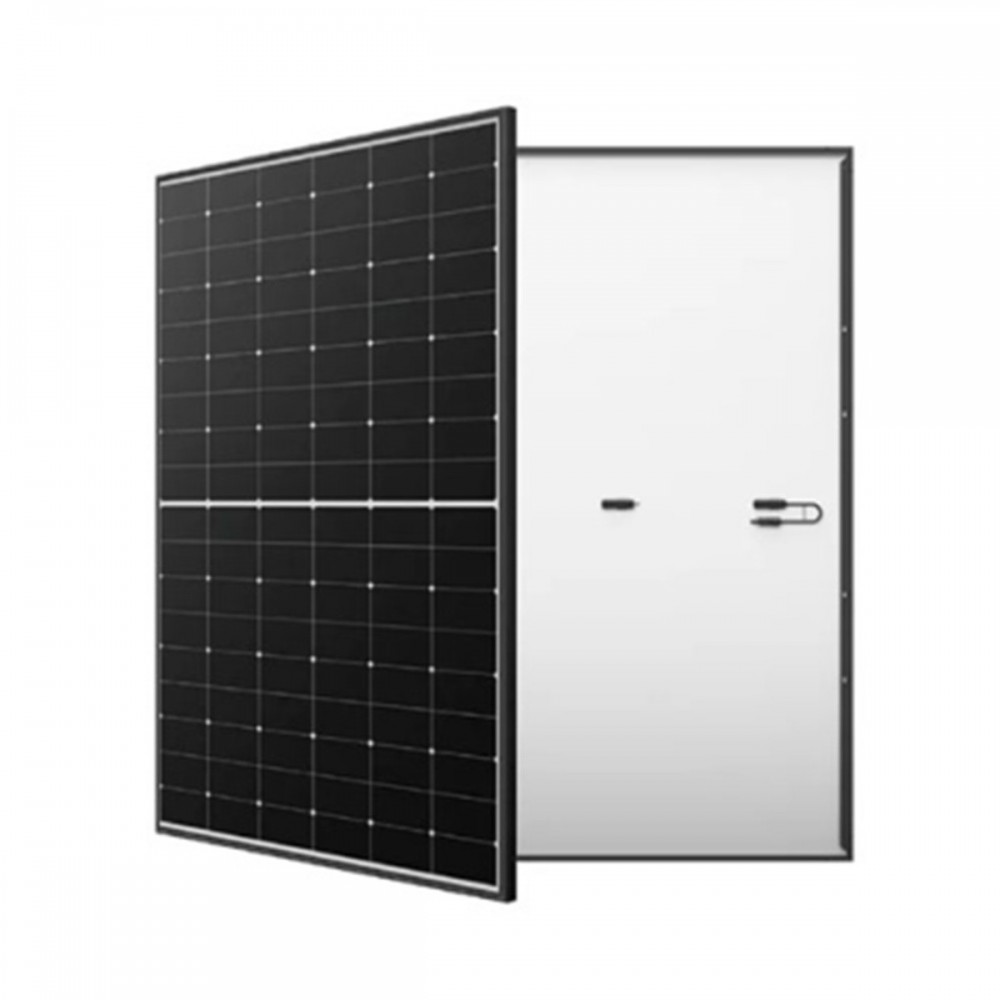

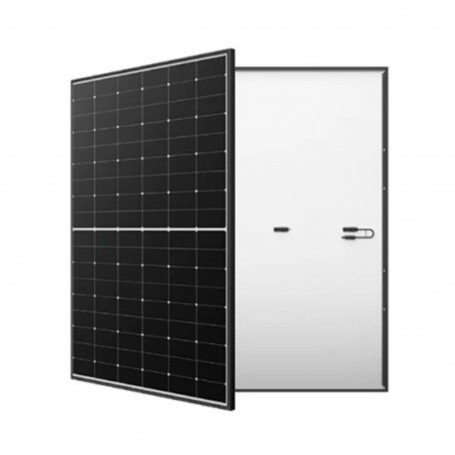

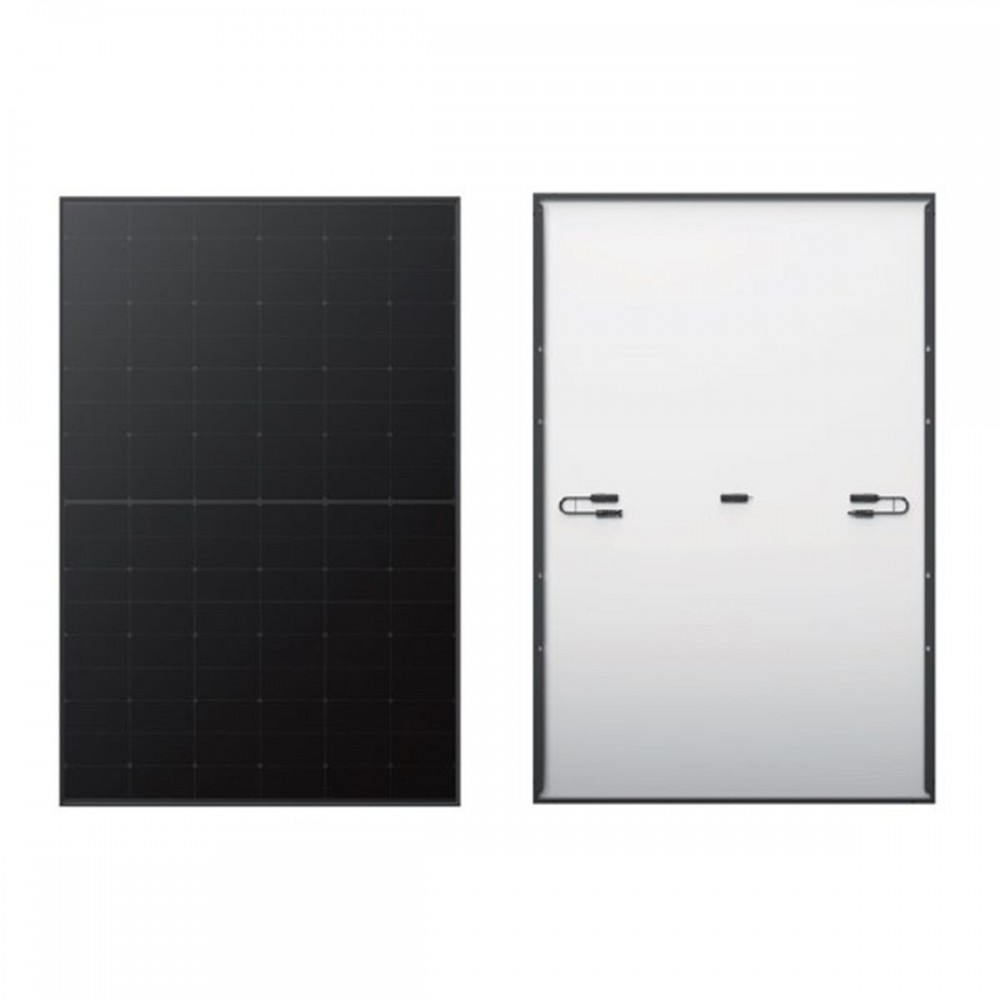

LONGi Solar 460W Hi-MoX6 MAX HPBC Mono Solar Module - Black Frame/White Backsheet

SL951

New

Download

Data sheet

Frame Black
Manufacturing number LR7-54HTH-460M
Solar Cells Monocrystalline
No. of cells 108
PMPP-Nominal Power (W) 460W
VMPP-Max-Power Voltage (V) 33.19
IMPP-Max-Power Current (A) 13.86
Voc-Open-Circuit Voltage (V) 39.35
Isc-Short-Circuit Current (A) 14.86
Efficiency 22.50%
Connectivity MC4
Junction Box Type IP68
Length (mm) 1800
Height (mm) 30
Width (mm) 1134
Product warranty 15 years
Product Workmanship Warranty 25 years
Power output warranty 25 years
Weight (g) 21600

More info

The LONGi Solar Hi-MO X6 Max Explorer HPBC Mono Solar Module - Black Frame/White Backsheet delivers high efficiency, durability, and reliable performance for commercial and residential solar installations. With advanced HPBC cell technology and a maximum module efficiency of 22.8% efficiency rating, it maximises energy yield, ensuring long-term power output backed by a 25-year linear performance warranty.

This solar module provides outstanding low-light performance and maintains high efficiency even in high-temperature environments. Featuring a low temperature coefficient (-0.280%/°C), it ensures consistent power output even in extreme weather conditions. The module also benefits from low degradation, with less than 1% power loss in the first year and only 0.40% annual degradation from years 2-25.

Built to Last: Strength & Durability
IP68-rated junction box for superior waterproofing
Robust anodised aluminium alloy frame for mechanical strength
Withstands 5400Pa front-side load (snow) and 2400Pa rear-side load (wind)
Proven hailstone resistance (25mm hailstones at 23m/s)

Seamless System Integration
Designed for commercial and residential installations, the LONGi Hi-MO X6 Max Explorer supports DC system voltages up to 1500V, reducing balance-of-system costs. MC4-compatible connectors provide easy and secure connections, streamlining the installation process.

Industry-Leading Warranty & Certifications
15-year product warranty covering materials and workmanship
25-year linear power output warranty ensuring long-term performance
